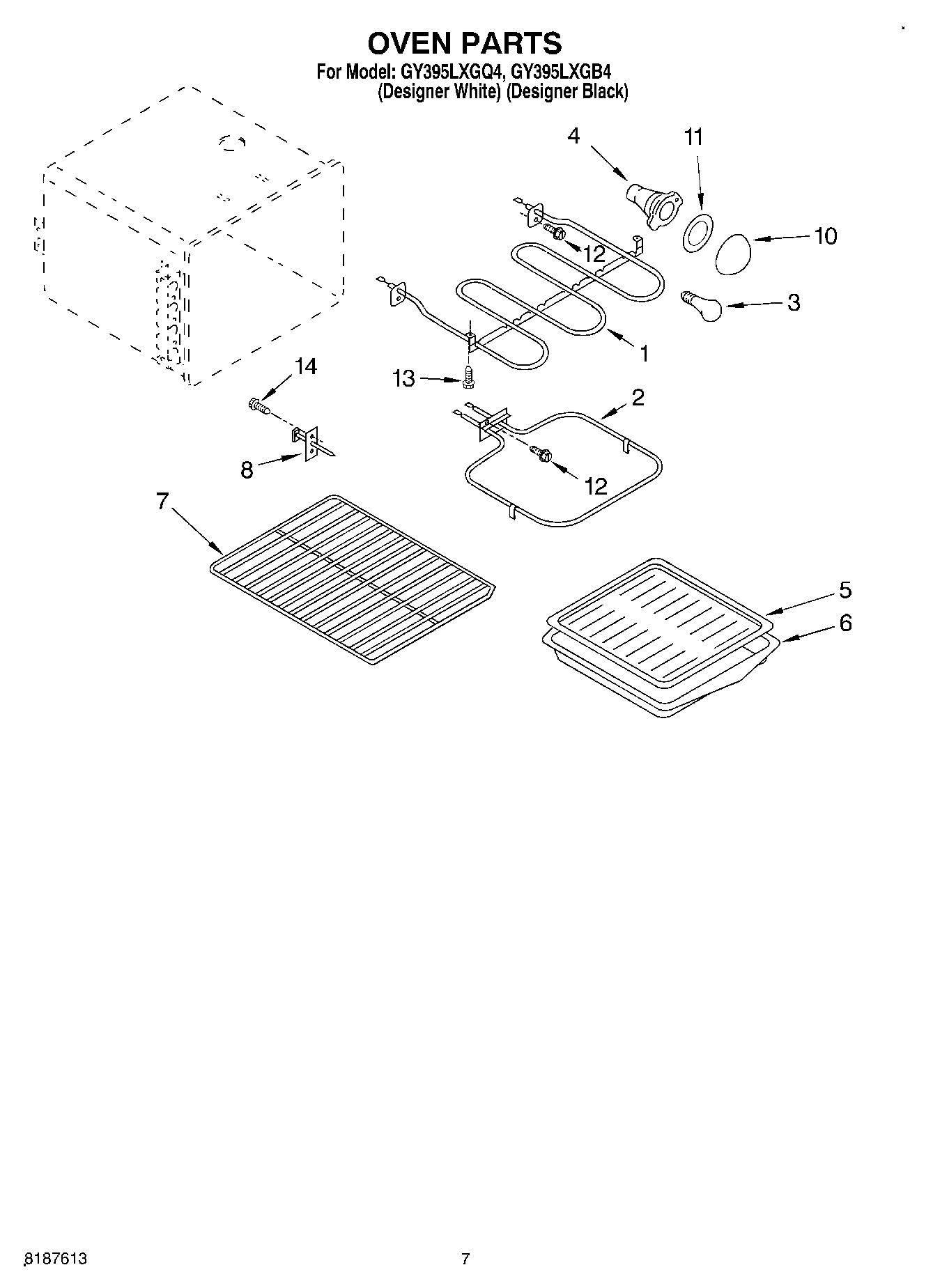

GY395LXGB4 05 – OVEN

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard
8	Sensor
10	WP9781049 Whirlpool Light Lens
11	WP3184533 Whirlpool Range Light Lens Gasket
13	340184 Whirlpool Screw
14	Wire (12 Ga. 150 c Black)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Green)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	WPL 9750744
14	WPL 9782124
14	WPL 9781845
14	WPL 9752886
14	Screw
14	WPL 9782111
14	Screw
14	WPL 9751868
14	Grease
14	8212471 Whirlpool Oven Paint
14	WPL 9781843
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	WPL 799832
14	511873 Whirlpool Refrigerator Paint
14	350942 Whirlpool Spray Paint
14	SCREW
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	350956 Whirlpool Spray Assembly
14	WPW10208653 Whirlpool Insulation
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	242831 Whirlpool Oven Wire
14	WP90016 Whirlpool Clip
14	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
14	8528351 Whirlpool Clip
14	285006 Whirlpool Spray
14	WPW10339879 Whirlpool Wire Tie
14	Wire, 25“ Roll (White 14 GA.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25` Roll (Black 14 Ga.)
14	350930 Whirlpool White Spray Paint
