GY395LXGQ2 02 – CONTROL PANEL
Written by
in

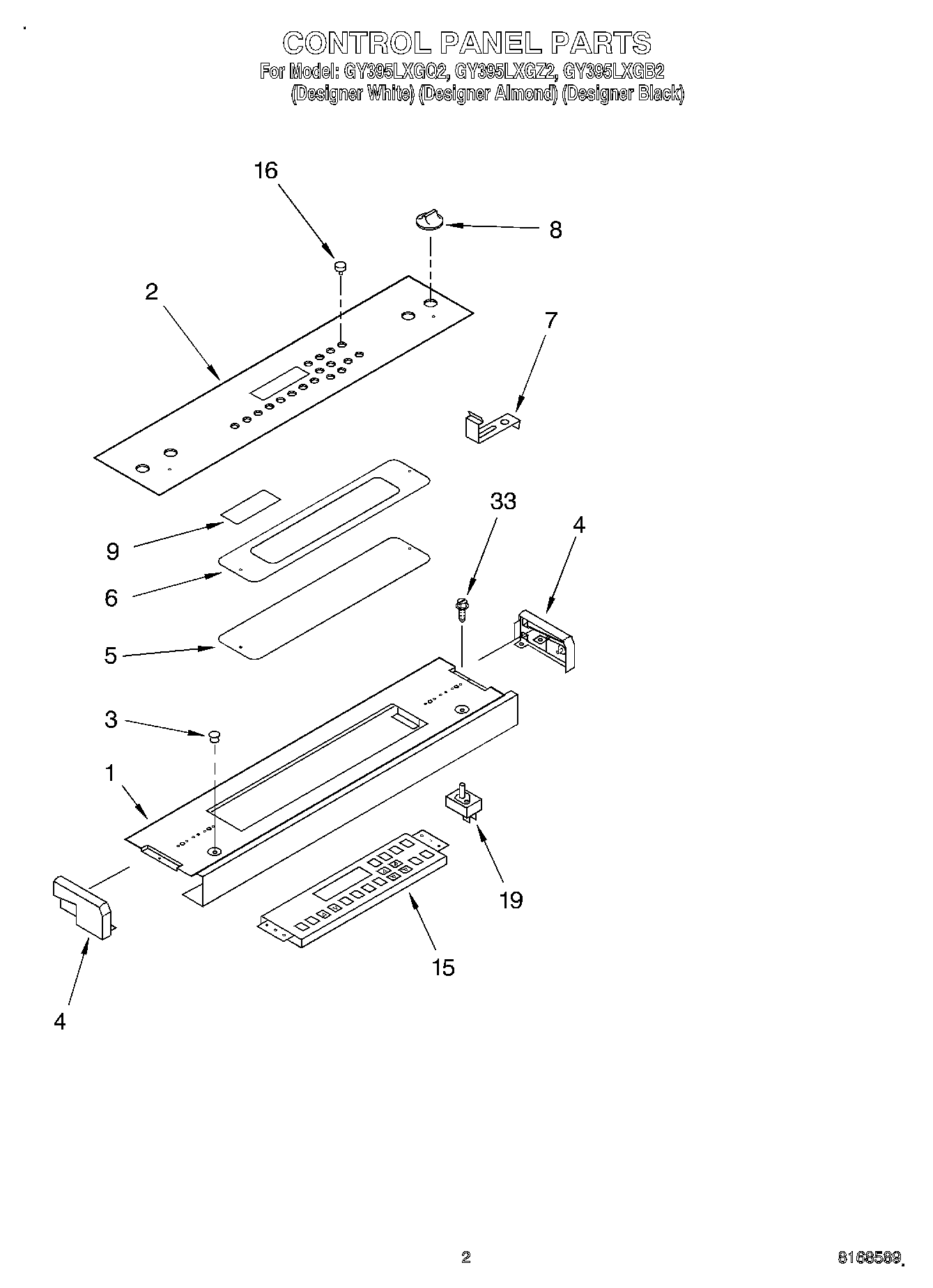

GY395LXGQ2 02 – CONTROL PANEL
Products
Position
Product
1
Panel, Control (Almond)
1
Panel, Control
1
Panel, Control (Black)
2
Glass-Console (White)
2
Glass-Console (Almond)
2
Glass-Console (Black)
3
Len`s Indicator (4)
4
814562 Whirlpool Oven Endcap Panel (Left & Right)
4
(End Cap Right) (Black)
4
End Cap Left (Black)
4
(End Cap Right) (Almond)
4
End Cap Left (Almond)
5
Gasket, Cover
6
Cover, Control
7
WP4159387 Whirlpool Compactor Screw
7
Clip, Glass (2)
8
Knobs, Control (4) (Almond)
8
Knobs, Control (4) (Black)
8
WP9752405FW Whirlpool Knob
9
Label-WPSI Control
15
Screw (4) 10 x 3/8
15
Control, Range
16
Knob, Timer (17) (White)
16
Knob, Timer (18) (Almond)
16
Knob, Timer (17) (Black)
19
WP9750643 Whirlpool Infinite Switch
19
WP9750646 Whirlpool Infinite Switch
33
WP9781235 Whirlpool Clip
33
WP3400882 Whirlpool Screw
←
