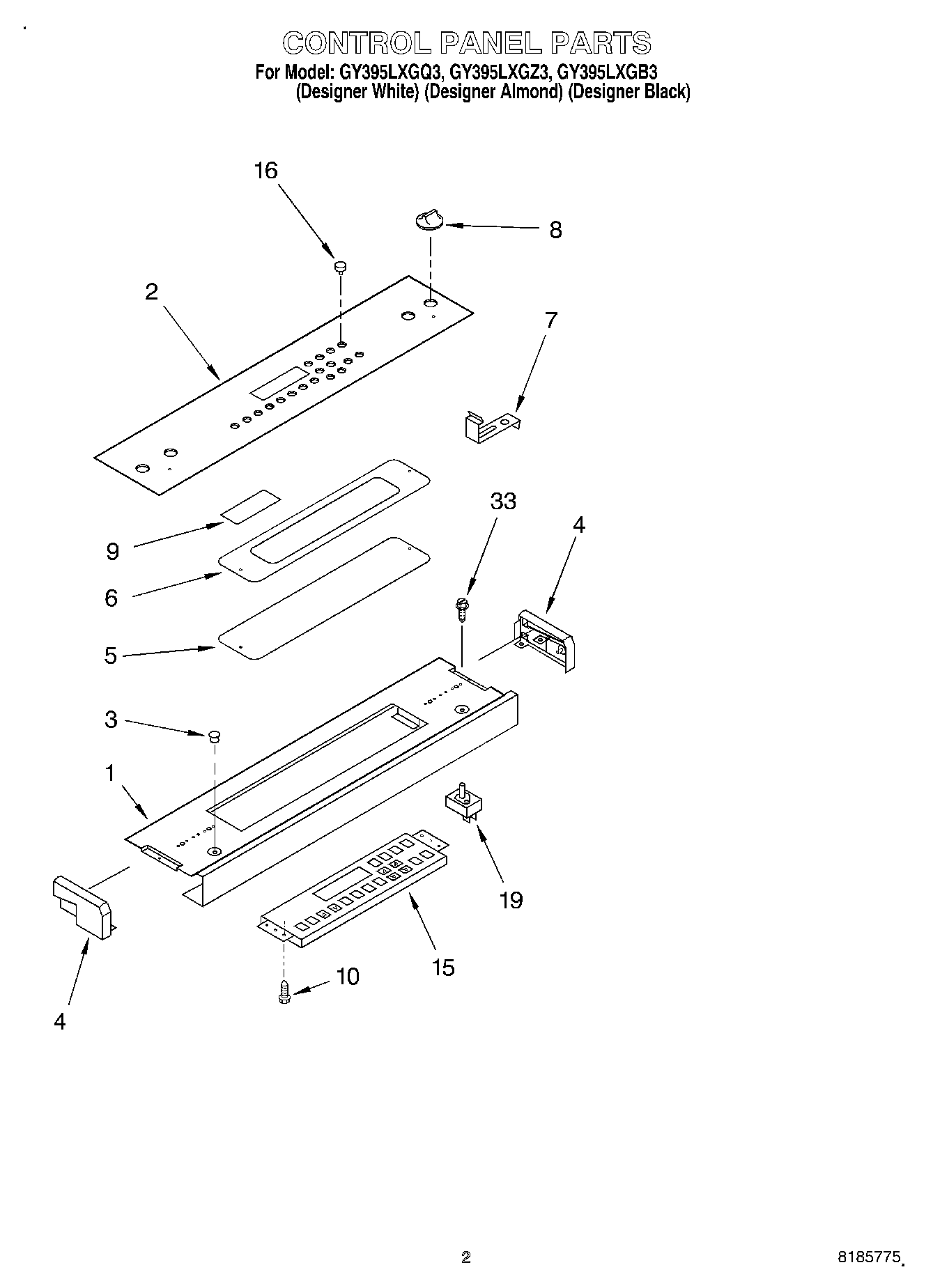

GY395LXGQ3 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
1	Panel, Control (Black)
1	Panel, Control (Almond)
2	Glass-Console (White)
2	Glass-Console (Black)
2	Glass-Console (Almond)
3	Len`s Indicator (4)
4	End Cap Left (Almond)
4	(End Cap Right) (Almond)
4	(End Cap Right) (Black)
4	WP4159387 Whirlpool Compactor Screw
4	814562 Whirlpool Oven Endcap Panel (Left & Right)
4	End Cap Left (Black)
5	Gasket, Cover
6	Cover, Control
7	Clip, Glass (2)
8	Knobs, Control (4) (Almond)
8	Knobs, Control (4) (Black)
8	WP9752405FW Whirlpool Knob
9	Label-WPSI Control
10	Screw
15	Screw (4) 10 x 3/8
15	Control, Range
16	Knob, Timer (17) (Black)
16	Knob, Timer (18) (Almond)
16	Knob, Timer (17) (White)
19	WP9750643 Whirlpool Infinite Switch
19	WP9750646 Whirlpool Infinite Switch
33	WP9781235 Whirlpool Clip
33	WP3400882 Whirlpool Screw
