GY395LXGQ3 05 – OVEN, OPTIONAL
Written by
in

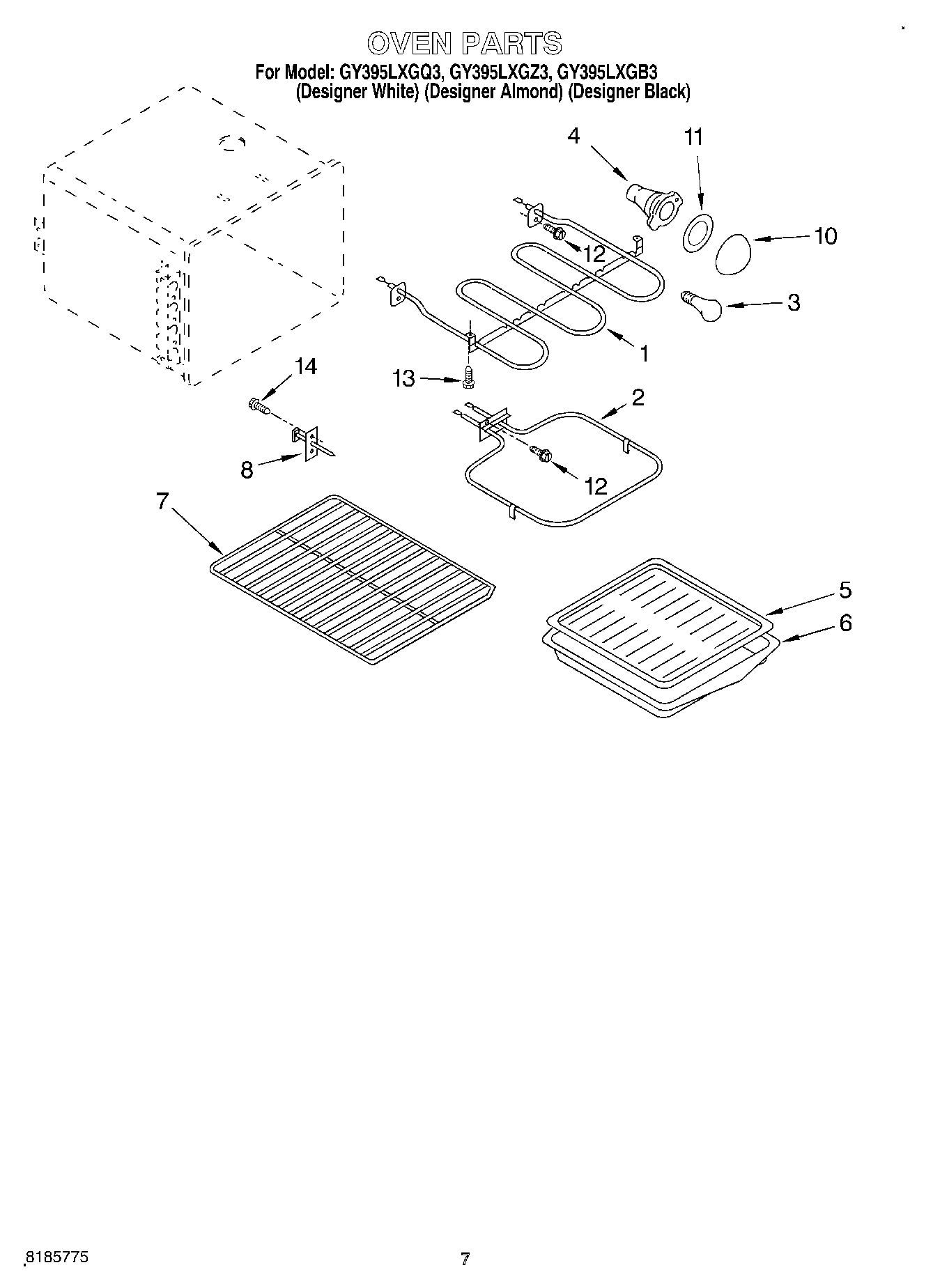

GY395LXGQ3 05 – OVEN, OPTIONAL
Products
Position
Product
1
Element, Broil
2
ELMNT-BAKE
3
RANGE ONLY 40W 120V APPL BULB
4
W11594027 Whirlpool Range Oven Light Socket
6
4396923 Whirlpool Broil Pan Set Gray Porcelain
7
Rack, Standard
8
Sensor
10
WP9781049 Whirlpool Light Lens
11
WP3184533 Whirlpool Range Light Lens Gasket
13
340184 Whirlpool Screw
14
1
14
Wire (14 Ga. 150 c Yellow)
14
Wire (14 Ga. 200 c Brown)
14
Wire (14 Ga. 150 c Orange)
14
18 Ga. 80~c Rating (Red)
14
Wire (12 Ga. 150 c Black)
14
WPL 9750744
14
Screw
14
8212471 Whirlpool Oven Paint
14
WPL 9753267PT
14
WPL 9753267PB
14
WPL 9781845
14
WPL 9753757
14
WPL 9753267PW
14
WPL 9752886
14
Screw
14
WPL 9782111
14
WPL 9751868
14
Grease
14
WPL 9781843
14
Wire (14 Ga. 150 c Green)
14
Wire (14 Ga. 150 c Brown)
14
WPW10208653 Whirlpool Insulation
14
WPL 799832
14
511873 Whirlpool Refrigerator Paint
14
350942 Whirlpool Spray Paint
14
SCREW
14
Almond (Uncut)
14
WP72107 Whirlpool Touchup
14
799344 Whirlpool Refrigerator Paint
14
72017 Whirlpool Appliance Touch-Up Paint White
14
350956 Whirlpool Spray Assembly
14
FOIL, ALUMINUM OVEN (18“ X 25 )
14
Wire, 25` Roll (Black 14 Ga.)
14
Wire (14 Ga. 150 c Blue)
14
242831 Whirlpool Oven Wire
14
WP90016 Whirlpool Clip
14
WPL 9751745
14
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
14
8528351 Whirlpool Clip
14
285006 Whirlpool Spray
14
WPW10339879 Whirlpool Wire Tie
14
Wire, 25“ Roll (White 14 GA.)
14
Wire, 25` Roll (Red 14 Ga.)
14
350930 Whirlpool White Spray Paint
←
