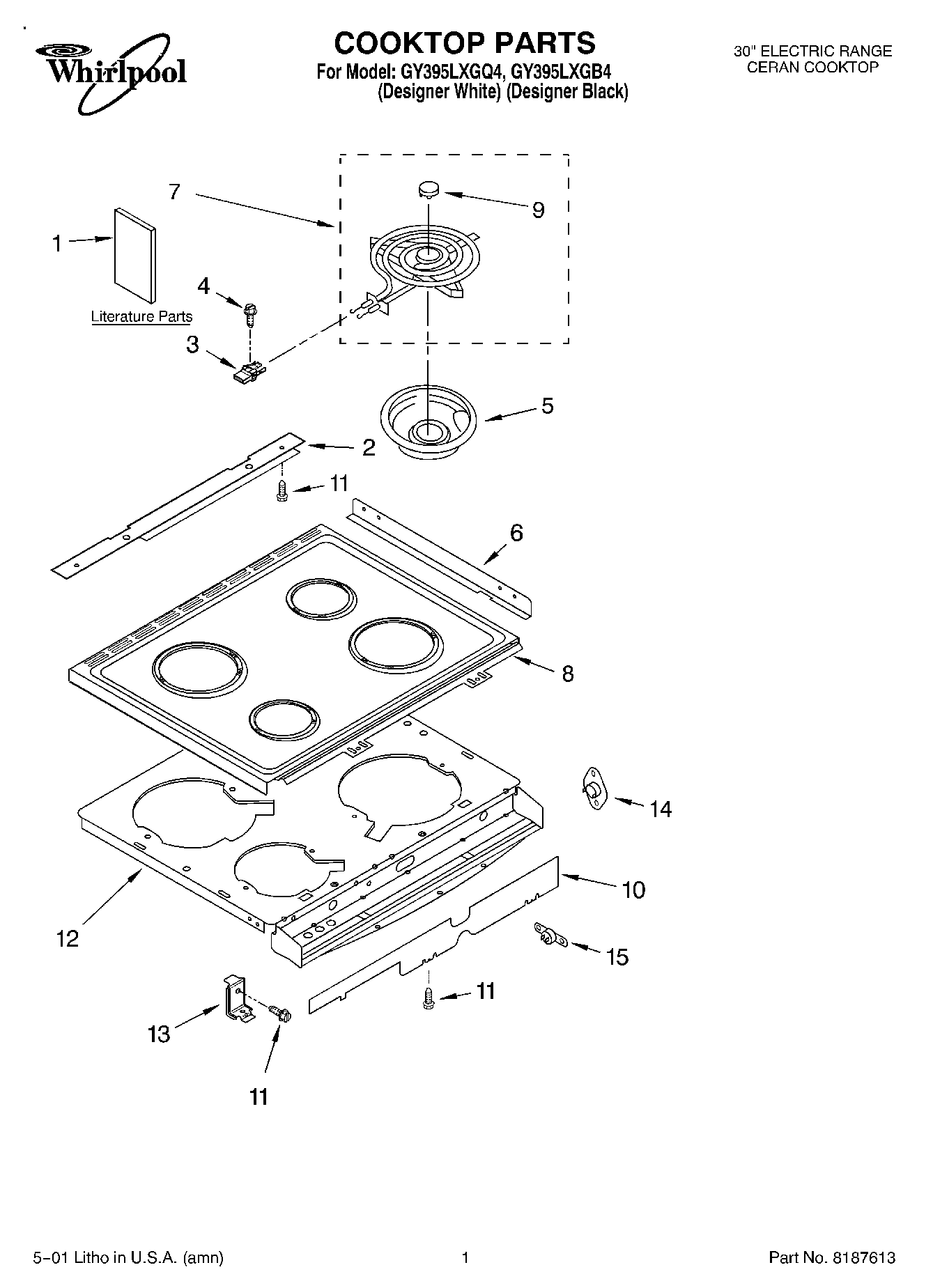

GY395LXGQ4 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Template, Anti-Tip)
1	Literature Parts (Back Cover Install Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Trim, Rear
3	Receptacle, Clip
4	WP313808 Whirlpool Screw
5	WPW10290350 Whirlpool Stove Drip Bowl
5	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6	Trim, Side (2)
7	Element, Surface (Coil 8“ RF-LR)
7	Element, Surface (Coil, 6“ RF)
7	Element, Surface (Coil, 6“ LR (Accu Simmer))
8	Cooktop, Coil
8	Cooktop, Coil (Black)
9	Medallion, (4)
9	Medallion, (1) (Accu-Simmer)
10	Shield, Cover
11	WP4159387 Whirlpool Compactor Screw
12	Support, Cooktop
13	Washer, Pivot
13	Bracket, Pivot
14	WP9759944 Whirlpool Thermostat
15	Thermostat SPST (205)
