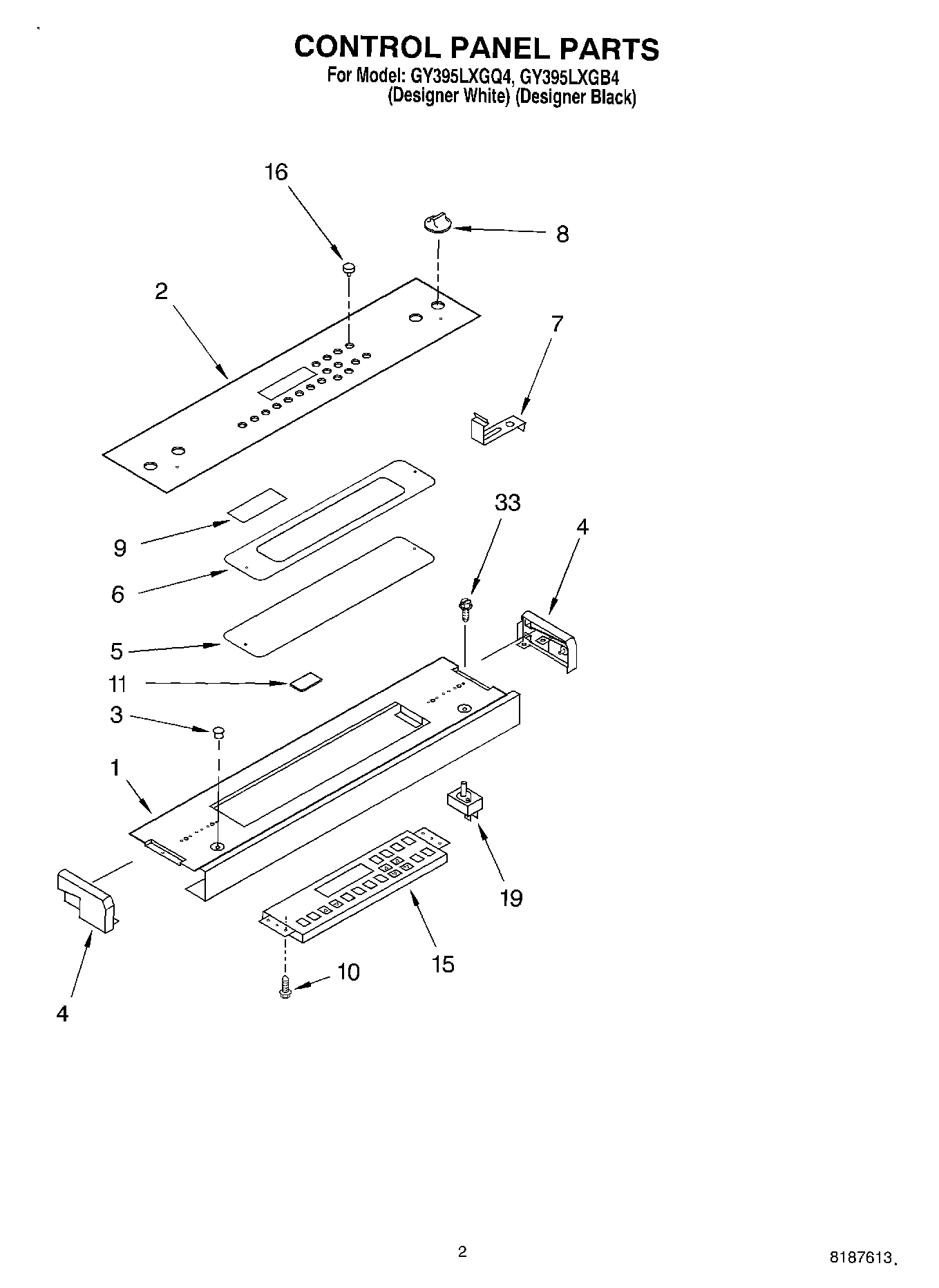

GY395LXGQ4 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
1	Panel, Control (Black)
2	Glass-Console (Black)
2	Glass-Console (White)
3	Len`s Indicator (4)
4	WP4159387 Whirlpool Compactor Screw
4	End Cap Left (Black)
4	(End Cap Right) (Black)
4	814562 Whirlpool Oven Endcap Panel (Left & Right)
5	Gasket, Cover
6	Cover, Control
7	Clip, Glass (2)
8	Knobs, Control (4) (Black)
8	WP9752405FW Whirlpool Knob
9	Label-WPSI Control
10	Screw
11	Vent, Door (Seal, Door Vent Side)
15	Control, Range
15	Screw (4) 10 x 3/8
16	Knob, Timer (17) (White)
16	Knob, Timer (17) (Black)
19	WP9750643 Whirlpool Infinite Switch
19	WP9750646 Whirlpool Infinite Switch
33	WP3400882 Whirlpool Screw
