GY395LXGZ2 02 – CONTROL PANEL

GY395LXGZ2 02 – CONTROL PANEL

Written by

in

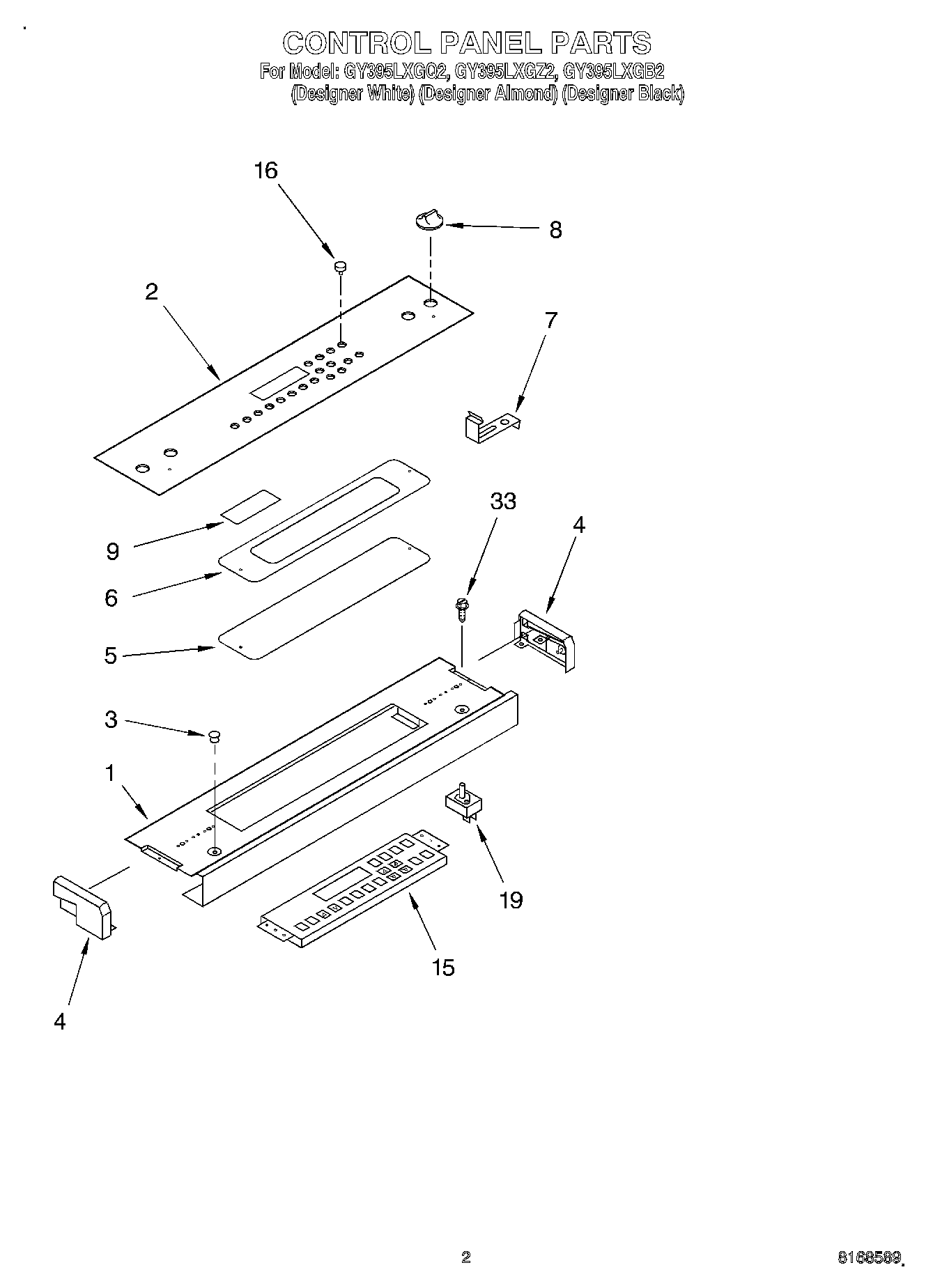

GY395LXGZ2 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Almond)
1Panel, Control
1Panel, Control (Black)
2Glass-Console (White)
2Glass-Console (Almond)
2Glass-Console (Black)
3Len`s Indicator (4)
4814562 Whirlpool Oven Endcap Panel (Left & Right)
4(End Cap Right) (Black)
4End Cap Left (Black)
4(End Cap Right) (Almond)
4End Cap Left (Almond)
5Gasket, Cover
6Cover, Control
7WP4159387 Whirlpool Compactor Screw
7Clip, Glass (2)
8Knobs, Control (4) (Almond)
8Knobs, Control (4) (Black)
8WP9752405FW Whirlpool Knob
9Label-WPSI Control
15Screw (4) 10 x 3/8
15Control, Range
16Knob, Timer (17) (White)
16Knob, Timer (18) (Almond)
16Knob, Timer (17) (Black)
19WP9750643 Whirlpool Infinite Switch
19WP9750646 Whirlpool Infinite Switch
33WP9781235 Whirlpool Clip
33WP3400882 Whirlpool Screw
