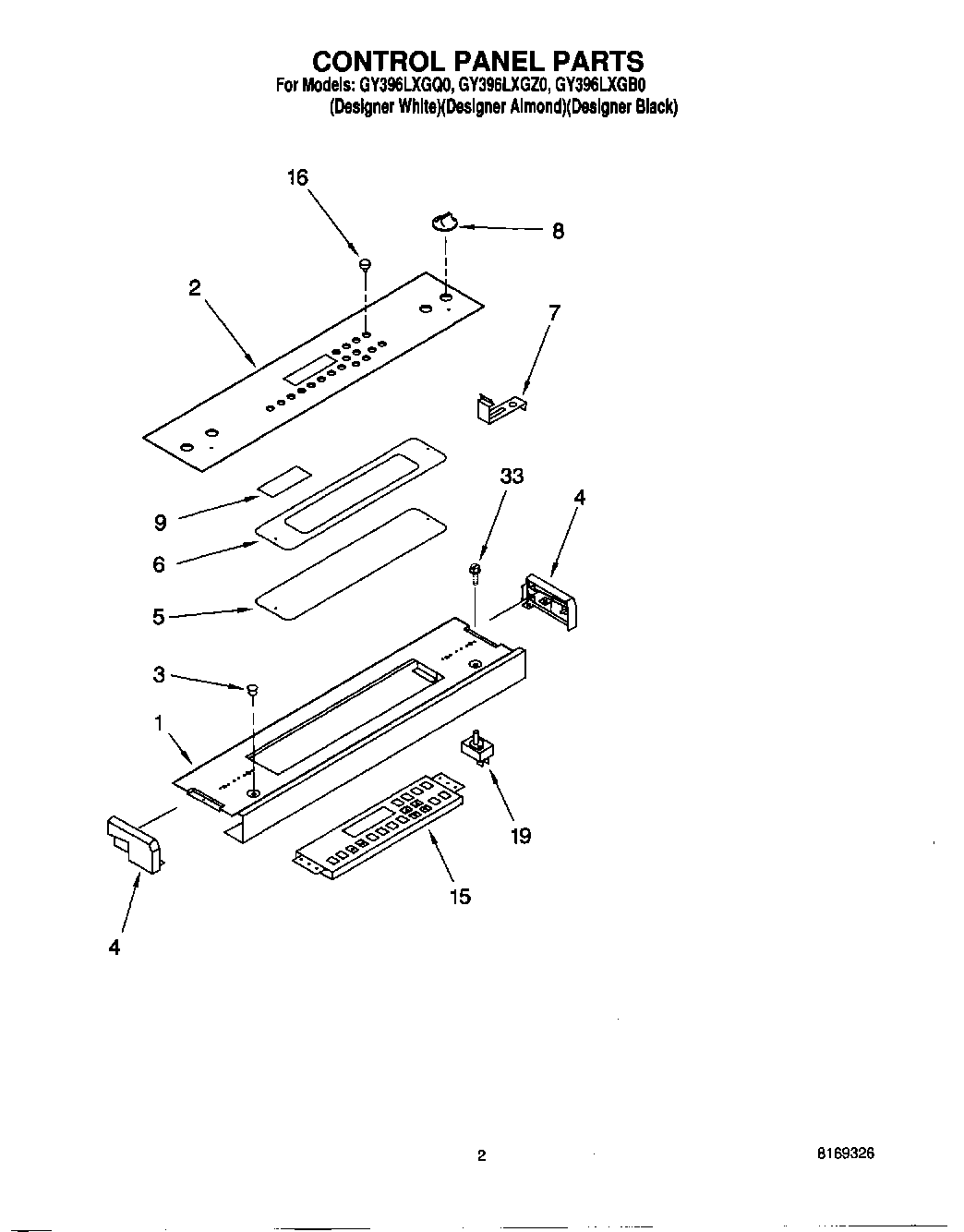

GY396LXGB0 02 – CONTROL PANEL

GY396LXGB0 02 – CONTROL PANEL

Written by

in

GY396LXGB0 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Black)
1Panel, Control
1Panel, Control (Almond)
2Glass-Console (Black)
2Glass-Console (Almond)
2Glass-Console (White)
3Len`s Indicator (4)
4End Cap Left (Black)
4End Cap Left (Almond)
4(End Cap Right) (Black)
4(End Cap Right) (Almond)
4814562 Whirlpool Oven Endcap Panel (Left & Right)
5Gasket, Cover
6Cover, Control
7WP4159387 Whirlpool Compactor Screw
7Clip, Glass (2)
8Knobs, Control (4) (Almond)
8Knobs, Control (4) (Black)
8WP9752405FW Whirlpool Knob
9Label-WPSI Control
15Control, Range
15Screw (4) 10 x 3/8
16Knob, Timer (18) (White)
16Knob, Timer (18) (Almond)
16Knob, Timer (18) (Black)
19WP9750643 Whirlpool Infinite Switch
19WP9750646 Whirlpool Infinite Switch
19Infinite Switch (1800W)
33WP3400882 Whirlpool Screw
