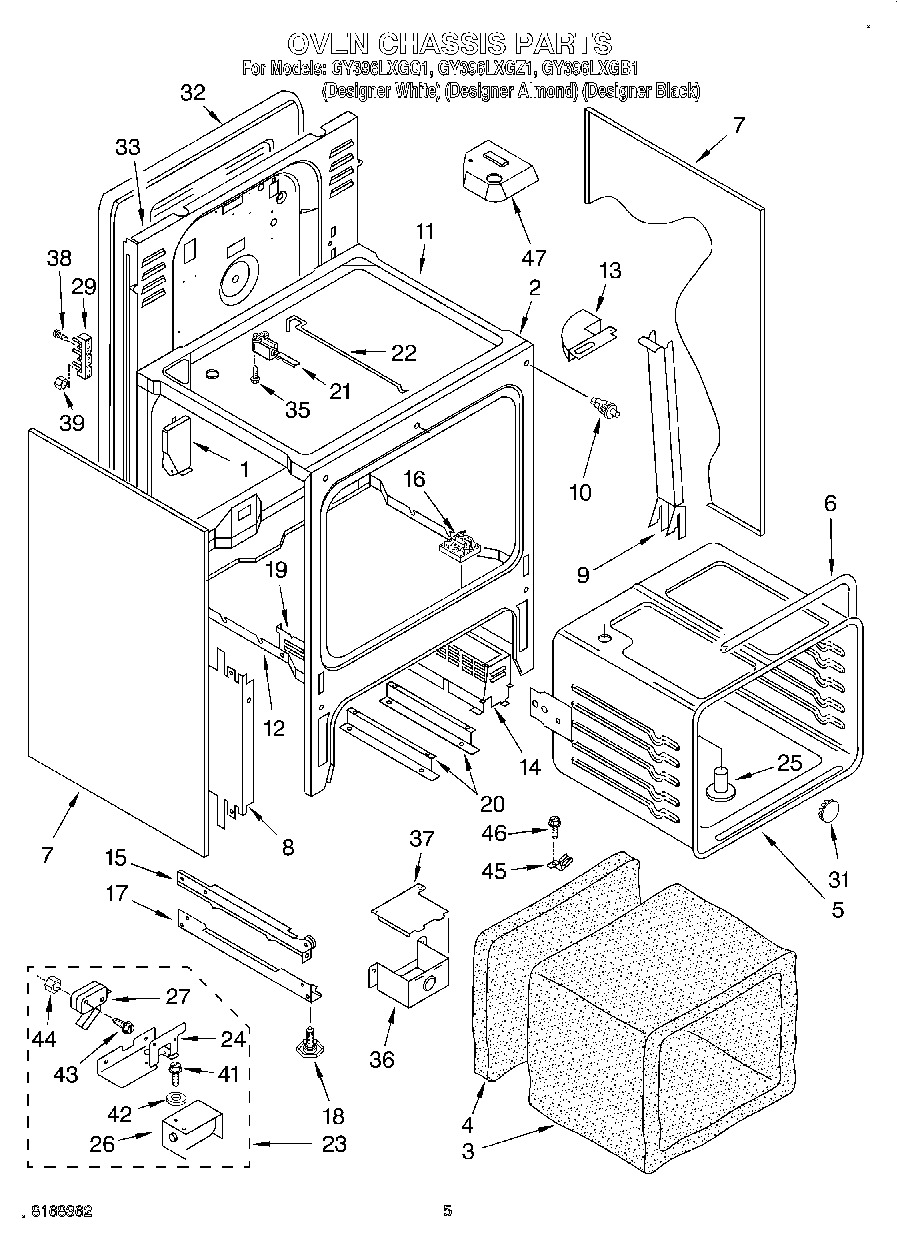

GY396LXGB1 04 – OVEN CHASSIS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Oven , Side L or R (Black)
7	Oven , Side L or R (White)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
9	Duct, Side Fan
10	Door Switch (Oven Light)
11	Screw, (2)
11	Burner Box
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
16	Screw, (3) No.8 x 1``
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
19	Screw (4) 10 x 1/2
20	Support Rail, Pan
21	Single Position Device (Not Serviced)
22	Rod, Lock
23	Oven Lock Assembly (Includes No.21)
24	Bracket, Lock
25	Vent Tube
26	Solenoid
27	Switch, Interlock
29	WP8203546 Whirlpool Terminal Block
31	Button, Plug
32	Panel, Rear Cover
33	Back panel, Chassis
35	WP4159387 Whirlpool Compactor Screw
36	WPL 9752344
37	Cover, Terminal Box
38	Screw, (2) 10-16 x 1
39	WP112432 Whirlpool Nut Assembly
41	Screw (2) 10-32 x 5/16
42	Washer (2)
43	Screw, (2)
44	Nut (2)
45	Ground Strap
45	Clip, Ground Wire
46	SCREW
47	340184 Whirlpool Screw
47	Block, Balance
