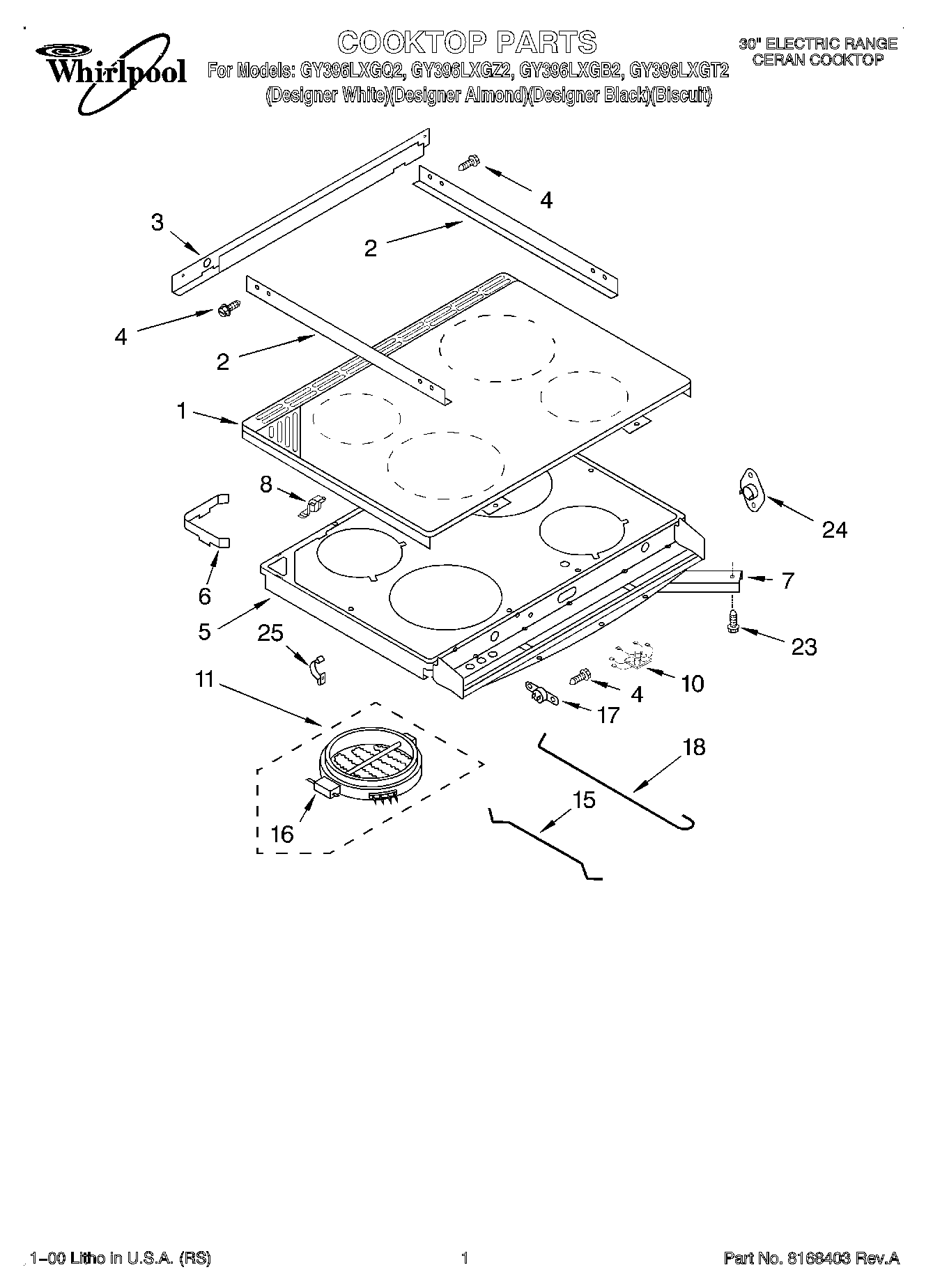

GY396LXGB2 01 – COOKTOP

GY396LXGB2 01 – COOKTOP

Written by

in

GY396LXGB2 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Biscuit)
1Cooktop, Ceran (Almond)
1Cooktop, Ceran (White)
1Cooktop, Ceran (Black)
2Trim, Side (2)
3Trim, Rear
4WP4159387 Whirlpool Compactor Screw
5Support, Element
6Sleeve, Vent
7Brace, Support
8Bracket, Pivot
8Washer, Pivot
10Hot Light
11Element, Surface (2200W – RR)
112500W – RR
11W10823698 Whirlpool Surface Element Right Rear
11W10823699 Whirlpool Right Front Surface Element
15Rod, Small Ceran Element
16Limiter, Temp. (LR-RF-RR)
17Thermostat SPST (205)
18Rod, Large Ceran Element
23Screw (4) 10 x 1/2
24WP9759944 Whirlpool Thermostat
258528351 Whirlpool Clip
