GY396LXGB2 05 – OVEN

GY396LXGB2 05 – OVEN

Written by

in

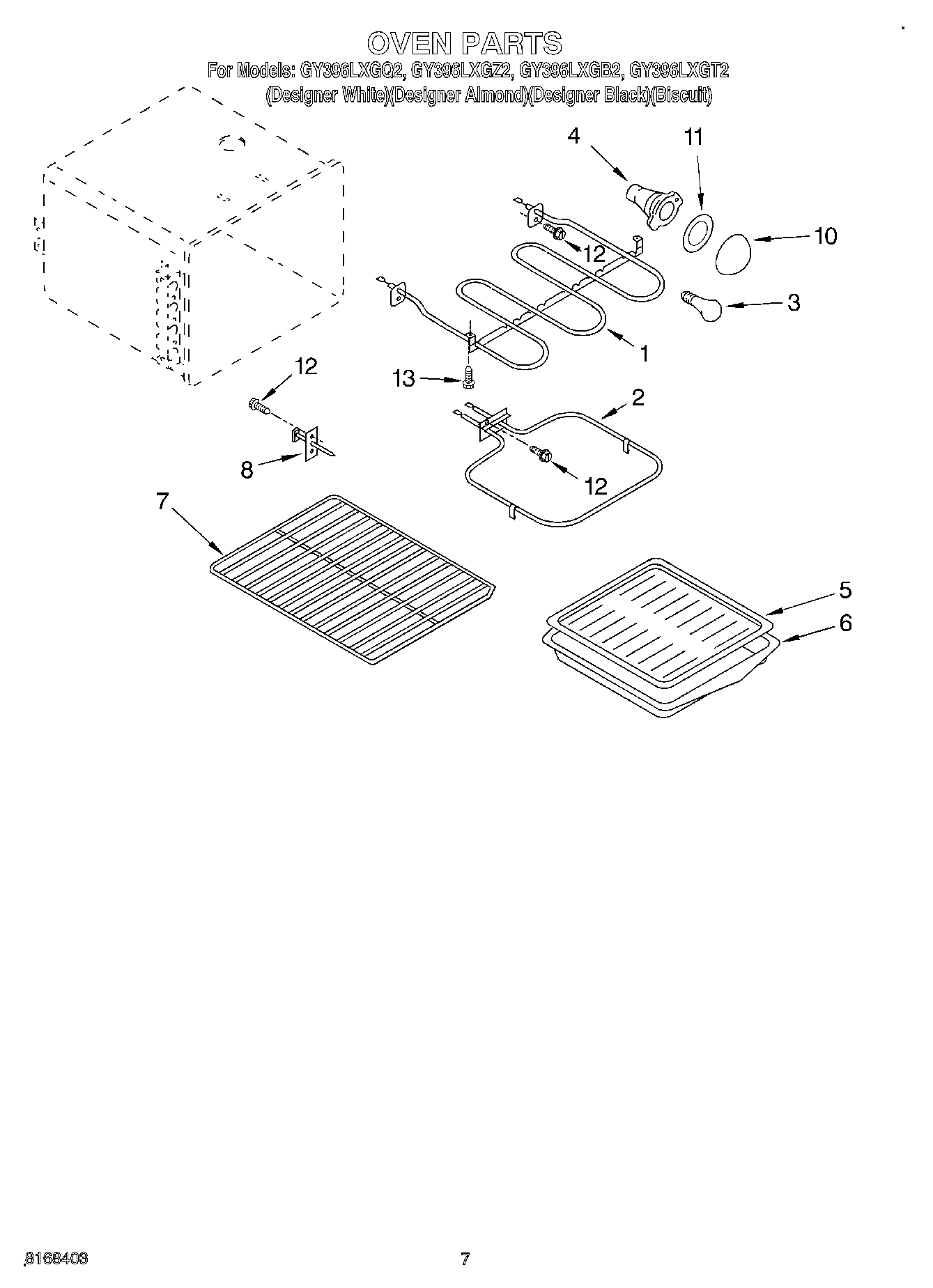

GY396LXGB2 05 – OVEN

Products

Position	Product
	Washer (2)
	Literature Parts (Template, Anti-Tip)
	Literature Parts (Back Cover Install Instructions)
	Literature Parts (Use & Care Guide)
	WPW10339879 Whirlpool Wire Tie
	WPL 9781767
	WPL 9751868
	WPL 9781823
	WPL 9750744
	WPL 9751745
	WPL 9753757
	WPL 9781845
	Safer Cooking Tips
	Literature Parts (Tech Sheet)
	SCREW
	Literature Parts (Installation Instructions)
	WPL 9753267PC
	Literature Parts (Wiring Diagram)
	WPL 9753267PT
	WPL 9753267PB
	WPL 9753267PW
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard
8	Sensor
10	WP9781049 Whirlpool Light Lens
11	WP3184533 Whirlpool Range Light Lens Gasket
12	Screw
13	1
13	Wire (14 Ga. 150 c Orange)
13	350930 Whirlpool White Spray Paint
13	340184 Whirlpool Screw
13	Grease
13	Wire (14 Ga. 150 c Yellow)
13	8212471 Whirlpool Oven Paint
13	Wire (12 Ga. 150 c Black)
13	18 Ga. 80~c Rating (Red)
13	Wire (14 Ga. 200 c Brown)
13	Wire (14 Ga. 150 c Green)
13	Wire (14 Ga. 150 c Brown)
13	Wire (14 Ga. 150 c Blue)
13	WPL 72112
13	Platinum (Uncut)
13	Enamal, Toast (1 Qt. Uncut)
13	Paint, Spray (13 Oz.) (Platinum)
13	Toast
13	Golden Harvest (Uncut)
13	Golden Harvest
13	72113 Whirlpool Touch-Up Paint
13	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
13	Almond (Uncut)
13	WP72107 Whirlpool Touchup
13	799344 Whirlpool Refrigerator Paint
13	72017 Whirlpool Appliance Touch-Up Paint White
13	350942 Whirlpool Spray Paint
13	511873 Whirlpool Refrigerator Paint
13	242831 Whirlpool Oven Wire
13	285006 Whirlpool Spray
13	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
13	Paint, Spray 13 Oz. (Avocado)
13	paint, spray 13 oz. (coffee)
13	Paint, Touch-Up 1/2 Oz. (Coffee)
13	72109 Whirlpool Dacor Avocado Touch-Up Paint
13	Wire, 25“ Roll (White 14 GA.)
13	Wire, 25` Roll (Red 14 Ga.)
13	Wire, 25` Roll (Black 14 Ga.)
13	FOIL, ALUMINUM OVEN (18“ X 25 )
13	WPW10208653 Whirlpool Insulation
13	WPL 799832
13	350956 Whirlpool Spray Assembly
