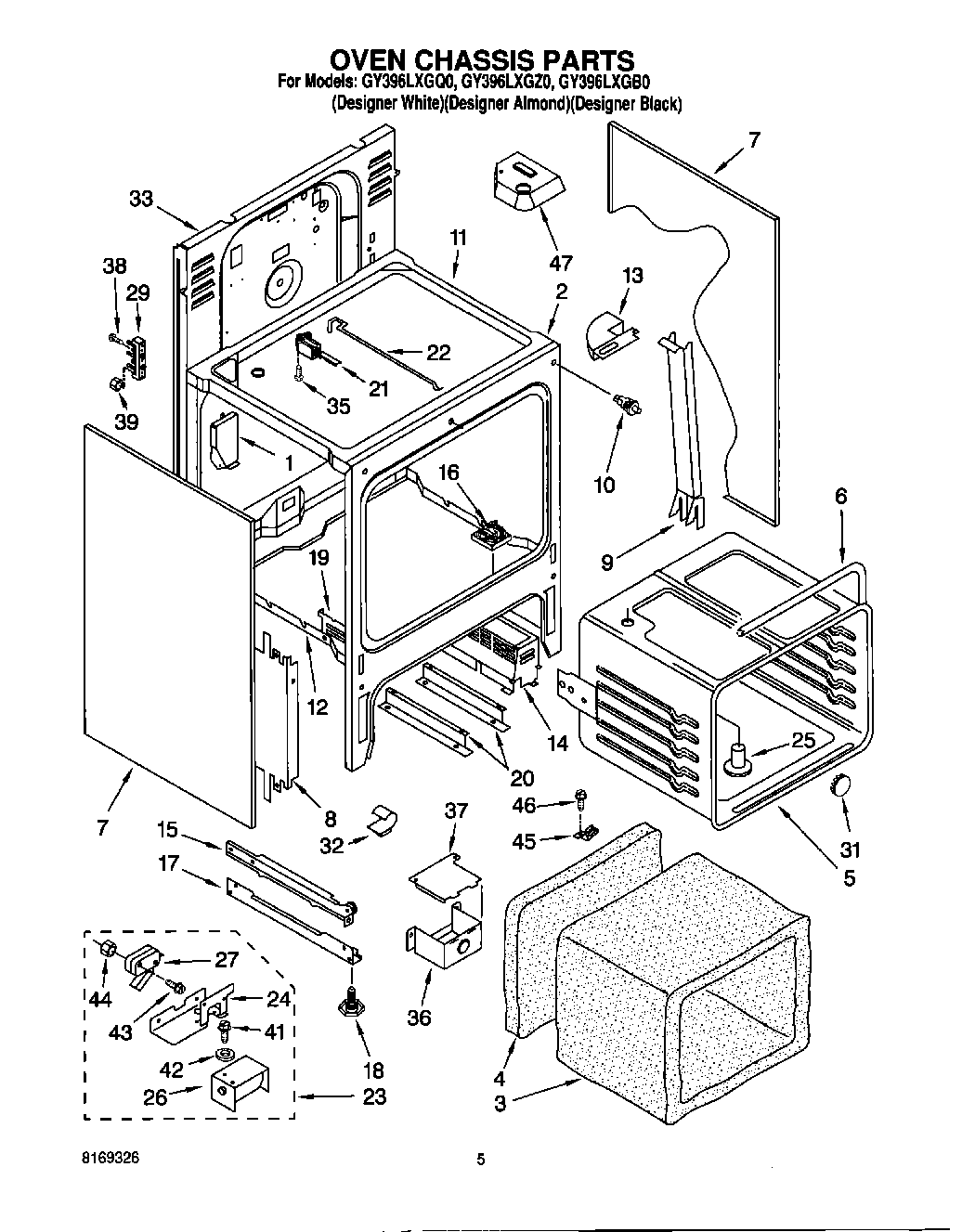

GY396LXGQ0 04 – OVEN CHASSIS
Written by
in
GY396LXGQ0 04 – OVEN CHASSIS
Products
Position
Product
1
Vent Box, Oven
2
Chassis, Front
3
Insulation, Wrap
4
Insulation, Rear
5
Oven Liner
6
Gasket, Oven
7
Oven , Side L or R (Almond)
7
Oven , Side L or R (Black)
7
Oven , Side L or R (White)
8
Shield, Insulation
9
Duct, Side Fan
10
Door Switch (Oven Light)
11
Burner Box
11
Screw, (2)
12
Oven Bottom
13
Duct, Top
14
Support, Fan
15
Drawer Rail, Left
15
Rail, Drawer (Right)
16
Screw, (3) No.8 x 1“
16
Motor, Fan
17
Bottom Rail (2)
18
WPW10058460 Whirlpool Appliance Levelling Leg
19
Screw (4) 10 x 1/2
19
Hinge, Receiver (2)
20
Support Rail, Pan
21
Single Position Device (Not Serviced)
22
Rod, Lock
23
Oven Lock Assembly (Includes No.21)
24
Bracket, Lock
25
Vent Tube
26
Solenoid
27
Switch, Interlock
29
WP8203546 Whirlpool Terminal Block
31
Button, Plug
32
Clip, Wire
33
Back panel, Chassis
35
WP4159387 Whirlpool Compactor Screw
36
WPL 9752344
37
Cover, Terminal Box
38
Screw, (2) 10-16 x 1
39
WP112432 Whirlpool Nut Assembly
41
Screw (2) 10-32 x 5/16
42
Washer (2)
43
Screw, (2)
44
Nut (2)
45
Clip, Ground Wire
45
Ground Strap
46
SCREW
47
Block, Balance
47
340184 Whirlpool Screw
←
