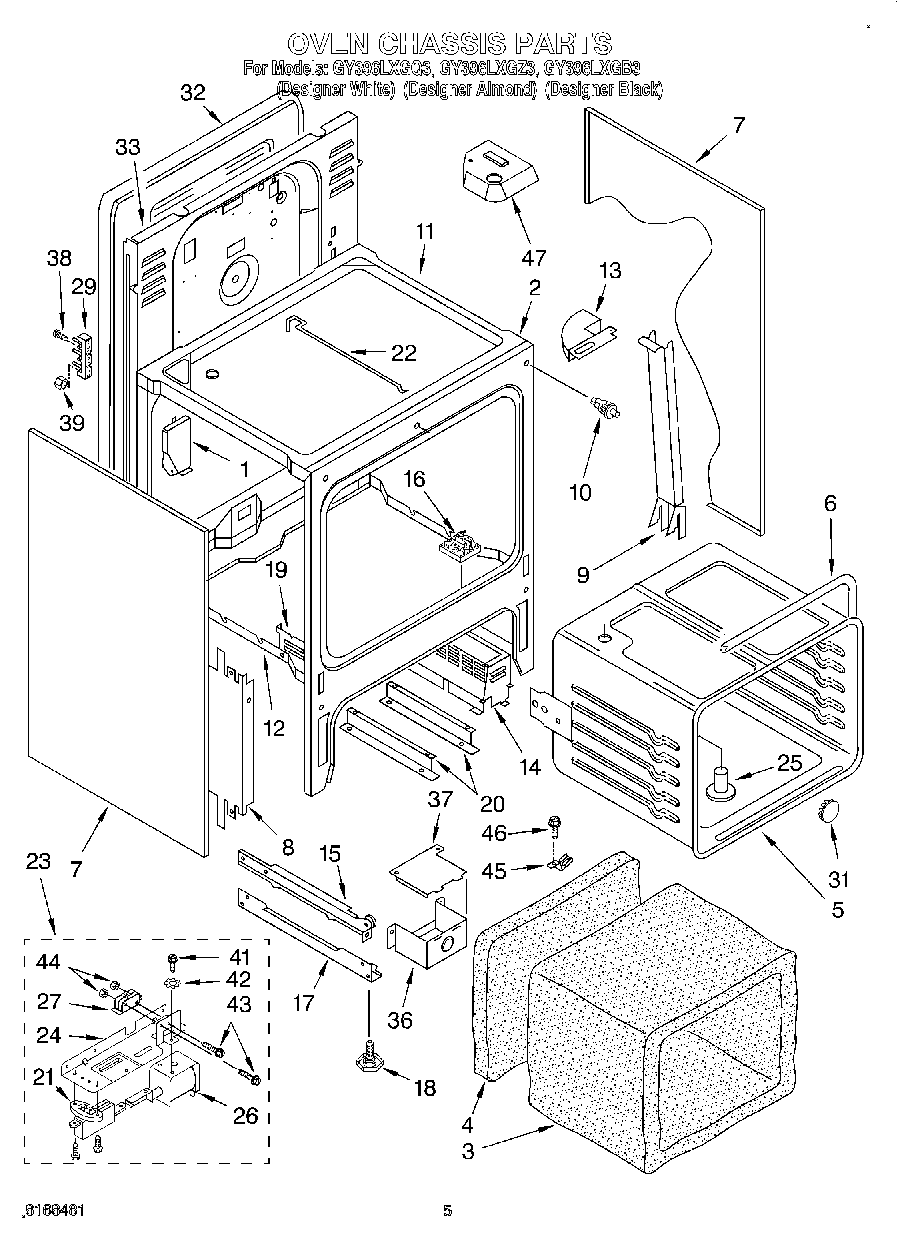

GY396LXGQ3 04 – OVEN CHASSIS

Products

Position	Product
NI	WP4159387 Whirlpool Compactor Screw
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
7	Body, Side (White)
7	Oven, Side L or R (Almond)
8	Shield, Insulation
9	Duct, Side Fan
10	Door Switch (Oven Light)
11	Burner Box
11	Screw, (2)
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Screw, (3) No.8 x 1``
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
19	Screw (4) 10 x 1/2
20	Support Rail
21	Single Position Device (Not Serviced)
22	Rod, Lock
23	Oven Lock Assembly (Includes No.21)
24	Bracket, Lock
25	Vent Tube
26	Solenoid
27	Switch, Interlock
29	WP8203546 Whirlpool Terminal Block
31	Button, Plug
32	Panel, Rear Cover
33	Back panel, Chassis
36	WPL 9752344
37	Cover, Terminal Box
38	Screw, (2) 10-16 x 1
39	WP112432 Whirlpool Nut Assembly
41	Screw (2) 10-32 x 5/16
42	Washer (2)
43	Screw, (2)
44	Nut (2)
45	Clip, Ground Wire
45	Ground Strap
46	SCREW
47	Block, Balance
47	340184 Whirlpool Screw
