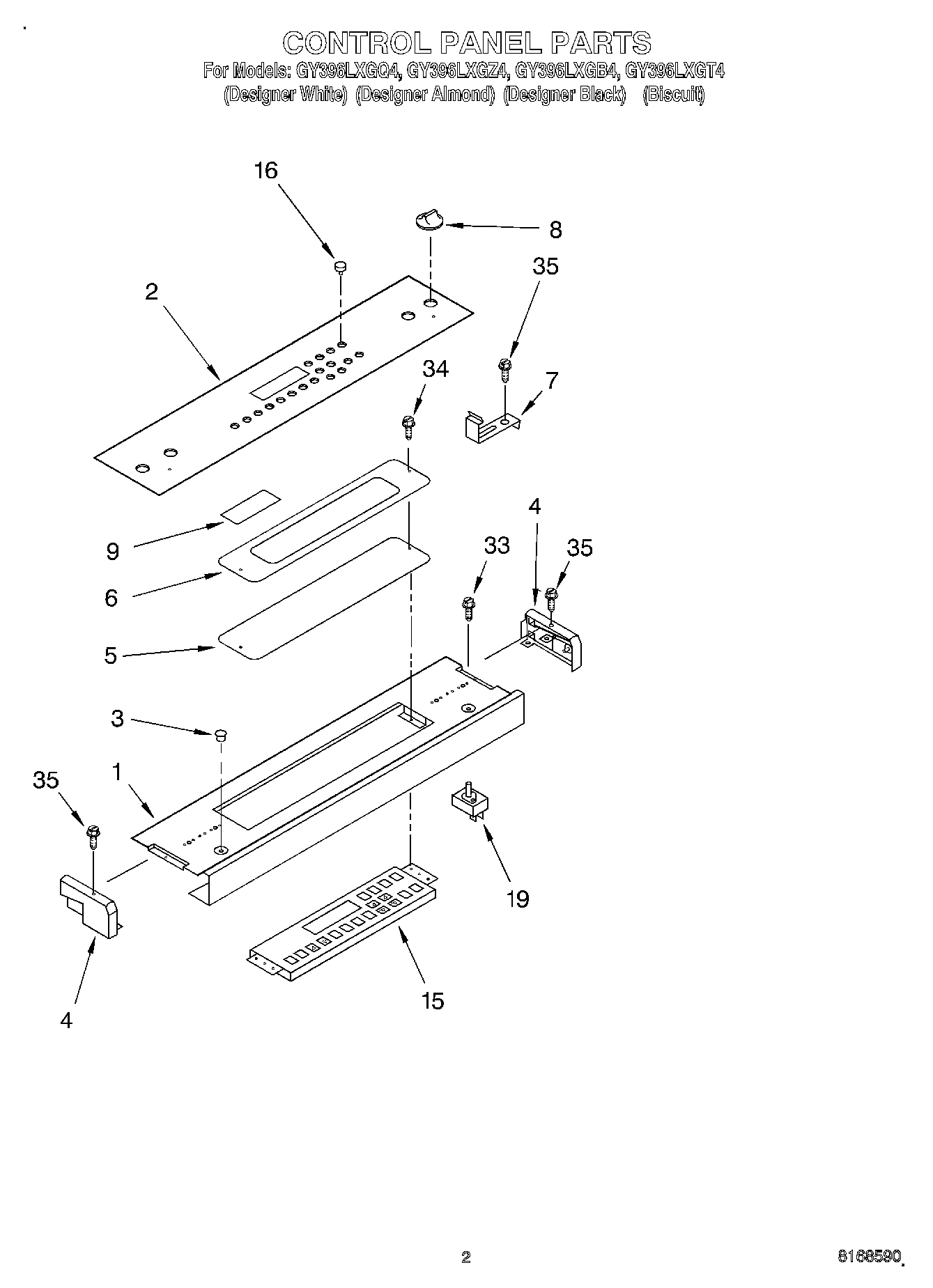

GY396LXGQ4 02 – CONTROL PANELadmin2025-04-26T11:37:42+00:00GY396LXGQ4 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control (Black) |
| 1 | Panel, Control |
| 1 | Panel, Control (Biscuit) |
| 1 | Panel, Control (Almond) |
| 2 | Glass-Console (Biscuit) |
| 2 | Glass-Console (Black) |
| 2 | Glass-Console (Almond) |
| 2 | Glass-Console (White) |
| 3 | Len`s Indicator (4) |
| 4 | 814562 Whirlpool Oven Endcap Panel (Left & Right) |
| 4 | (End Cap Right) (Black) |
| 4 | End Cap Left (Black) |
| 4 | (End Cap Right) (Almond) |
| 4 | End Cap Left (Almond) |
| 4 | (End Cap Right) (Biscuit) |
| 4 | End Cap Left (Biscuit) |
| 5 | Gasket, Cover |
| 6 | Cover, Control |
| 7 | Clip, Glass (2) |
| 8 | Knobs, Control (4) (Biscuit) |
| 8 | Knobs, Control (4) (Black) |
| 8 | WP9752405FW Whirlpool Knob |
| 8 | Knobs, Control (4) (Almond) |
| 9 | Label-WPSI Control |
| 15 | Control, Range |
| 16 | Knob, Timer (17) (Black) |
| 16 | Knob, Timer (17) (Biscuit) |
| 16 | Knob, Timer (17) (White) |
| 16 | Knob, Timer (18) (Almond) |
| 19 | WP9750643 Whirlpool Infinite Switch |
| 19 | WP9750646 Whirlpool Infinite Switch |
| 19 | Infinite Switch (1800W) |
| 33 | WP3400882 Whirlpool Screw |
| 34 | Screw (4) 10 x 3/8 |
| 35 | WP9781235 Whirlpool Clip |
| 35 | WP4159387 Whirlpool Compactor Screw |
