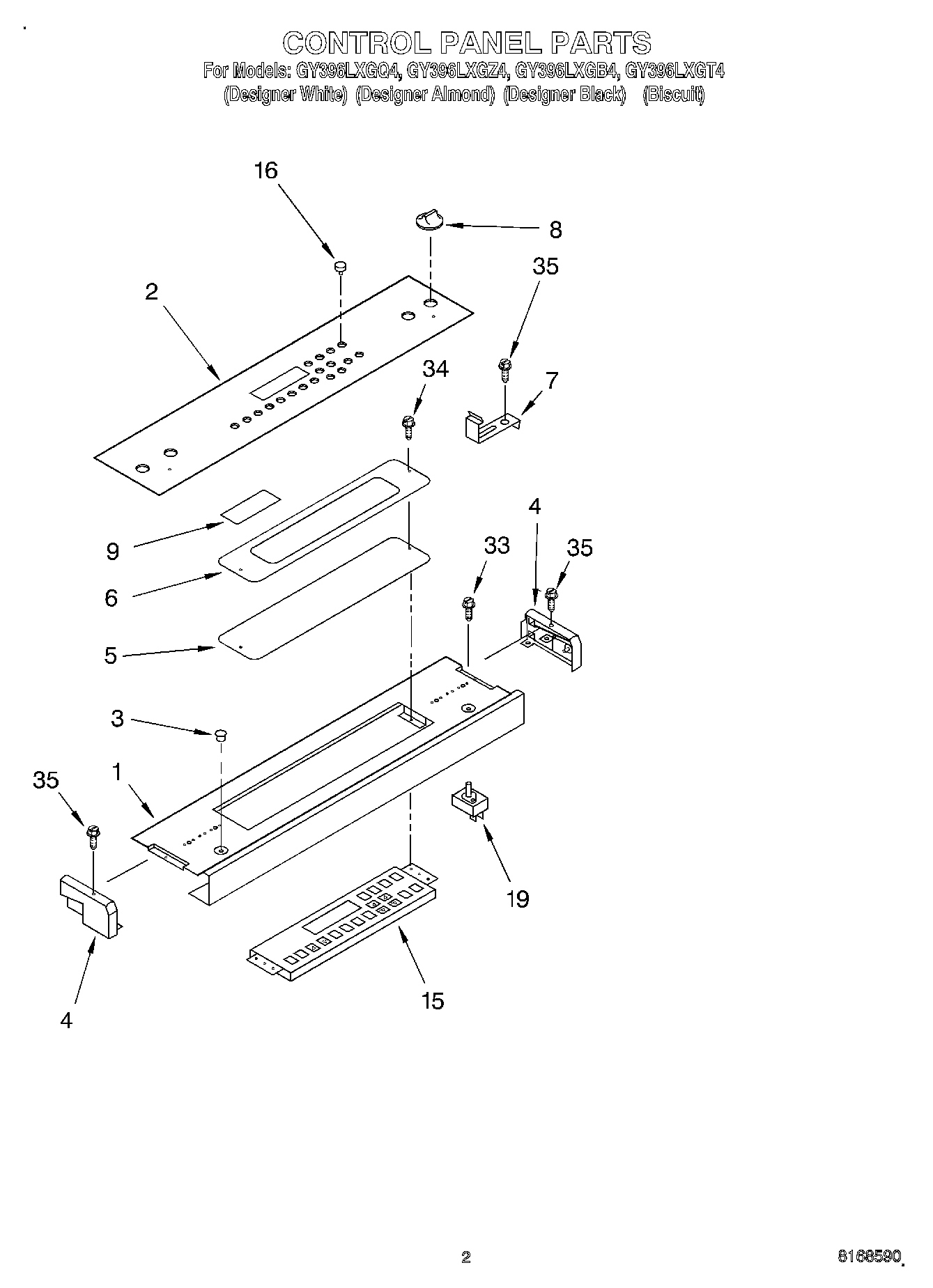

GY396LXGT4 02 – CONTROL PANEL

GY396LXGT4 02 – CONTROL PANEL

Written by

in

GY396LXGT4 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Black)
1Panel, Control
1Panel, Control (Biscuit)
1Panel, Control (Almond)
2Glass-Console (Biscuit)
2Glass-Console (Black)
2Glass-Console (Almond)
2Glass-Console (White)
3Len`s Indicator (4)
4814562 Whirlpool Oven Endcap Panel (Left & Right)
4(End Cap Right) (Black)
4End Cap Left (Black)
4(End Cap Right) (Almond)
4End Cap Left (Almond)
4(End Cap Right) (Biscuit)
4End Cap Left (Biscuit)
5Gasket, Cover
6Cover, Control
7Clip, Glass (2)
8Knobs, Control (4) (Biscuit)
8Knobs, Control (4) (Black)
8WP9752405FW Whirlpool Knob
8Knobs, Control (4) (Almond)
9Label-WPSI Control
15Control, Range
16Knob, Timer (17) (Black)
16Knob, Timer (17) (Biscuit)
16Knob, Timer (17) (White)
16Knob, Timer (18) (Almond)
19WP9750643 Whirlpool Infinite Switch
19WP9750646 Whirlpool Infinite Switch
19Infinite Switch (1800W)
33WP3400882 Whirlpool Screw
34Screw (4) 10 x 3/8
35WP9781235 Whirlpool Clip
35WP4159387 Whirlpool Compactor Screw
