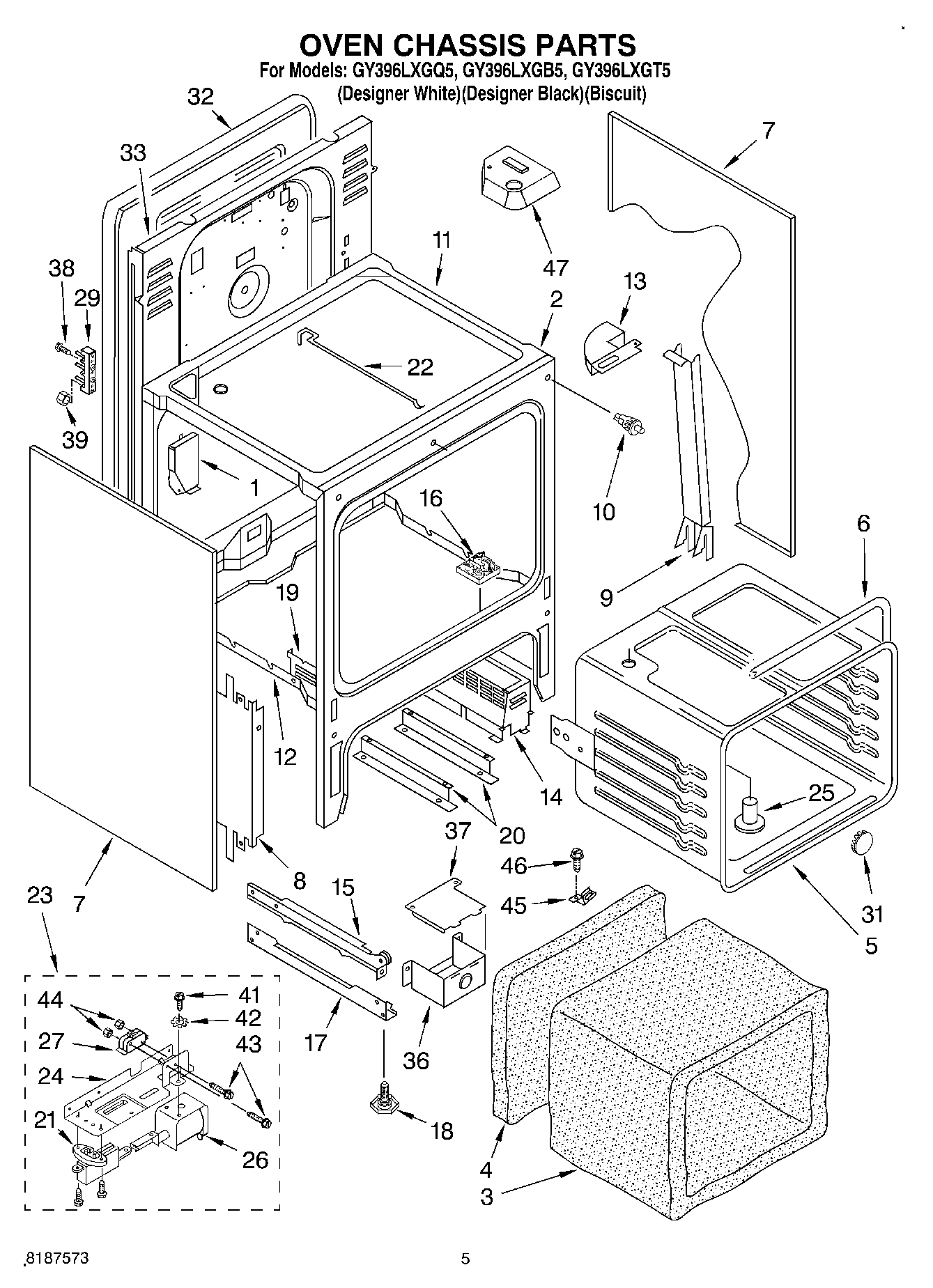

GY396LXGT5 04 – OVEN CHASSISadmin2025-04-26T11:41:26+00:00GY396LXGT5 04 – OVEN CHASSIS
Products
| Position | Product |
|---|
| NI | WP4159387 Whirlpool Compactor Screw |
| 1 | Vent Box, Oven |
| 2 | Chassis, Front |
| 3 | Insulation, Wrap |
| 4 | Insulation, Rear |
| 5 | Oven Liner |
| 6 | Gasket, Oven |
| 7 | Body, Side (White) |
| 7 | Body, Side (Black) |
| 7 | Body, Side (Biscuit) |
| 8 | Shield, Insulation |
| 9 | Duct, Side Fan |
| 10 | Door Switch (Oven Light) |
| 11 | Screw, (2) |
| 11 | Burner Box |
| 12 | Oven Bottom |
| 13 | Duct, Top |
| 14 | Support, Fan |
| 15 | Rail, Drawer (Right) |
| 15 | Drawer Rail, Left |
| 16 | Screw, (3) No.8 x 1`` |
| 16 | Motor, Fan |
| 17 | Bottom Rail (2) |
| 18 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 19 | Hinge, Base L or R |
| 19 | Screw (4) 10 x 1/2 |
| 20 | Support Rail |
| 21 | Single Position Device (Not Serviced) |
| 22 | Rod, Lock |
| 23 | Oven Lock Assembly (Includes No.21) |
| 24 | Bracket, Lock |
| 25 | Vent Tube |
| 26 | Solenoid |
| 27 | Switch, Interlock |
| 29 | WP8203546 Whirlpool Terminal Block |
| 31 | Button, Plug |
| 32 | Panel, Rear Cover |
| 33 | Back panel, Chassis |
| 36 | WPL 9752344 |
| 37 | Cover, Terminal Box |
| 38 | Screw, (2) 10-16 x 1 |
| 39 | WP112432 Whirlpool Nut Assembly |
| 41 | Screw (2) 10-32 x 5/16 |
| 42 | Washer (2) |
| 43 | Screw, (2) |
| 44 | Nut (2) |
| 45 | Clip, Ground Wire |
| 45 | Ground Strap |
| 46 | SCREW |
| 47 | Block, Balance |
| 47 | 340184 Whirlpool Screw |
