GY396LXGZ0 01 – COOKTOP

GY396LXGZ0 01 – COOKTOP

Written by

in

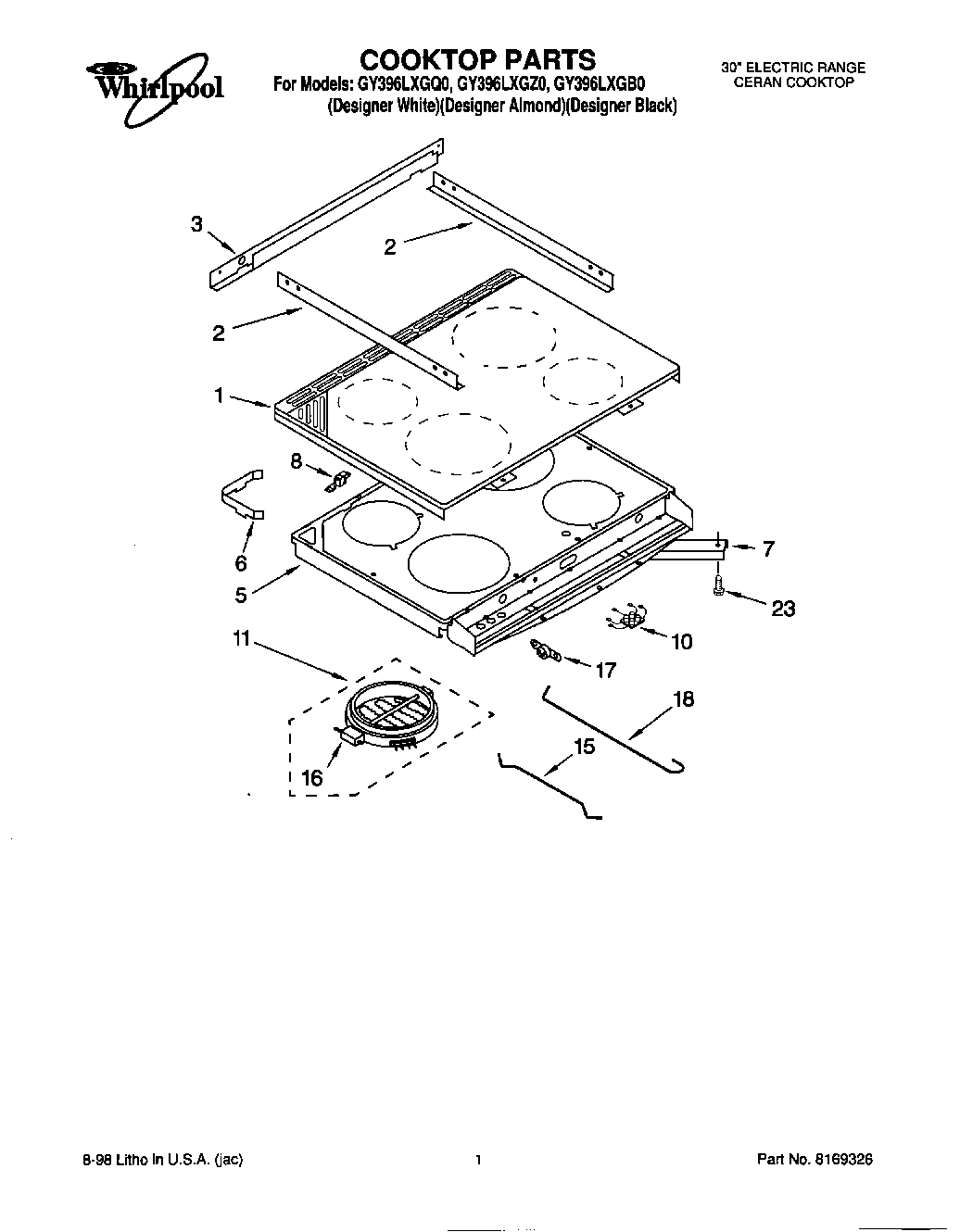

GY396LXGZ0 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Almond)
1Cooktop, Ceran (White)
1Cooktop, Ceran (Black)
2Trim, Side (2)
3WP4159387 Whirlpool Compactor Screw
3Trim, Rear
5Support, Element
6Sleeve, Vent
7Brace, Support
8Bracket, Pivot
10Hot Light
11Element, Surface (6“ L.R. 1400W)
11Element, Surface (8“ R.R. 2100W)
11Element, Surface (9“ L.F. 2400W)
11Element, Surface (7“ R.F. 1700W)
15Rod, Small Ceran Element
16Limiter, Temp. (1400 W – LR)
16Limiter, Temp (2100W – RR)
16Limiter, Temp (1700W – RF)
16Limiter, Temp. (2400 W – LF)
17Thermostat SPST (205)
18Rod, Large Ceran Element
23Screw (4) 10 x 1/2
