GY396LXGZ1 05 – OVEN

GY396LXGZ1 05 – OVEN

Written by

in

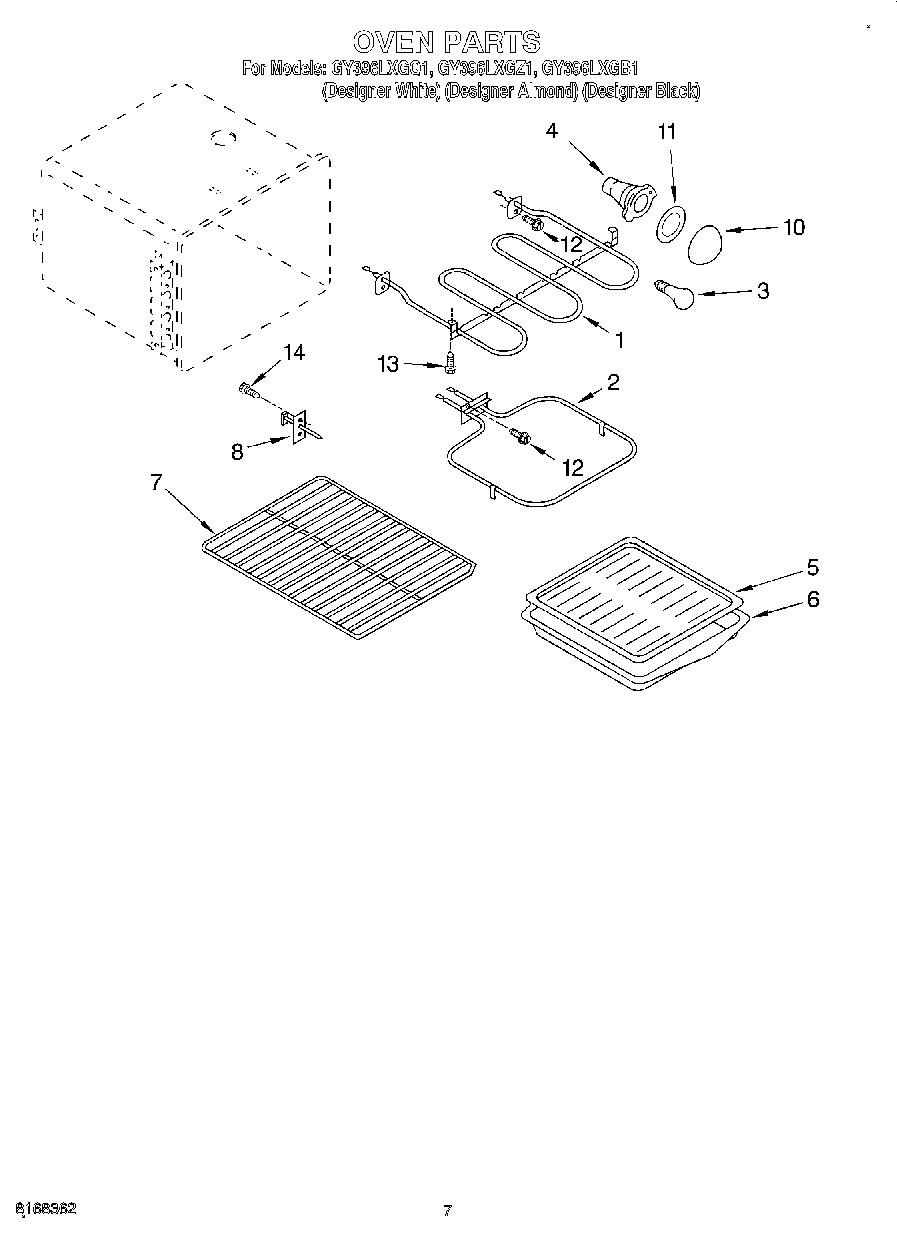

GY396LXGZ1 05 – OVEN

Products

PositionProduct
WPL 9751745
Literature Parts (Back Cover Install Instructions)
Literature Parts (Use & Care Guide)
WPW10339879 Whirlpool Wire Tie
WPL 9781767
WPL 9751868
WPL 9781823
WPL 9750744
Washer (2)
WPL 9753267PW
WPL 9781845
Literature Parts (Template, Anti-Tip)
WPL LIT9752875
WPL 9752885
Literature Parts (Tech Sheet)
Literature Parts (Installation Instructions)
Safer Cooking Tips
SCREW
WPL 9753267PB
WPL 9753267PT
1Element, Broil
2ELMNT-BAKE
3RANGE ONLY 40W 120V APPL BULB
4W11594027 Whirlpool Range Oven Light Socket
64396923 Whirlpool Broil Pan Set Gray Porcelain
7Rack, Standard
8Sensor
10WP9781049 Whirlpool Light Lens
11WP3184533 Whirlpool Range Light Lens Gasket
13340184 Whirlpool Screw
141
14Wire (14 Ga. 150 c Green)
14350930 Whirlpool White Spray Paint
14Screw
14Grease
14Wire (14 Ga. 150 c Orange)
148212471 Whirlpool Oven Paint
14Wire (14 Ga. 150 c Yellow)
14Wire (12 Ga. 150 c Black)
1418 Ga. 80~c Rating (Red)
14Wire (14 Ga. 200 c Brown)
14Wire (14 Ga. 150 c Brown)
14Wire (14 Ga. 150 c Blue)
14WPL 72112
14Platinum (Uncut)
14Enamal, Toast (1 Qt. Uncut)
14Paint, Spray (13 Oz.) (Platinum)
14Toast
14Golden Harvest (Uncut)
14Golden Harvest
1472113 Whirlpool Touch-Up Paint
1472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14Almond (Uncut)
14WP72107 Whirlpool Touchup
14799344 Whirlpool Refrigerator Paint
1472017 Whirlpool Appliance Touch-Up Paint White
14350942 Whirlpool Spray Paint
14511873 Whirlpool Refrigerator Paint
14242831 Whirlpool Oven Wire
14285006 Whirlpool Spray
14W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
14Paint, Spray 13 Oz. (Avocado)
14paint, spray 13 oz. (coffee)
14Paint, Touch-Up 1/2 Oz. (Coffee)
1472109 Whirlpool Dacor Avocado Touch-Up Paint
14Wire, 25“ Roll (White 14 GA.)
14Wire, 25` Roll (Red 14 Ga.)
14Wire, 25` Roll (Black 14 Ga.)
14FOIL, ALUMINUM OVEN (18“ X 25 )
14WPW10208653 Whirlpool Insulation
14WPL 799832
14350956 Whirlpool Spray Assembly
