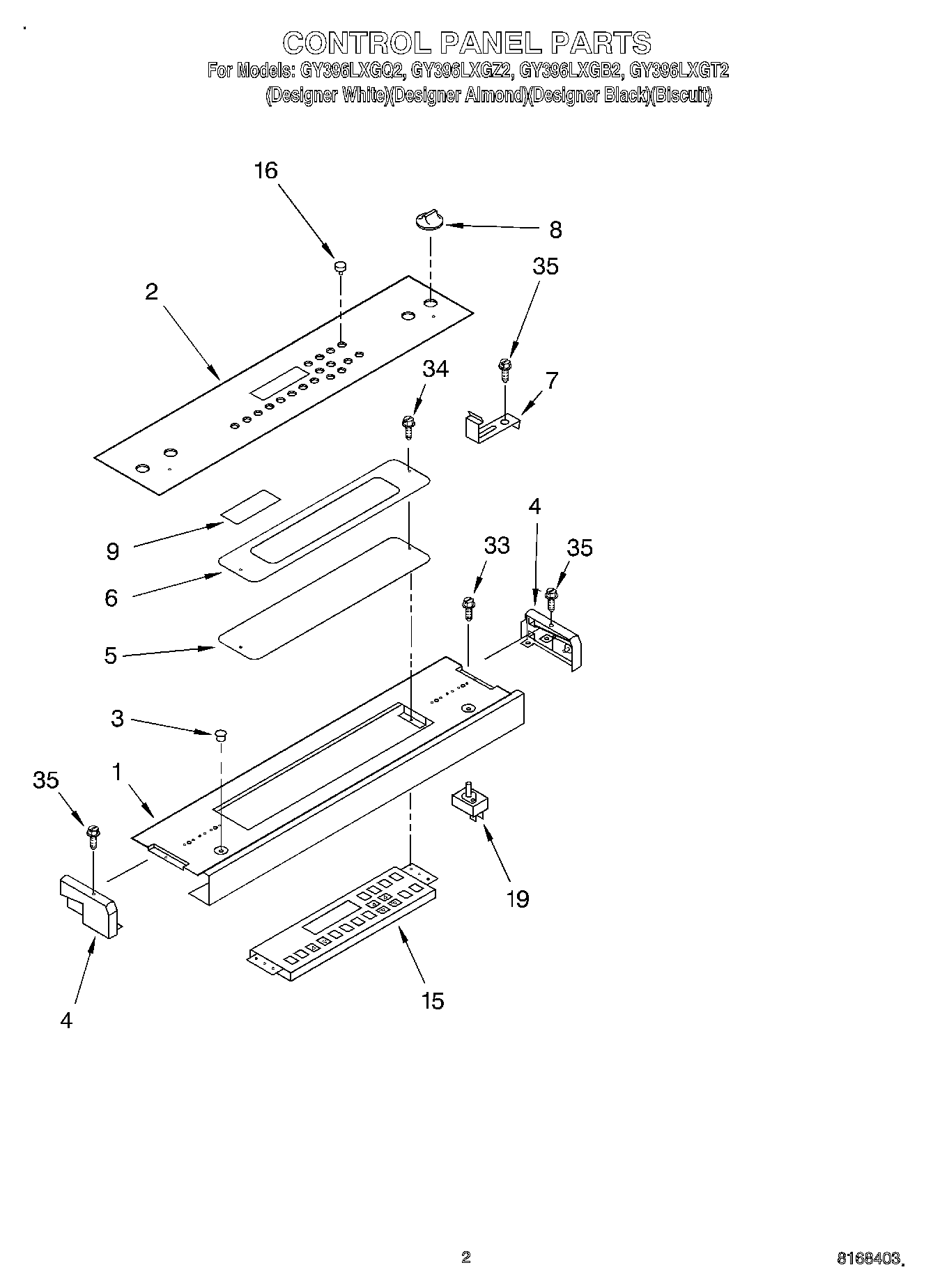

GY396LXGZ2 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control (Black)
1	Panel, Control
1	Panel, Control (Biscuit)
1	Panel, Control (Almond)
2	Glass-Console (Biscuit)
2	Glass-Console (Black)
2	Glass-Console (Almond)
2	Glass-Console (White)
3	Len`s Indicator (4)
4	814562 Whirlpool Oven Endcap Panel (Left & Right)
4	End Cap Left (Biscuit)
4	(End Cap Right) (Black)
4	End Cap Left (Black)
4	(End Cap Right) (Biscuit)
4	End Cap Left (Almond)
4	(End Cap Right) (Almond)
5	Gasket, Cover
6	Cover, Control
7	Clip, Glass (2)
8	Knobs, Control (4) (Black)
8	Knobs, Control (4) (Almond)
8	WP9752405FW Whirlpool Knob
8	Knobs, Control (4) (Biscuit)
9	Label-WPSI Control
15	Control, Range
16	Knob, Timer (17) (Black)
16	Knob, Timer (17) (Biscuit)
16	Knob, Timer (17) (White)
16	Knob, Timer (18) (Almond)
19	WP9750643 Whirlpool Infinite Switch
19	WP9750646 Whirlpool Infinite Switch
19	Infinite Switch (1800W)
33	WP3400882 Whirlpool Screw
34	Screw (4) 10 x 3/8
35	WP4159387 Whirlpool Compactor Screw
