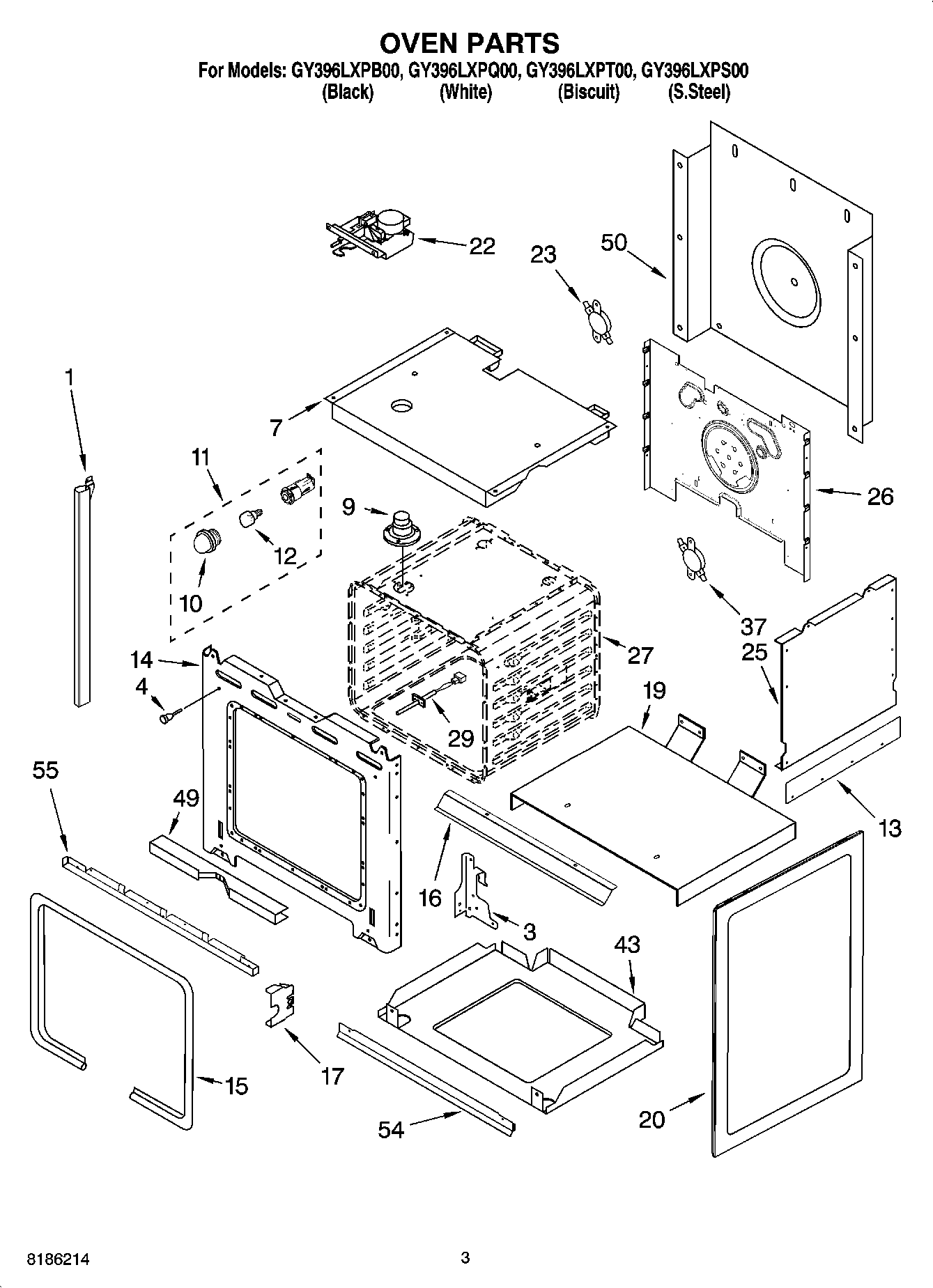

GY396LXPB00 03 – OVEN PARTS

Products

Position	Product
1	Trim, Side Right (White)
1	Trim, Side (Right Hand) (Biscuit)
1	Trim, Side Right (Stainless)
1	Trim, Side Right (Black)
1	Trim, Side Left (White)
1	Trim, Side Left (Stainless)
1	Trim, Side Left (Black)
1	WP3400832 Whirlpool Screw
1	Trim, Side (Left Hand) (Biscuit)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449743 Whirlpool Screw
13	Shield, Heat
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	Body. Side (White)
20	Body. Side (Biscuit)
20	Body. Side (Black)
22	WP9760889 Whirlpool Door Latch
23	Thermostat SPST (205)
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
54	Ve
54	Vent, Bottom Upper (Black)
54	Vent, Bottom Upper (S. Steel)
54	Vent, Bottom Upper (Biscuit)
55	WPL 9756485BL
55	WPL 9756470
55	WPL 9756817
55	WPL 9756485WH
55	WPL 9756485SS
55	WPL 9756485BT
55	WPL ARI74820A2
