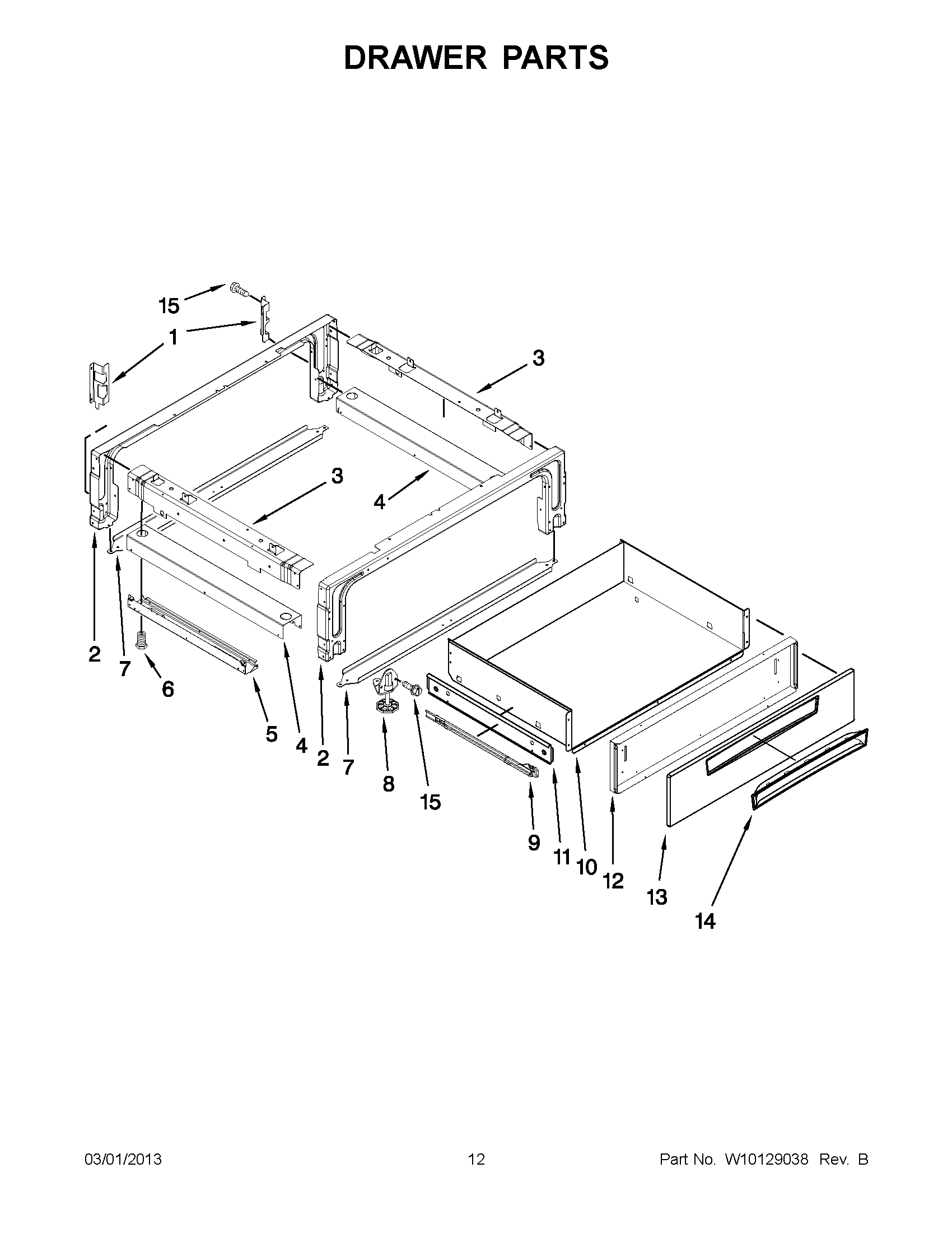

GY396LXPB03 06 – DRAWER PARTS

Products

Position	Product
1	Support (L.Hand)
1	Support (R.Hand)
2	Support, Front & Rear
3	Brace, Drawer (Right)
3	Brace, Drawer (Left)
4	Bracket, Base
5	Side, Base (L.Side)
5	Side, Base (R.Side)
6	WPW10058460 Whirlpool Appliance Levelling Leg
7	Brace, Base Front
8	WP3196037 Whirlpool Leveling Foot
9	Drawer Slide (Left)
9	Drawer Slide (Right)
10	Drawer
11	Guide, Roller Includes Roller (Right)
11	Guide, Roller Includes Roller (Left)
12	Panel, Drawer
13	Front, Drawer (White)
13	Front, Drawer (Stainless)
13	Front, Drawer (Black)
13	Front, Drawer (Biscuit)
14	Handle, Drawer (Black)
14	Handle, Drawer (White)
14	Handle, Drawer (Biscuit)
15	WP3196557 Whirlpool Screw
