GY396LXPQ03 05 – DOOR PARTS

GY396LXPQ03 05 – DOOR PARTS

Written by

in

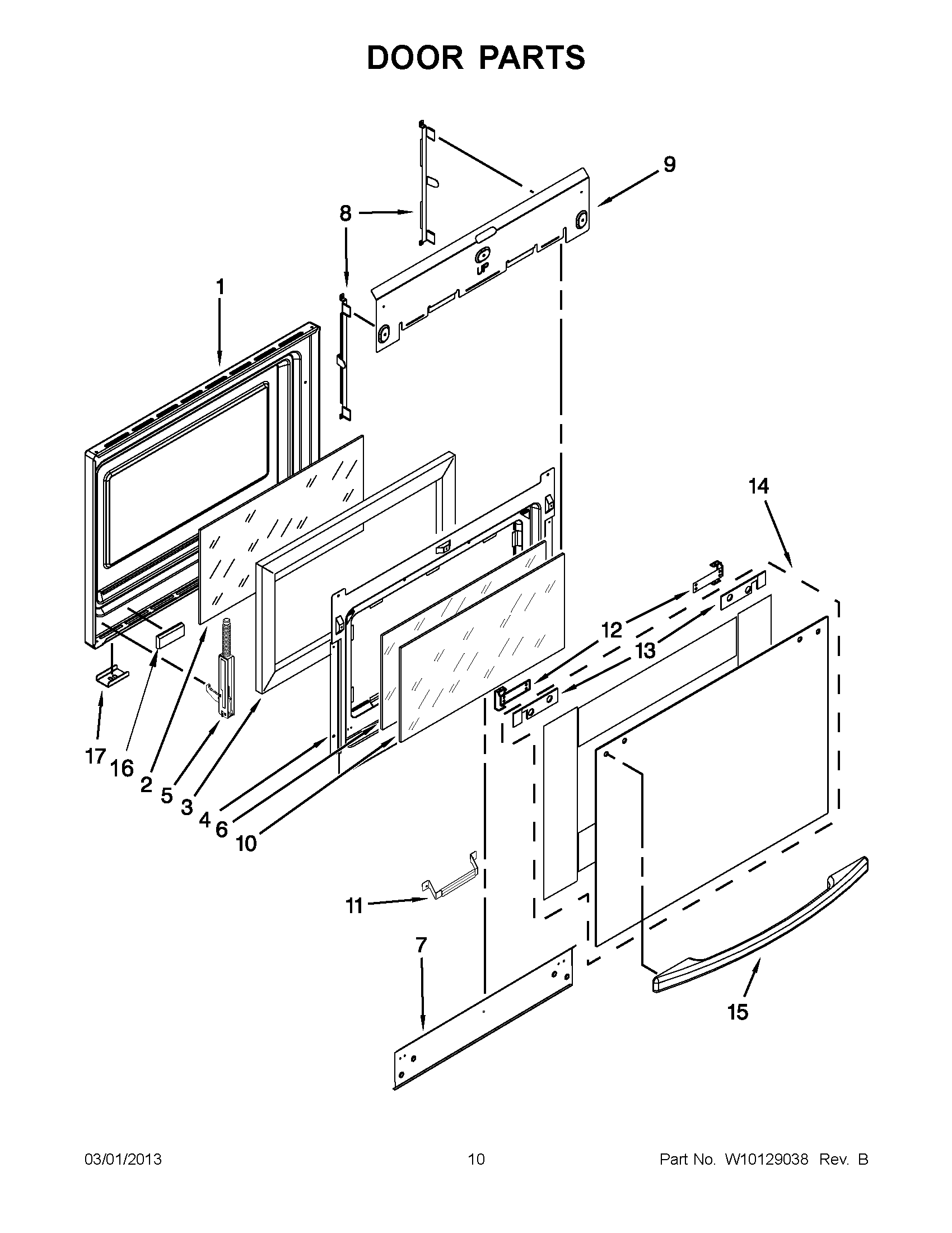

GY396LXPQ03 05 – DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9757706 Whirlpool Door Inner Glass
3WP4451722 Whirlpool Door Insulation Assembly
4WP4457132 Whirlpool Retainer
5WP9760572 Whirlpool Door Hinge
5WP9760571 Whirlpool Door Hinge
74457114 Whirlpool Oven Heat Shield
8WP9759229 Whirlpool Mounting Bracket
9Shield, Heat
10WP9759225 Whirlpool Inner Door Glass
11Bracket (3rd Glsss)
12Bracket, Handle
13Pad, Handle (Right)
13Pad, Handle (Left)
14Glass, Door Front (Biscuit)
14Assembly, Door Kit (White)
14WP9759074 Whirlpool Outer Door Glass
14WP9759641 Whirlpool Outer Door Glass
15Door Handle (Almond Model)
15Door Handle (White Model)
15Door Handle (Black Model)
16Spacer, Glass
17Clip, Retainer (Black Model)
17Clip, Retainer (White Model)
17RETAINER, GLASS-CLIP (STAINLESS)
17RETAINER,GLASS CLIP (BISCUIT)
