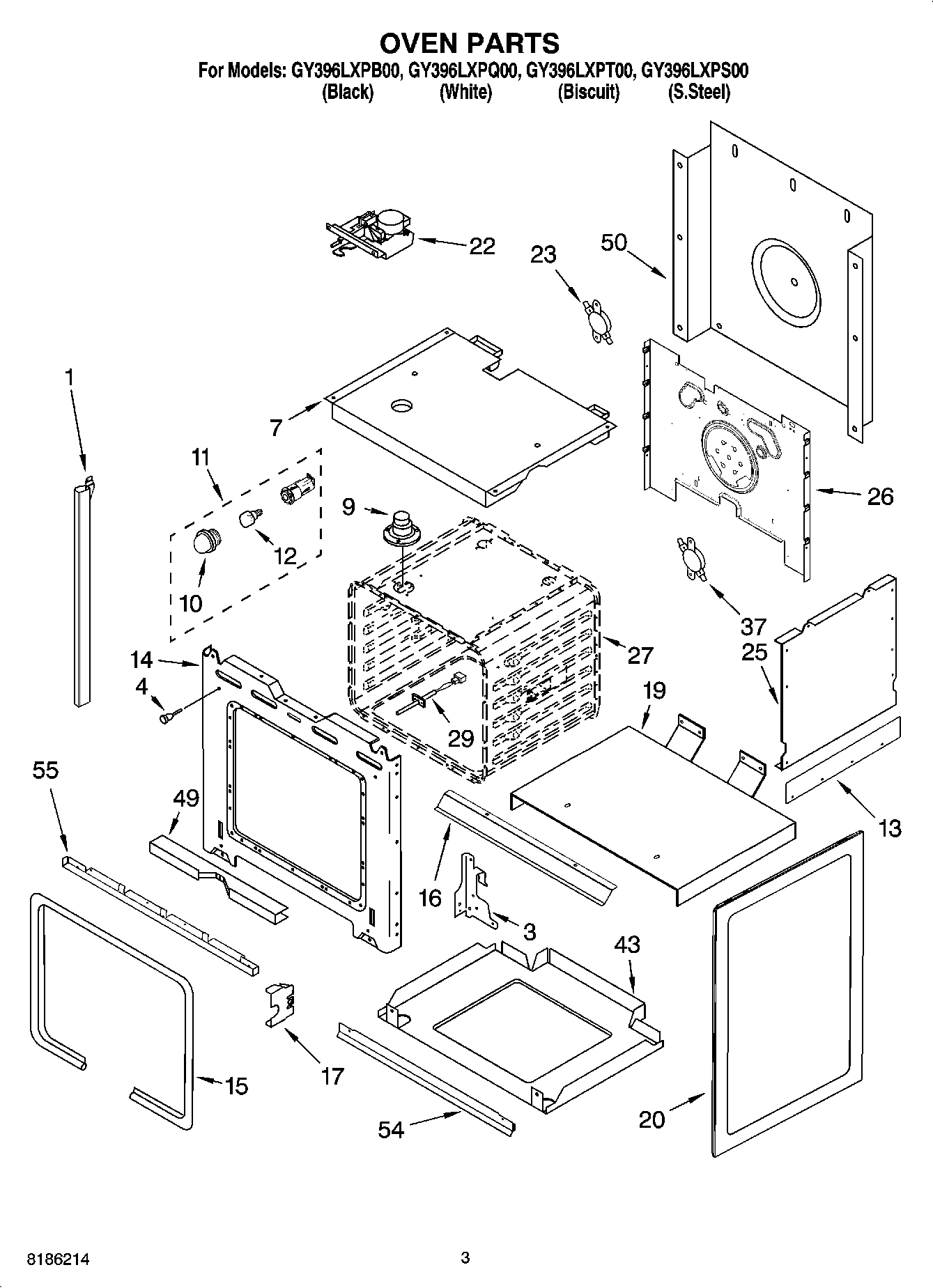

GY396LXPS00 03 – OVEN PARTS

Products

PositionProduct
1WP3400832 Whirlpool Screw
1Trim, Side Left (Black)
1Trim, Side Left (Stainless)
1Trim, Side Left (White)
1Trim, Side Right (Black)
1Trim, Side Right (Stainless)
1Trim, Side Right (White)
1Trim, Side (Left Hand) (Biscuit)
1Trim, Side (Right Hand) (Biscuit)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
13WP4449743 Whirlpool Screw
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Body. Side (White)
20Body. Side (Biscuit)
20Body. Side (Black)
22WP9760889 Whirlpool Door Latch
23Thermostat SPST (205)
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
54Vent, Bottom Upper (S. Steel)
54Vent, Bottom Upper (Black)
54Vent, Bottom Upper (Biscuit)
54Ve
55WPL ARI74860A7
55WPL 9756485WH
55WPL 9756470
55WPL 9756485SS
55WPL 9756485BL
55WPL 9756817
55WPL 9756485BT
