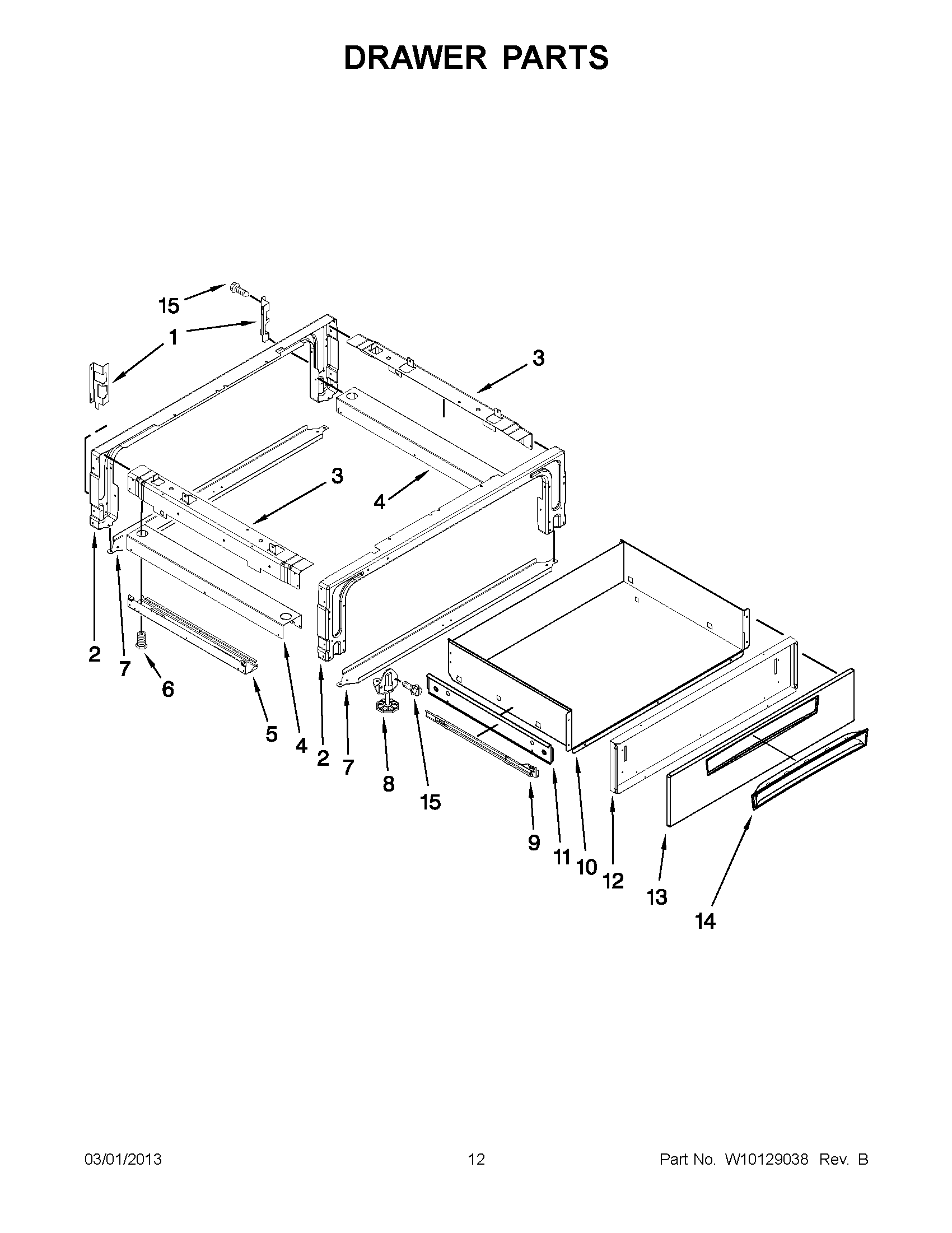

GY396LXPS03 06 – DRAWER PARTS

GY396LXPS03 06 – DRAWER PARTS

Written by

in

GY396LXPS03 06 – DRAWER PARTS

Products

PositionProduct
1Support (L.Hand)
1Support (R.Hand)
2Support, Front & Rear
3Brace, Drawer (Right)
3Brace, Drawer (Left)
4Bracket, Base
5Side, Base (L.Side)
5Side, Base (R.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7Brace, Base Front
8WP3196037 Whirlpool Leveling Foot
9Drawer Slide (Left)
9Drawer Slide (Right)
10Drawer
11Guide, Roller Includes Roller (Right)
11Guide, Roller Includes Roller (Left)
12Panel, Drawer
13Front, Drawer (White)
13Front, Drawer (Stainless)
13Front, Drawer (Black)
13Front, Drawer (Biscuit)
14Handle, Drawer (Black)
14Handle, Drawer (White)
14Handle, Drawer (Biscuit)
15WP3196557 Whirlpool Screw
