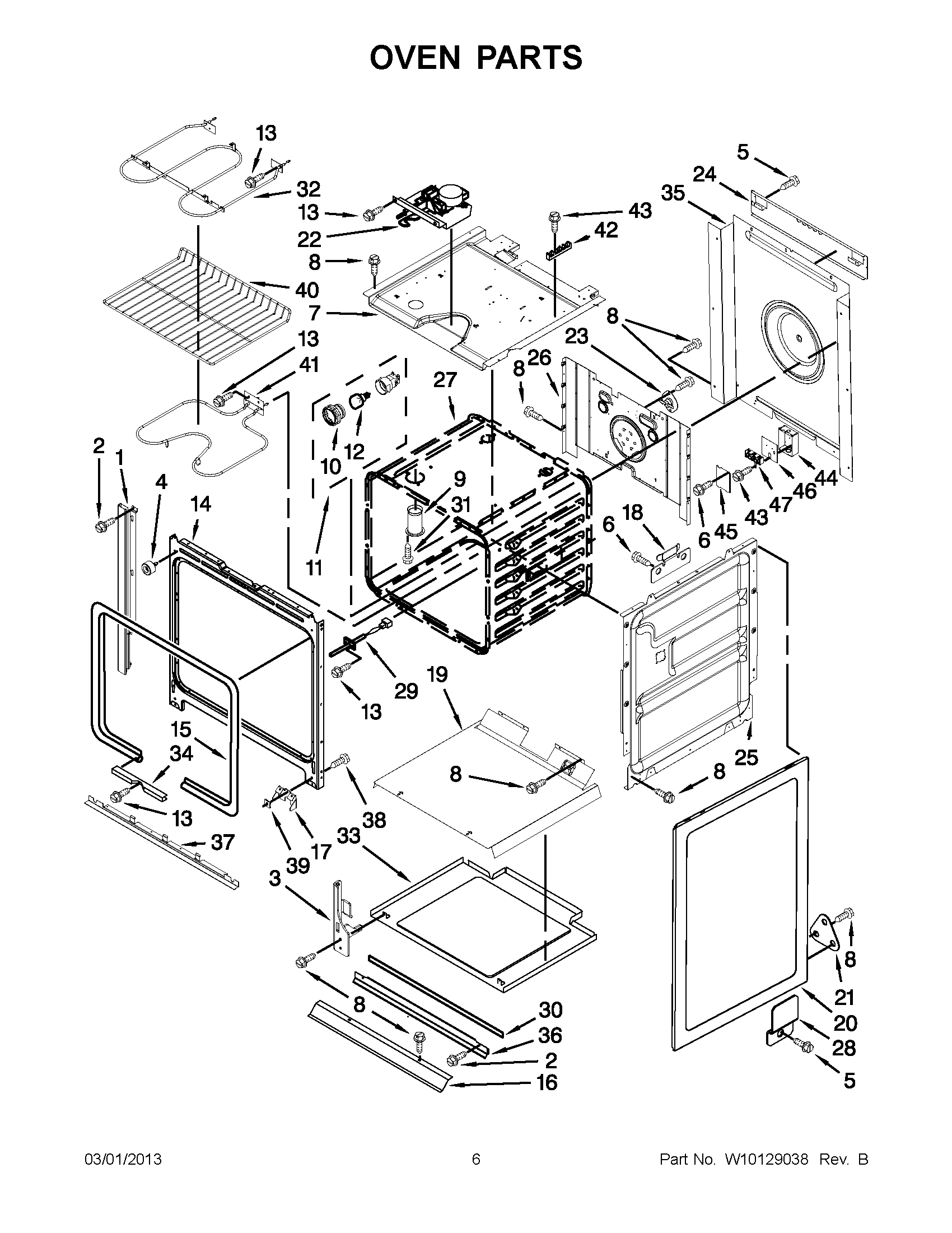

GY396LXPT03 03 – OVEN PARTS

GY396LXPT03 03 – OVEN PARTS

Written by

in

GY396LXPT03 03 – OVEN PARTS

Products

PositionProduct
NIWPL 9756470
NIWPL 9756817
1Trim, Side Left (Black)
1Trim, Side Right (Stainless)
1Trim, Side Left (White)
1Trim, Side Left (Stainless)
1Trim, Side (Right Hand) (Biscuit)
1Trim, Side Right (White)
1Trim, Side (Left Hand) (Biscuit)
1Trim, Side Right (Black)
2WP3400832 Whirlpool Screw
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5WP3196557 Whirlpool Screw
6W10491985 Whirlpool Screw
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4449154 Whirlpool Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20Body, Side (White)
20Body, Side (Biscuit)
20BODY, SIDE BLACK
21BRACKET,SIDE PANEL
22WP9760889 Whirlpool Door Latch
23WP9759243 Whirlpool Thermostat
24Brace, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
28Clip, Side Panel
29WPW10131825 Whirlpool Oven Temperature Sensor
30Insulation, Bottom Vent
31SCREW
32WP9760771 Whirlpool Electric Oven Broil Element
33Base, Chassis
34WP4448933 Whirlpool Retainer
35WP4451747 Whirlpool Rear Cover
36Ve
36Vent, Bottom Upper (S. Steel)
36Vent, Bottom Upper (Biscuit)
36Vent, Bottom Upper (Black)
37WPL 9756485BL
37WPL 9756485BT
37WPL 9756485SS
37WPL 9756485WH
38WP4449743 Whirlpool Screw
39WP4450118 Whirlpool Nut
40WPW10179152 Whirlpool Rack Oven
41WPW10207397 Whirlpool Oven Bake Element
42WP8203546 Whirlpool Terminal Block
43Screw
44W10115858 Whirlpool Box Terminal
45Cover, Term Box
469759721 Whirlpool Oven Insulator
47WP9761958 Whirlpool Range Terminal Block
