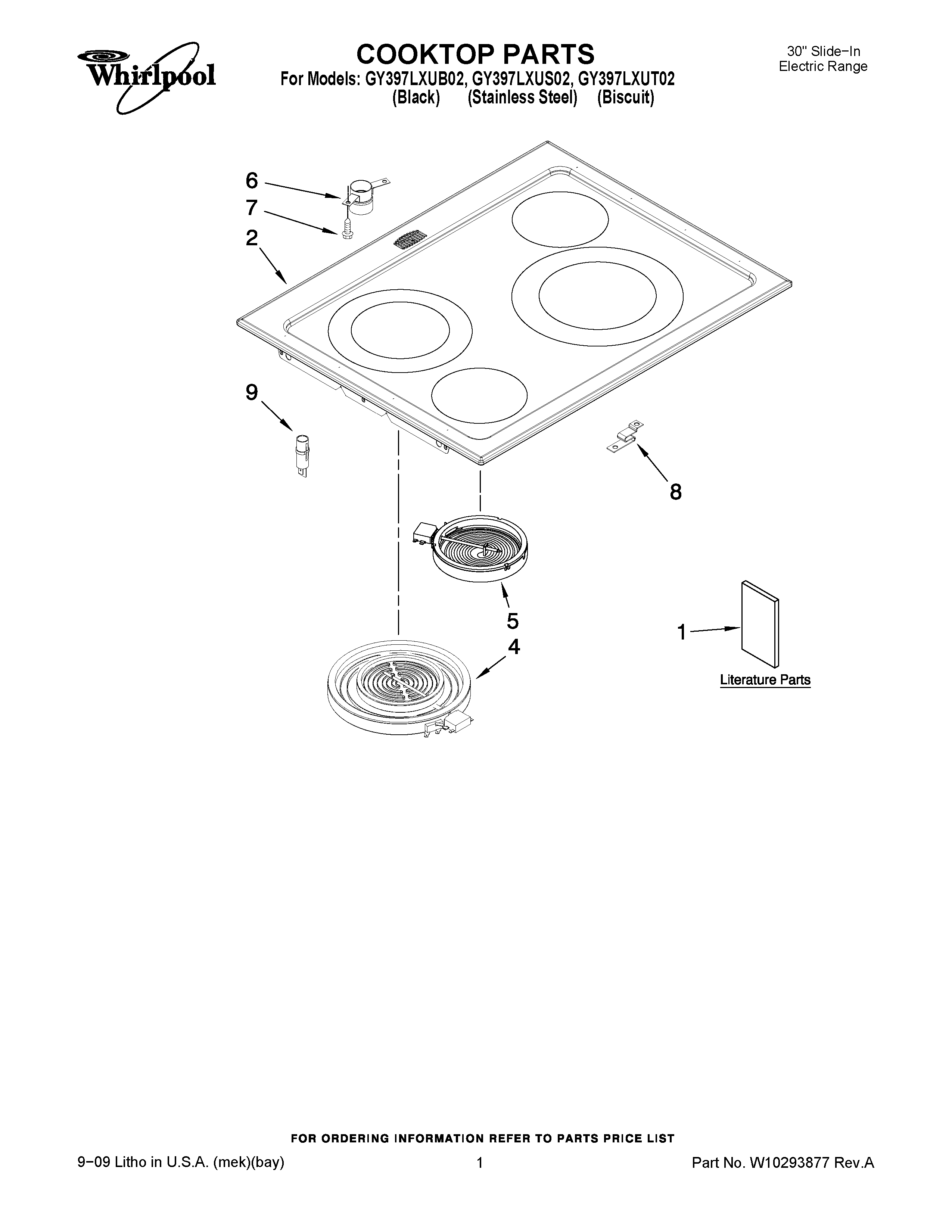

GY397LXUB02 01 – COOKTOP PARTS

GY397LXUB02 01 – COOKTOP PARTS

Written by

in

GY397LXUB02 01 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2COOKTOP-BLACK/SS MDL
2COOKTOP-BISCUIT
4ELEMENT (LR, RF)
5ELEMENT (LF,RR)
6Tube, Vent Upper
7SCREW
8SUPPORT,ELEMENT
9LIGHT, INDICATOR
