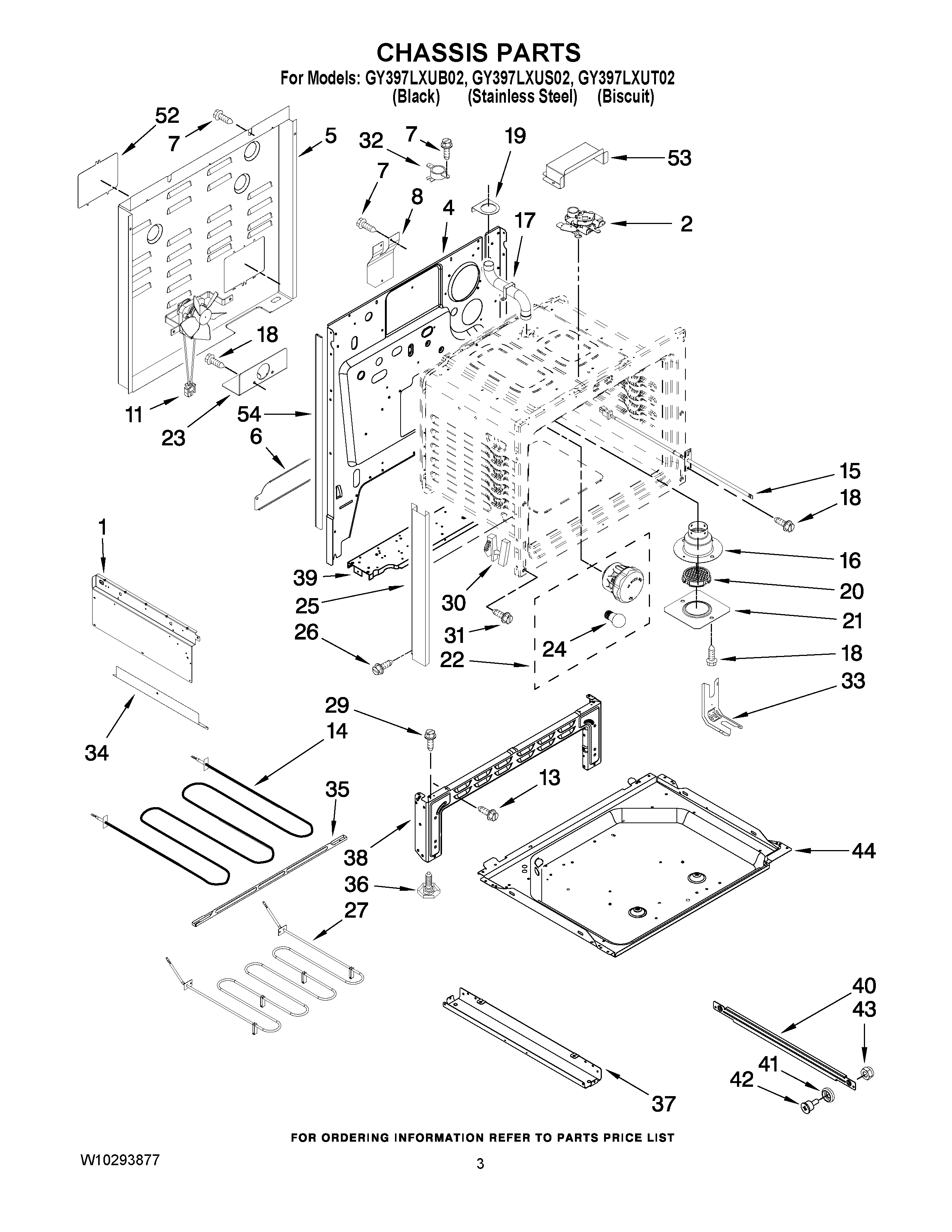

GY397LXUB02 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, OVEN BOTTOM
NI	Insulation, Wrap
NI	Insulation, Back
1	Panel, Shield (Left)
1	Panel, Shield (Right)
2	Latch Assembly
4	Main Back
5	Cover, Main Wire
6	Extension, Back
8	Insulator, Cord
11	Fan, Cooling
14	Element, Broil
15	Sensor, Oven
16	Tube, Vent Lower
17	Tube, Vent Upper
18	SCREW
19	Holder, Vent Tube
20	SMOKE ELIMINATOR
21	PLATE, SMOKE ELM.
22	Light Assembly
23	W10190166 Whirlpool Service Bracket
24	BULB, LIGHT
25	Trim, Side
27	Element, Bake
29	SCREW
30	HINGE
31	SCREW, HINGE
32	LIMIT, OVEN
33	BRACKET, ANTI TIP
34	Extention, Shield
35	Support, Element
36	Leg, Leveling
37	Pedestal, Bottom
38	W10271711 Whirlpool Support Bracket
39	Support
40	RUNNER, DRAWER
41	Roller, Drawer
42	Shaft, Roller
43	Nut, Lock
44	Retainer, Bottom
52	COVER, TERMINAL
53	COVER, DOOR LATCH
54	GUARD, EDGE
