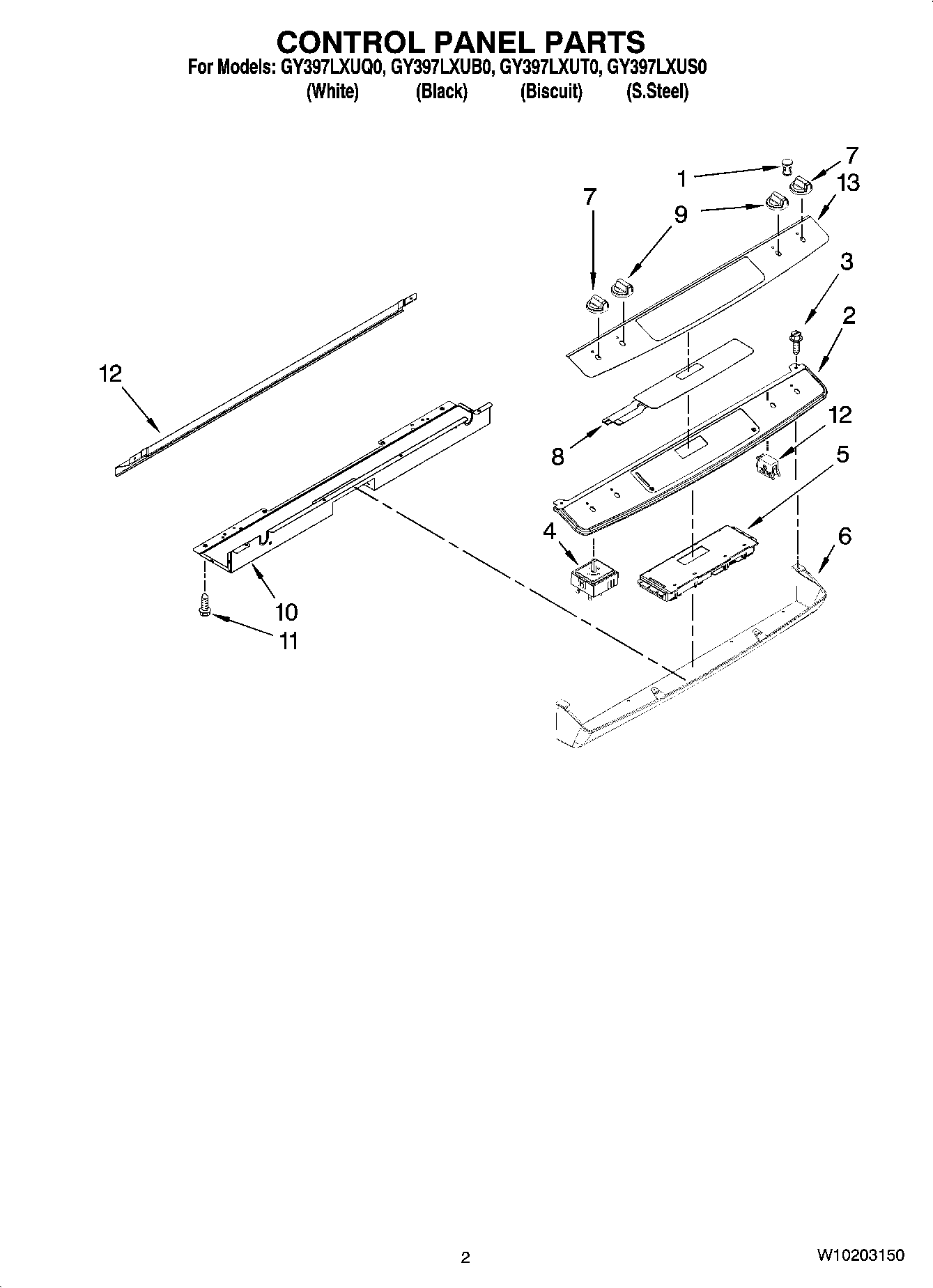

GY397LXUQ0 02 – CONTROL PANEL PARTS

GY397LXUQ0 02 – CONTROL PANEL PARTS

Written by

in

GY397LXUQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WP22001948 Whirlpool Indicator Lens
2Panel, Control (White)
2Panel, Control (Black)
2Panel, Control (S.Steel)
2Panel, Control (Biscuit)
3WPL 7101P30960
4Switch, Infinite 6“ (LF, RR)
4SWITCH-ELMNT
5WP8507P390-60 Whirlpool Control Board and Clock
6PANEL,CONTROL(LWR) (BISCUIT)
6PANEL,CONTROL(LWR) (WHITE)
6PANEL,CONTROL(LWR) (BLACK)
7KNOB (BLACK)
7KNOB (WHITE)
7KNOB (LF,RR) (BISCUIT)
8WPW10207932 Whirlpool Membrane Switch
8WPW10207928 Whirlpool Membrane Switch
8WPW10207930 Whirlpool Membrane Switch
9KNOB (RF,LR) (BISCUIT)
9KNOB, DUAL (WHITE)
9KNOB, DUAL (BLACK)
10Support, Control Panel
11WP90767 Whirlpool Screw
12WP74004153 Whirlpool Indicator Light
13Overlay (S.Steel Mdl Only)
