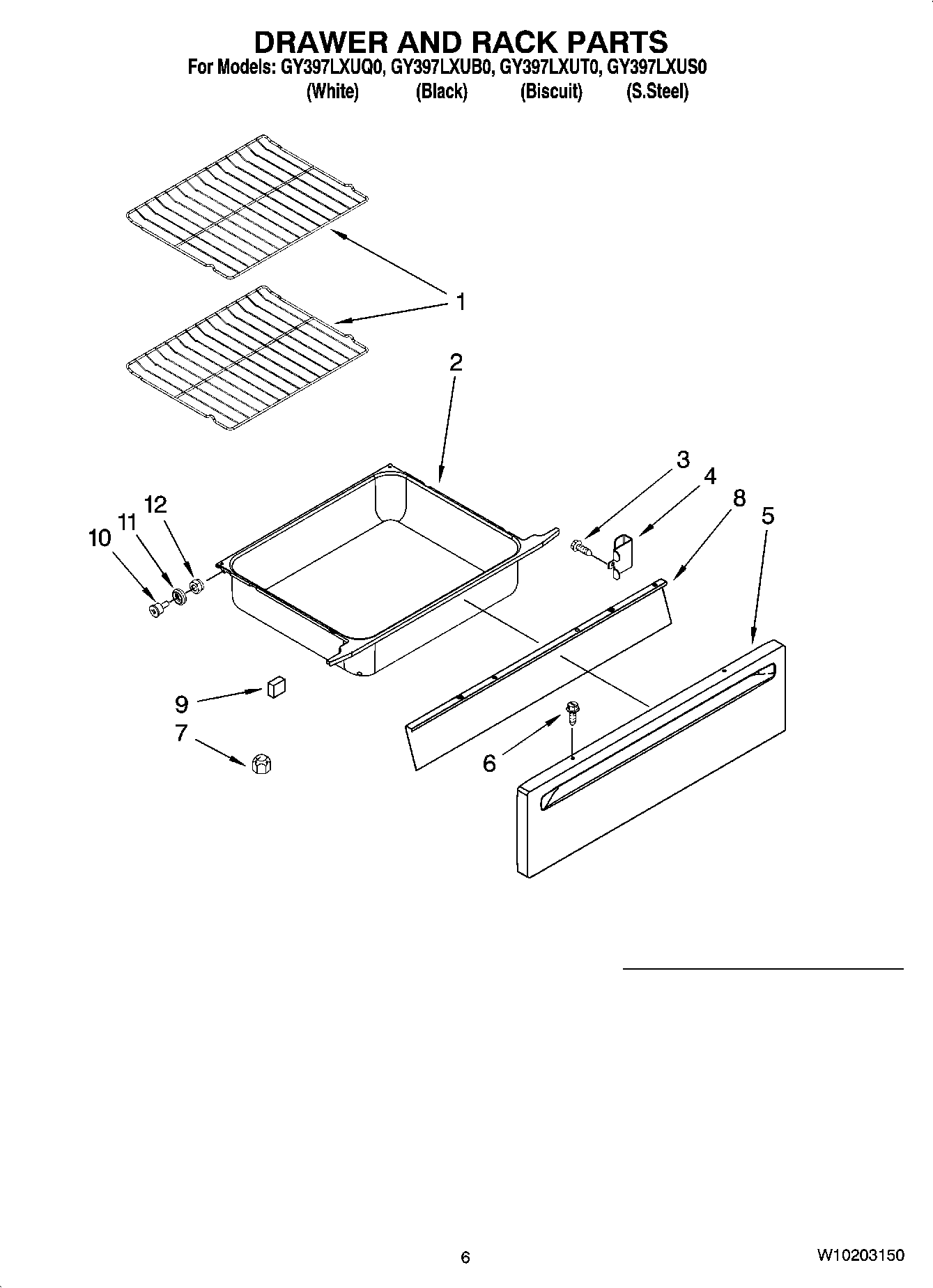

GY397LXUQ0 05 – DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI74911A2
	8019P013-60 Whirlpool Clip
	Grease
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	WPL 5171P97460
	WPL 5171P97660
	WPL ARI74910A8
	WPL ARI74909A7
	WPL ARI74908A5
	WPL ARI74907A7
	WPL ARI74912A6
	WPL 74011572
	WPL 74011549
	WPL 74010849
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	WPW10208653 Whirlpool Insulation
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	WPL 799832
	FOIL, ALUMINUM OVEN (18“ X 25 )
1	Rack, Oven (2)
2	Drawer, Storage
3	WP7101P072-60 Whirlpool Screw
4	Bracket, Drawer
5	Panel, Drawer (S.Steel)
5	Panel, Drawer (Biscuit)
5	Panel, Drawer (Black)
5	Panel, Drawer (White)
6	W10828565 Whirlpool Screw
6	WP98008544 Whirlpool Screw Assembly
6	Screw, Panel (S.Steel)
6	WP74009541 Whirlpool Screw Assembly
7	74005230 Whirlpool Oven Lock Nut (8-32)
8	Lining, Drawer
9	WP74005546 Whirlpool RU Spacer
10	WP74004078 Whirlpool Door Roller
11	Shaft, Roller (2)
12	Nut
