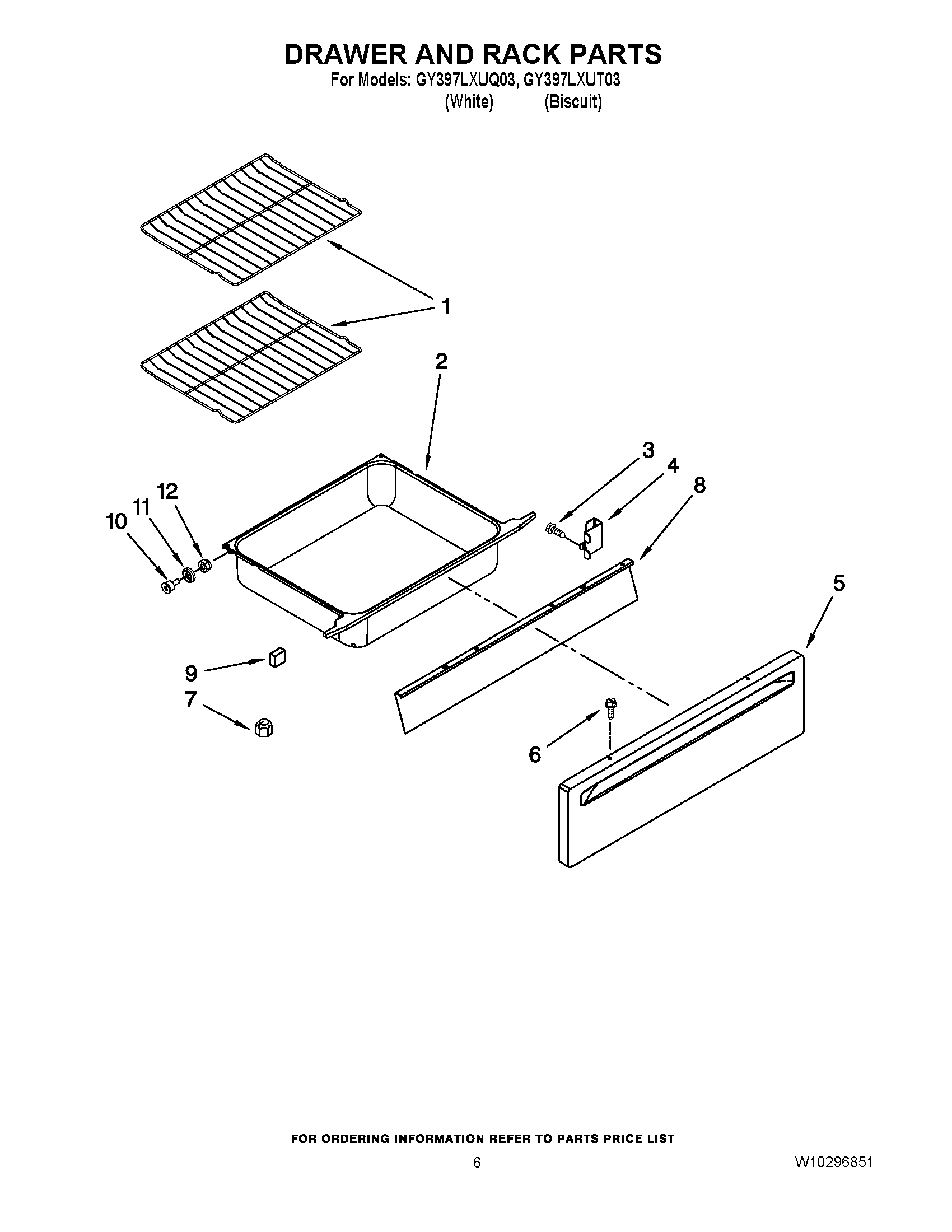

GY397LXUQ03 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	RACK, OVEN
2	Drawer, Storage
3	Screw, Panel
4	Bracket, Drawer
5	PANEL, DRAWER (BISCUIT)
5	PANEL, DRAWER
6	Screw, Trim (Biscuit)
6	SCREW (WHITE)
7	Nut, Lock
8	Lining, Drawer
9	Spacer, Rubber
10	Roller, Drawer
11	Shaft, Roller
12	Nut
