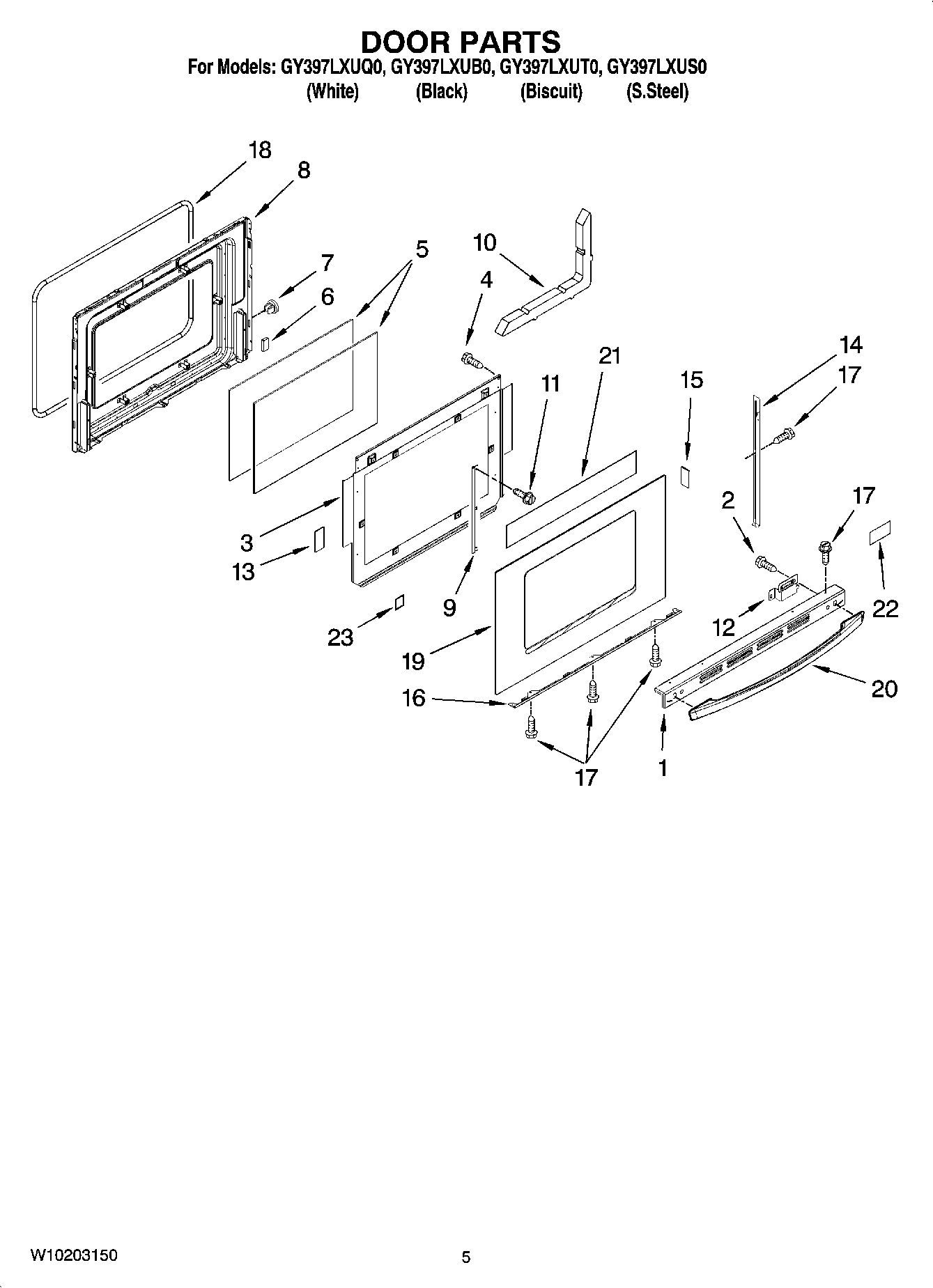

GY397LXUS0 04 – DOOR PARTSadmin2025-04-26T11:24:05+00:00GY397LXUS0 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP3608F141-71 Whirlpool Door Trim |
| 1 | Trim, Door Top (Black) |
| 1 | Trim, Door Top (S.Steel) |
| 1 | Trim, Door Top (Biscuit) |
| 2 | W11396735 Whirlpool Screw |
| 3 | 3601F373-51 Whirlpool Baffle |
| 4 | SCREW |
| 5 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 6 | WP74005546 Whirlpool RU Spacer |
| 7 | WP74001574 Whirlpool Snap Nut |
| 8 | Liner, Door |
| 9 | 3801F886-51 Whirlpool Mounting Bracket |
| 10 | Insulation, Door |
| 11 | WP90767 Whirlpool Screw |
| 12 | 3801F831-45 Whirlpool Bracket Assembly |
| 12 | 3801F832-45 Whirlpool Bracket |
| 13 | Tape, White |
| 14 | WP3608F116-71 Whirlpool Door Trim |
| 14 | Trim, Door Side (Biscuit, Right) |
| 14 | WP3608F117-71 Whirlpool Door Trim |
| 14 | WP3608F117-70 Whirlpool Door Trim |
| 14 | WP3608F116-70 Whirlpool Door Trim |
| 14 | Trim, Door Side (Biscuit, Left) |
| 15 | WP74009025 Whirlpool Double Sided Tape |
| 15 | Tape, Double Sided (White) |
| 16 | WP3807F708-71 Whirlpool Support |
| 16 | Trim, Door Bottom (Black) |
| 16 | Trim, Door Bottom (Biscuit) |
| 17 | WP98008544 Whirlpool Screw Assembly |
| 17 | WP74009541 Whirlpool Screw Assembly |
| 17 | W10828565 Whirlpool Screw |
| 18 | GASKT-DOOR OVEN |
| 19 | Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (S.Steel) |
| 19 | Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Biscuit) |
| 19 | Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black) |
| 19 | Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White) |
| 20 | WPW10144883 Whirlpool Door Handle |
| 20 | W10118431 Whirlpool Door Handle |
| 20 | WPW10118430 Whirlpool Door Handle |
| 20 | WPL W10118432 |
| 21 | WPL 74003664 |
| 22 | Name Plate |
| 23 | WPL 74010267 |
