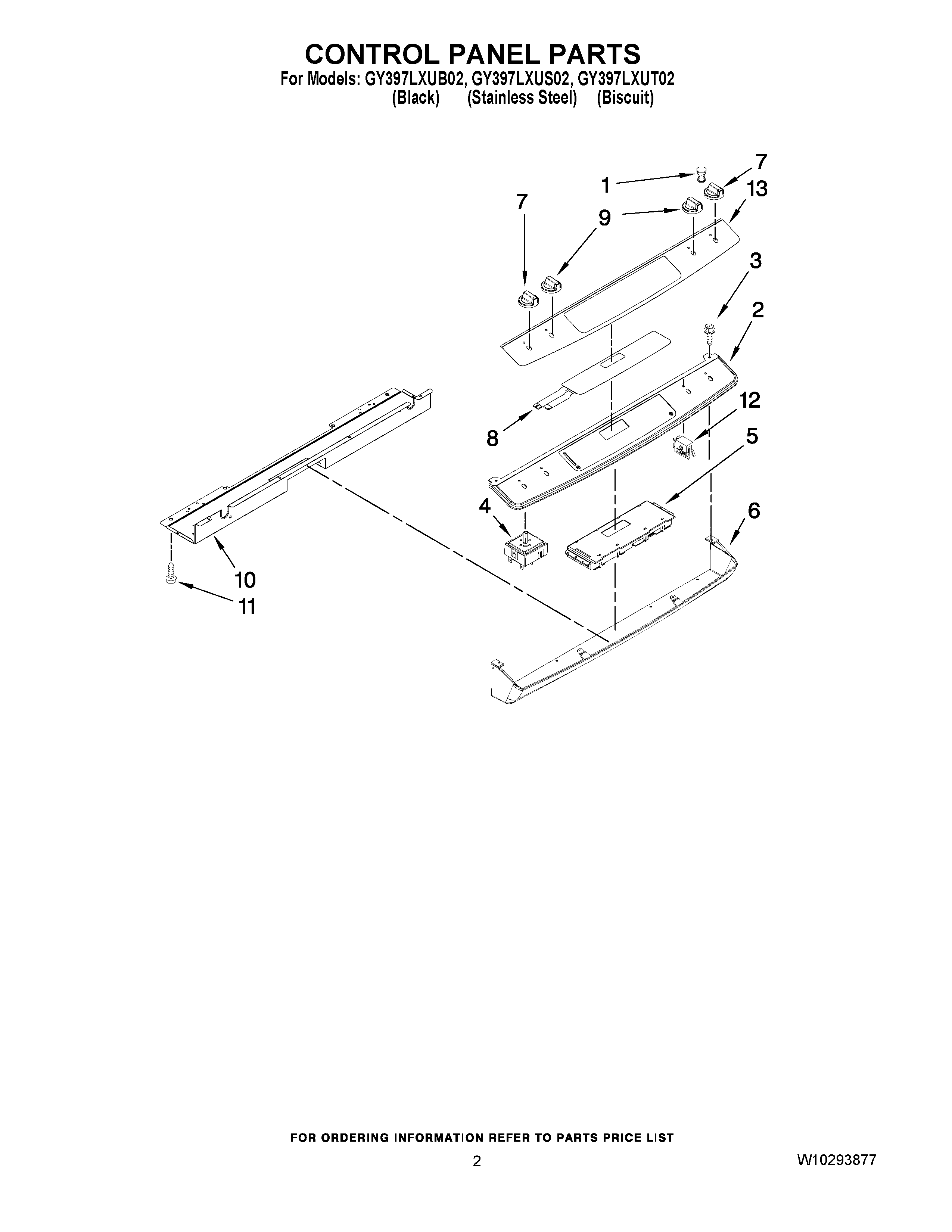

GY397LXUS02 02 – CONTROL PANEL PARTS

Products

Position	Product
1	LENS
2	Panel, Control (S.Steel)
2	Panel, Control (Black)
2	Panel, Control (Biscuit)
3	Screw
4	SWITCH, INFINITE (RIGHT REAR)
4	SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
5	CONTROL
6	PANEL,CONTROL(LWR) (BLACK)
6	PANEL,CONTROL(LWR) (BISCUIT)
7	KNOB (BLACK)
7	KNOB (RF,LR) (BISCUIT)
8	WPW10207932 Whirlpool Membrane Switch
8	WPW10207928 Whirlpool Membrane Switch
9	KNOB (LF,RR) (BISCUIT)
9	KNOB, DUAL (BLACK)
10	SUPPORT, CONTROL PANEL
11	SCREW
12	Light, Indicator
13	OVERLAY STAINLESS MODEL ONLY
