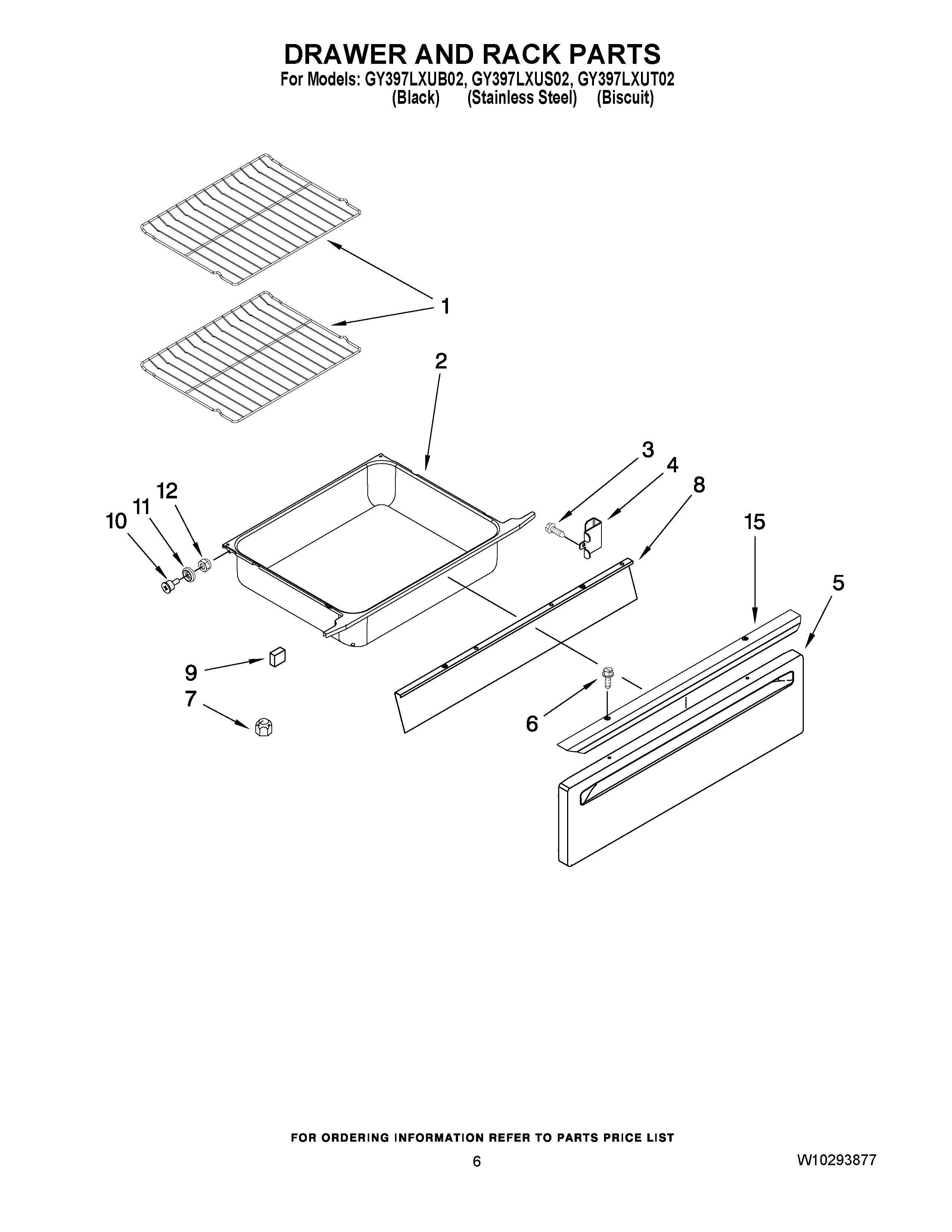

GY397LXUS02 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN
2	Drawer, Storage
3	Screw, Panel
4	Bracket, Drawer
5	PANEL, DRAWER (BISCUIT)
5	PANEL, DRAWER (STAINLESS)
5	Panel, Drawer (Black)
6	Screw, Trim (Biscuit)
6	SCREW, PANEL (STAINLESS)
6	SCREW (BLACK)
7	Nut, Lock
8	Lining, Drawer
9	Spacer, Rubber
10	Roller, Drawer
11	Shaft, Roller
12	Nut
15	HANDLE, DRAWER STAINLESS MODEL
