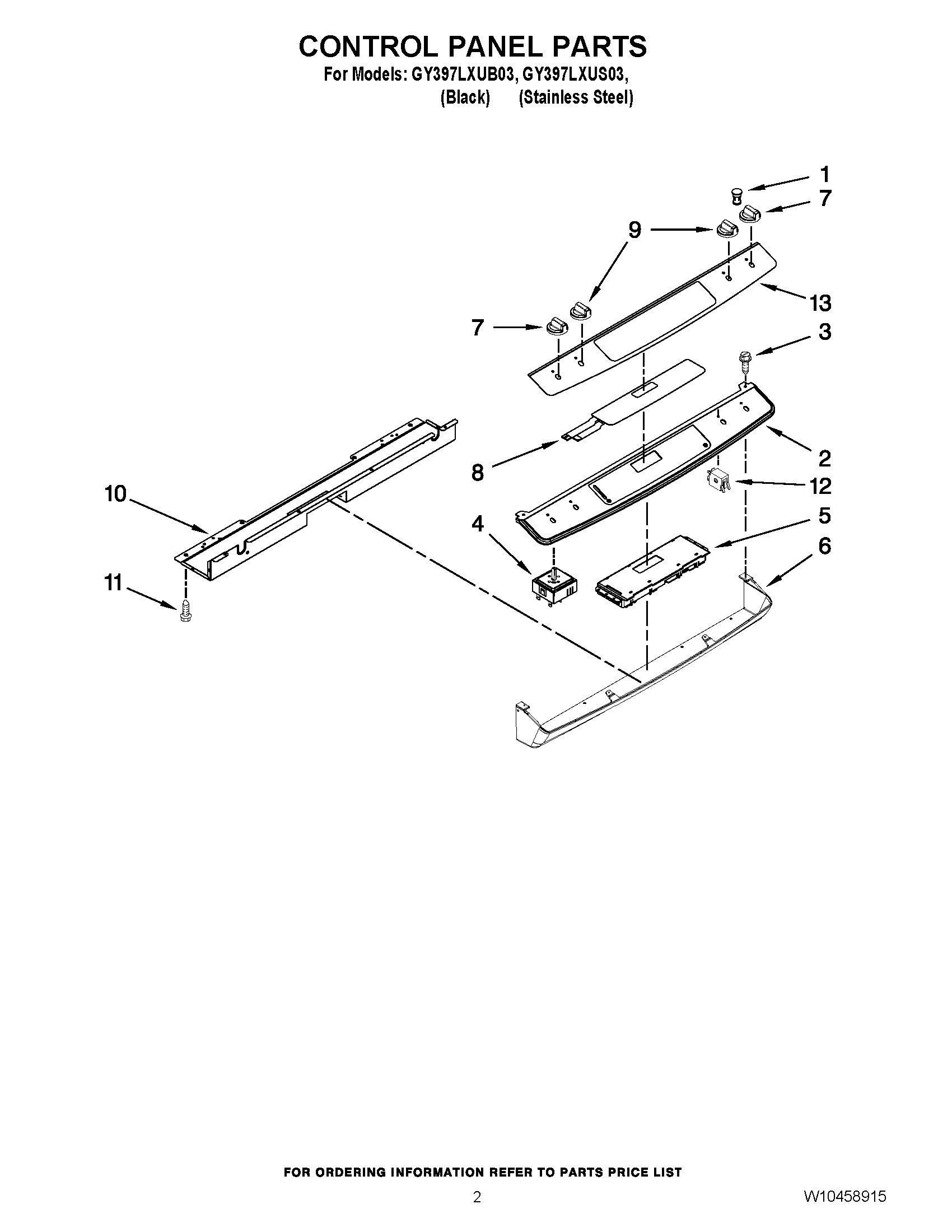

GY397LXUS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
1LENS
2Panel, Control (S.Steel)
2Panel, Control (Black)
3Screw
4WPW10441696 Infinite Switch (Right) Front)
4SWITCH, INFINITE (RIGHT REAR)
5CONTROL
6PANEL,CONTROL(LWR) (BLACK)
7KNOB (BLACK)
8WPW10207928 Whirlpool Membrane Switch
9KNOB, DUAL (BLACK)
9KNOB (LF,RR) (BISCUIT)
10SUPPORT, CONTROL PANEL
11SCREW
12Light, Indicator
13OVERLAY (S.STEEL MDL ONLY)
