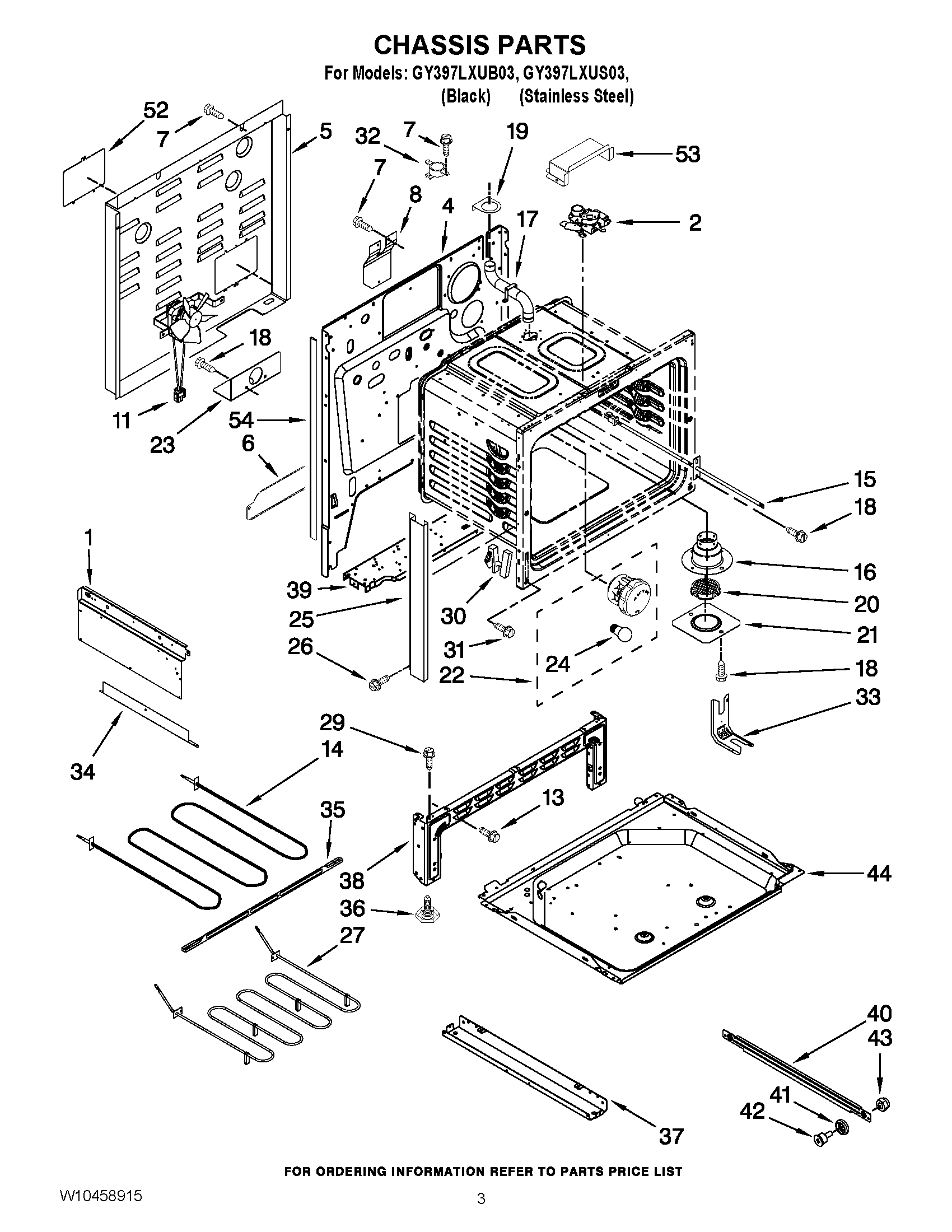

GY397LXUS03 03 – CHASSIS PARTSadmin2025-04-26T11:23:42+00:00GY397LXUS03 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | Insulation, Back |
| NI | Insulation, Wrap |
| 1 | Panel, Shield (Left) |
| 1 | Panel, Shield (Right) |
| 2 | WPW10274035 Whirlpool Door Latch |
| 4 | Main Back |
| 5 | Cover, Main Wire |
| 6 | Extension, Back |
| 8 | Insulator, Cord |
| 11 | WPW10586440 Whirlpool Blower Fan |
| 14 | WP7406P218-60 Whirlpool Broil Element |
| 15 | Sensor, Oven |
| 16 | Tube, Vent Lower |
| 17 | Tube, Vent Upper |
| 18 | SCREW |
| 19 | Holder, Vent Tube |
| 20 | SMOKE ELIMINATOR |
| 21 | PLATE, SMOKE ELM. |
| 22 | Light Assembly |
| 23 | W10190166 Whirlpool Service Bracket |
| 24 | BULB, LIGHT |
| 25 | Trim, Side |
| 27 | WPW10310274 Whirlpool Bake Element |
| 29 | SCREW |
| 30 | HINGE |
| 31 | SCREW, HINGE |
| 32 | LIMIT, OVEN |
| 33 | BRACKET, ANTI TIP |
| 34 | Extention, Shield |
| 35 | Support, Element |
| 36 | Leg, Leveling |
| 37 | Pedestal, Bottom |
| 38 | W10271711 Whirlpool Support Bracket |
| 39 | Support |
| 40 | RUNNER, DRAWER |
| 41 | ROLLER, DRAWER |
| 42 | Shaft, Roller |
| 43 | Nut, Lock |
| 44 | Retainer, Bottom |
| 52 | COVER, TERMINAL |
| 53 | COVER, DOOR LATCH |
| 54 | GUARD, EDGE |
