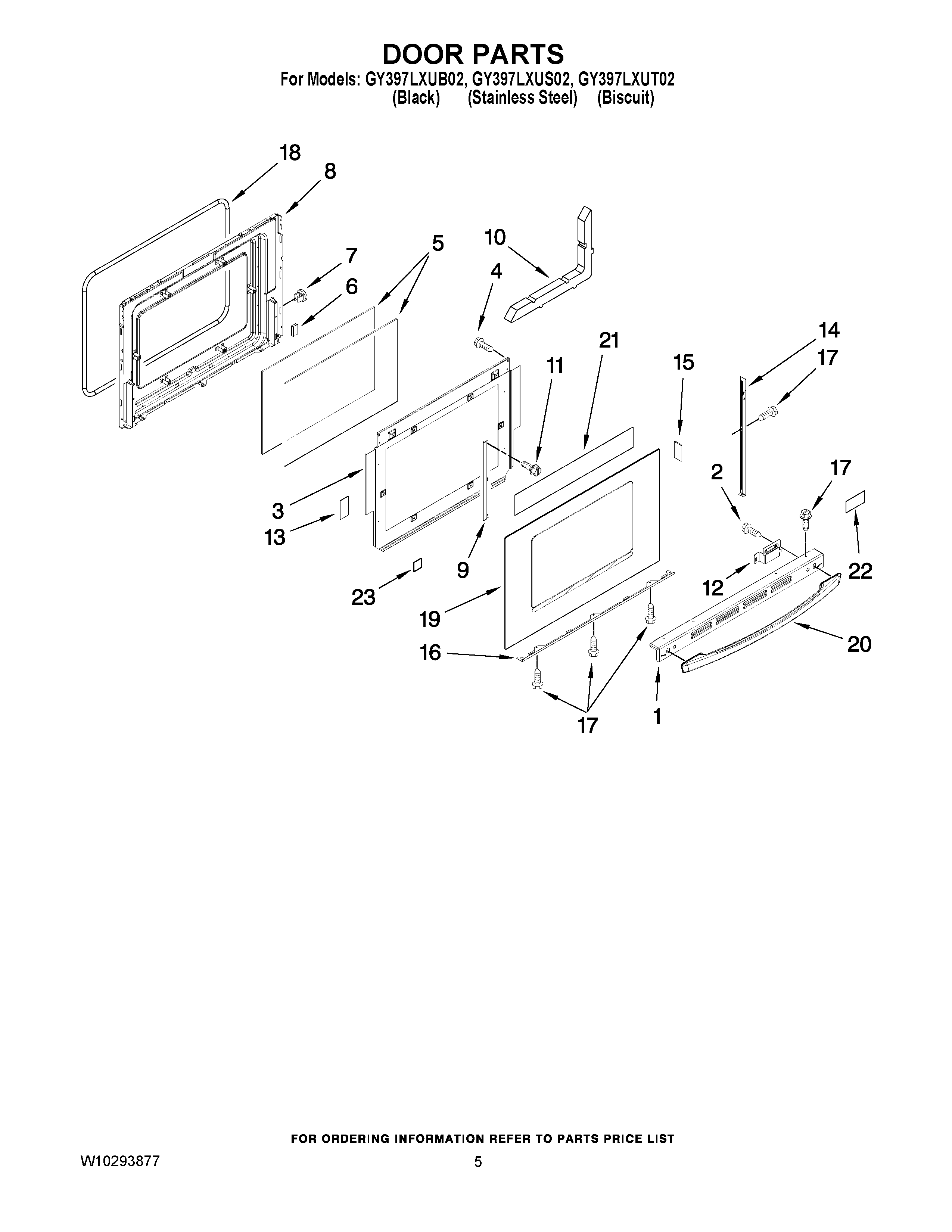

GY397LXUT02 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
1	Trim, Door Top (Biscuit)
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Tape, White
14	Trim, Door Side (Right)
14	Trim, Door Side (Left)
14	Trim, Door Side (Biscuit, Right)
14	Trim, Door Side (Biscuit, Left)
15	TAPE, DOUBLE SIDED
16	Trim, Door Bottom
17	SCREW (BLACK)
17	Screw, Trim (Biscuit)
17	SCREW, PANEL (STAINLESS)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19	PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19	PANEL, OUTER DOOR (BLACK)
20	WPW10144883 Whirlpool Door Handle
20	W10118431 Whirlpool Door Handle
20	WPL W10118432
21	Tape, Foil
22	NAMEPLATE
23	Spacer, Rubber
