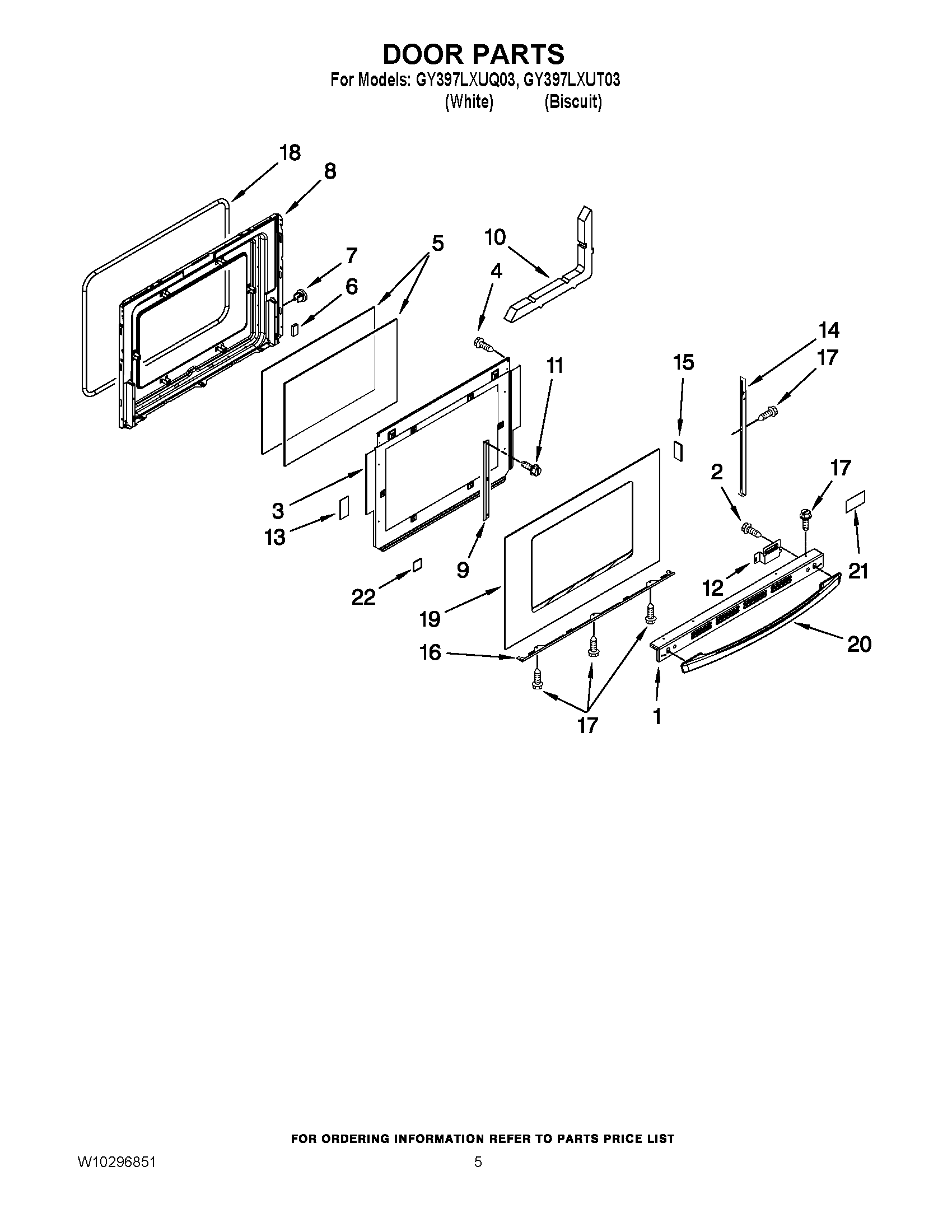

GY397LXUT03 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (Biscuit)
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Tape, White
14	TRIM, DOOR SIDE (BLACK, RIGHT)
14	TRIM, DOOR SIDE (BLACK, LEFT)
14	Trim, Door Side (Biscuit, Right)
14	Trim, Door Side (Biscuit, Left)
15	Tape, Double Sided (White)
16	Trim, Door Bottom
16	Trim, Door Bottom (Biscuit)
17	SCREW (WHITE)
17	Screw, Trim (Biscuit)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19	PANEL, OUTER DOOR
20	WPW10118430 Whirlpool Door Handle
20	WPL W10118432
21	NAMEPLATE
22	Spacer, Rubber
