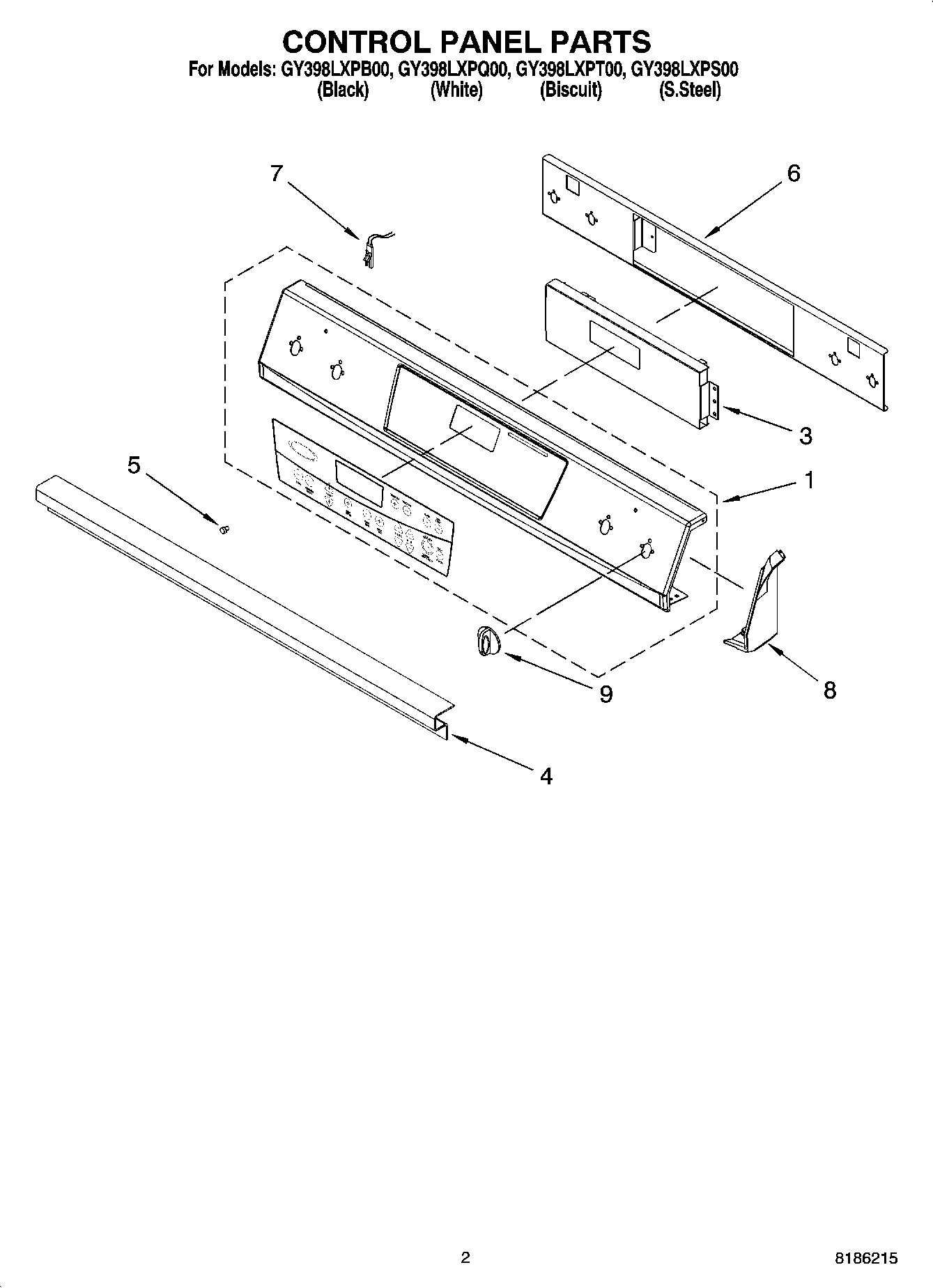

GY398LXPB00 02 – CONTROL PANEL PARTS

GY398LXPB00 02 – CONTROL PANEL PARTS

Written by

in

GY398LXPB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (S.Steel)
1Control Panel (White)
1Control Panel (Black)
1Control Panel (Biscuit)
3Control, Migration
3Screw
4Bracket, Console
4Screw (4)
5WP3196068 Whirlpool Light Lens
6WP486579 Whirlpool Air Conditioner Screw
6WPW10036100 Whirlpool Control Bracket
7WP8523265 Whirlpool Indicator Light
83196172 Whirlpool Oven Screw
8Endcap (Biscuit LH)
8Endcap (Biscuit RH)
8Endcap Left (Black)
8Endcap Right (Black)
8Endcap Right (White)
8Endcap Left (White)
9Knob (White)
9Knob (Black)
9Knob (Biscuit)
