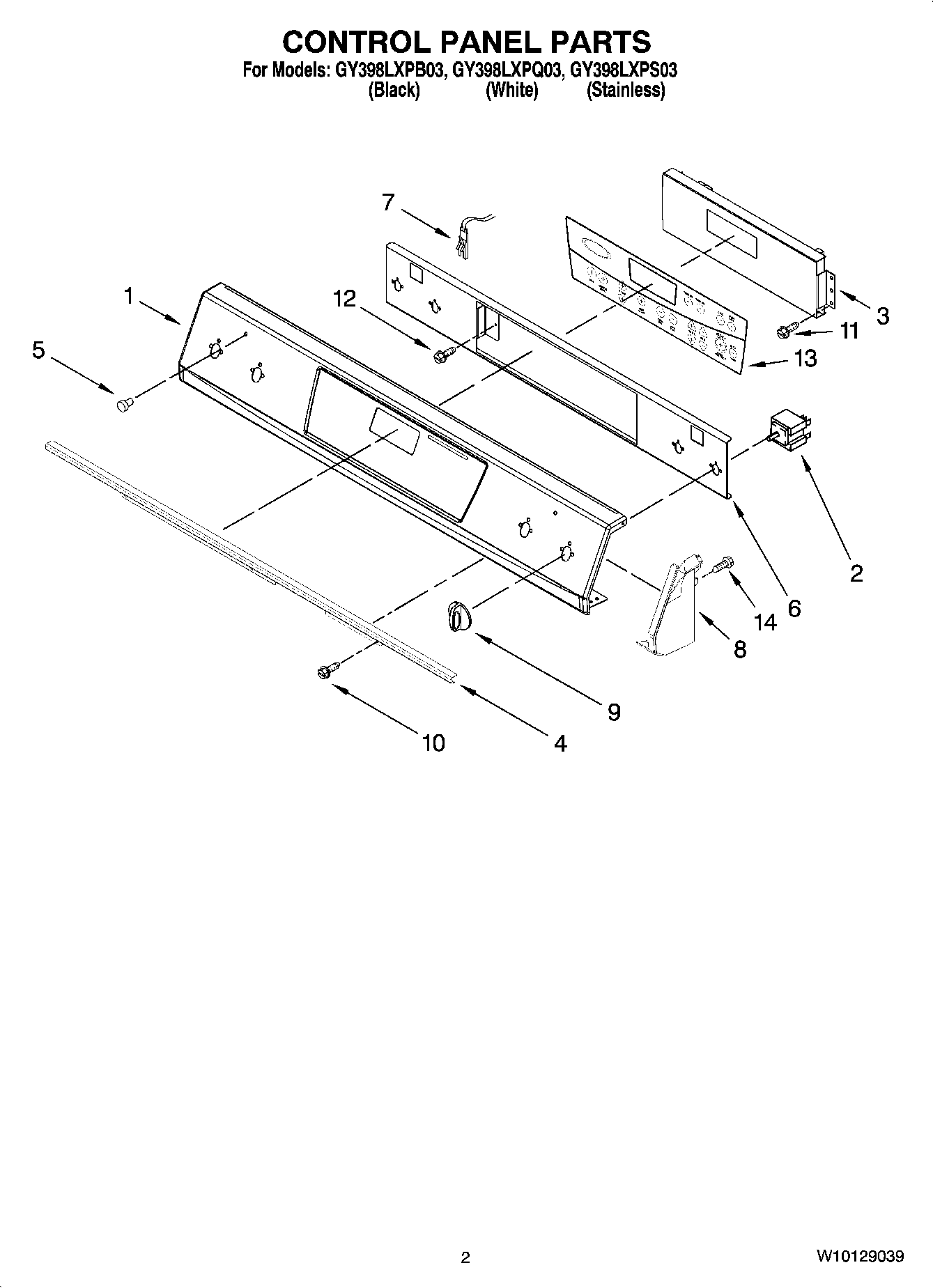

GY398LXPB03 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Stainless)
1	Control Panel (Black)
1	Control Panel (White)
2	WP9750641 Whirlpool Infinite Switch
2	WP9750638 Whirlpool Infinite Switch
2	WP9750639 Whirlpool Infinite Switch
3	Control, Migration
4	Bracket, Console
5	WP3196068 Whirlpool Light Lens
6	WPW10036100 Whirlpool Control Bracket
7	WP8523265 Whirlpool Indicator Light
8	Endcap Left (White)
8	Endcap Left (Black)
8	Endcap Right (White)
8	Endcap Right (Black)
9	Knob (Black)
9	Knob (White)
10	WP3196557 Whirlpool Screw
11	Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	Membrane, Switch Assembly
14	3196172 Whirlpool Oven Screw
