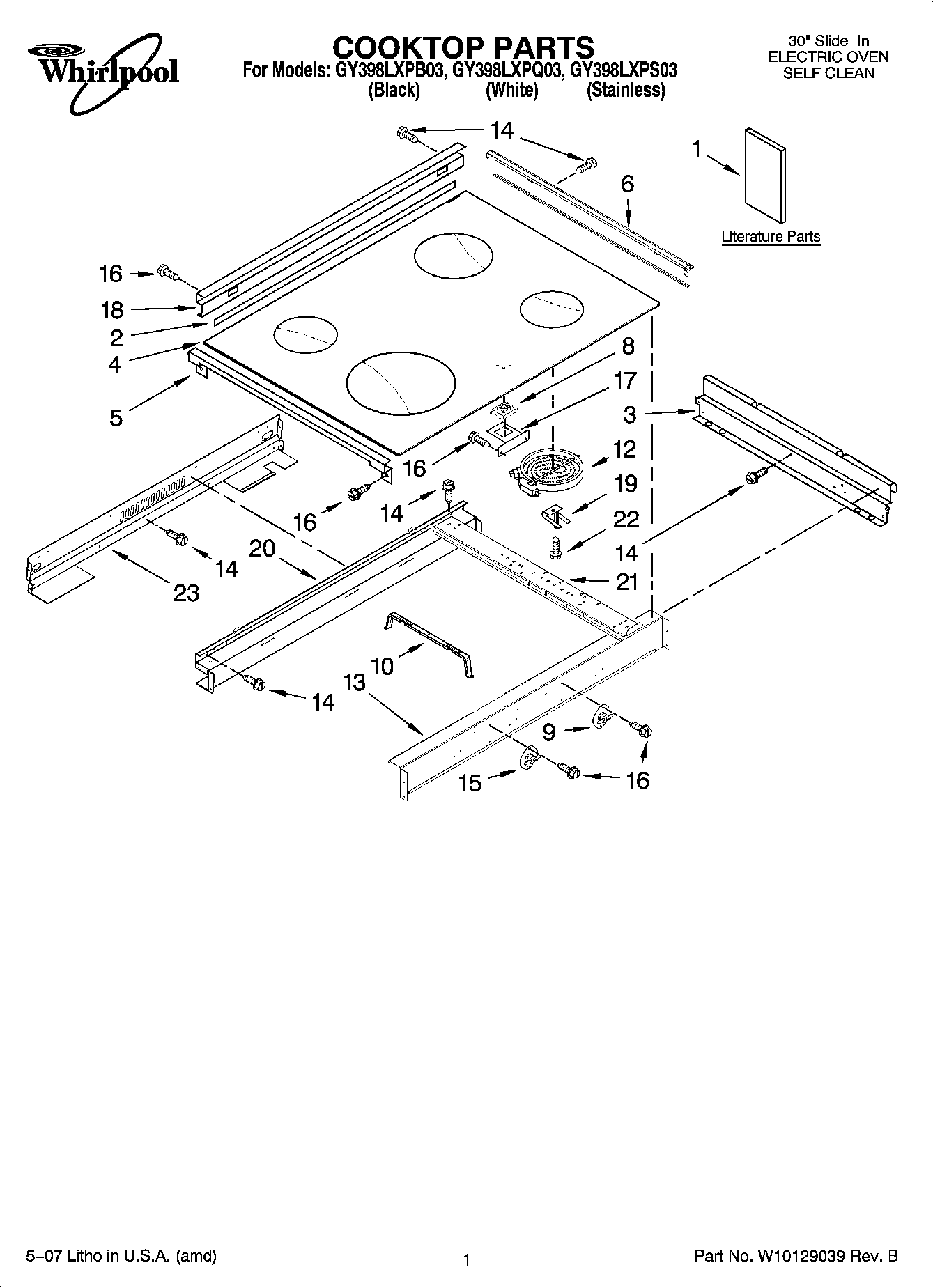

GY398LXPQ03 01 – COOKTOP PARTS
Written by
in
GY398LXPQ03 01 – COOKTOP PARTS
Products
Position
Product
1
Tech Sheet
1
Use & Care Guide (English)
1
Installation Instructions
1
Safe Cooking Tips (French)
1
Anti-Tip Instruct.
1
Safe Cooking Tips
2
Gasket
3
Bracket, Mounting
4
Cooktop (White)
4
WPW10539072 Whirlpool Cooktop
5
Clip, Ceran (2)
6
Trim-CkTop, SI (White RH)
6
Trim-CkTop, SI (Black LH)
6
Trim-CkTop, SI (S.Steel LH)
6
Trim-CkTop, SI (S.Steel RH)
6
Trim-CkTop, SI (White LH)
6
Trim-CkTop, SI (Black RH)
8
Light, Indicator (Hot Surface)
9
WP9759944 Whirlpool Thermostat
10
WP9756821 Whirlpool Support
12
W10823698 Whirlpool Surface Element Right Rear
12
W10823711 Whirlpool Surface Element Left Front and Right Rear
12
W10823696 Whirlpool Radiant Surface Element
13
Bracket, Front Support
14
WP3196557 Whirlpool Screw
15
Thermostat SPST (205)
16
W10491985 Whirlpool Screw
17
Bracket, Ind. Lamp
18
Trim. Cooktop Rear (S.Steel)
18
Trim, Cooktop Rear (Black)
18
Trim, Cooktop Rear (White)
19
9759094 Whirlpool Spring
20
Bracket, Rear Sprt
21
Rail, Element (2) (Side (3))
22
WP486754 Whirlpool Compactor Screw
23
Cover, Cooktop Rear
←
