GY398LXPQ04 02 – CONTROL PANEL PARTS

GY398LXPQ04 02 – CONTROL PANEL PARTS

Written by

in

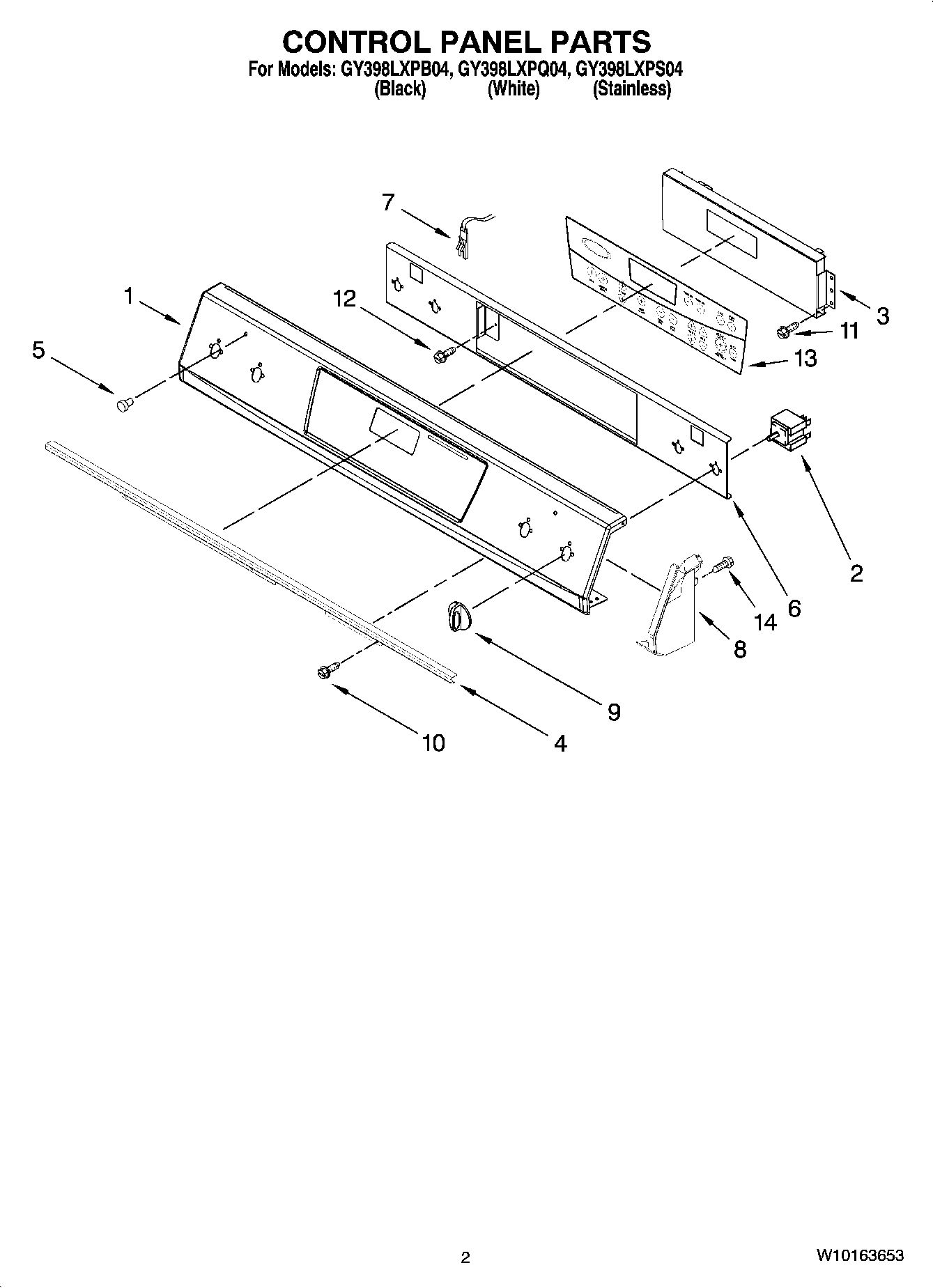

GY398LXPQ04 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Stainless)
1Control Panel (Black)
1Control Panel (White)
2WP9750638 Whirlpool Infinite Switch
2WP9750639 Whirlpool Infinite Switch
2WP9750641 Whirlpool Infinite Switch
3Control, Migration
4Bracket, Console
5WP3196068 Whirlpool Light Lens
6WPW10036100 Whirlpool Control Bracket
7WP8523265 Whirlpool Indicator Light
8Endcap Left (White)
8Endcap Left (Black)
8Endcap Right (White)
8Endcap Right (Black)
9Knob (Black)
9Knob (White)
10WP3196557 Whirlpool Screw
11Screw
123400855 Whirlpool Oven Screw
13Membrane, Switch Assembly
143196172 Whirlpool Oven Screw
