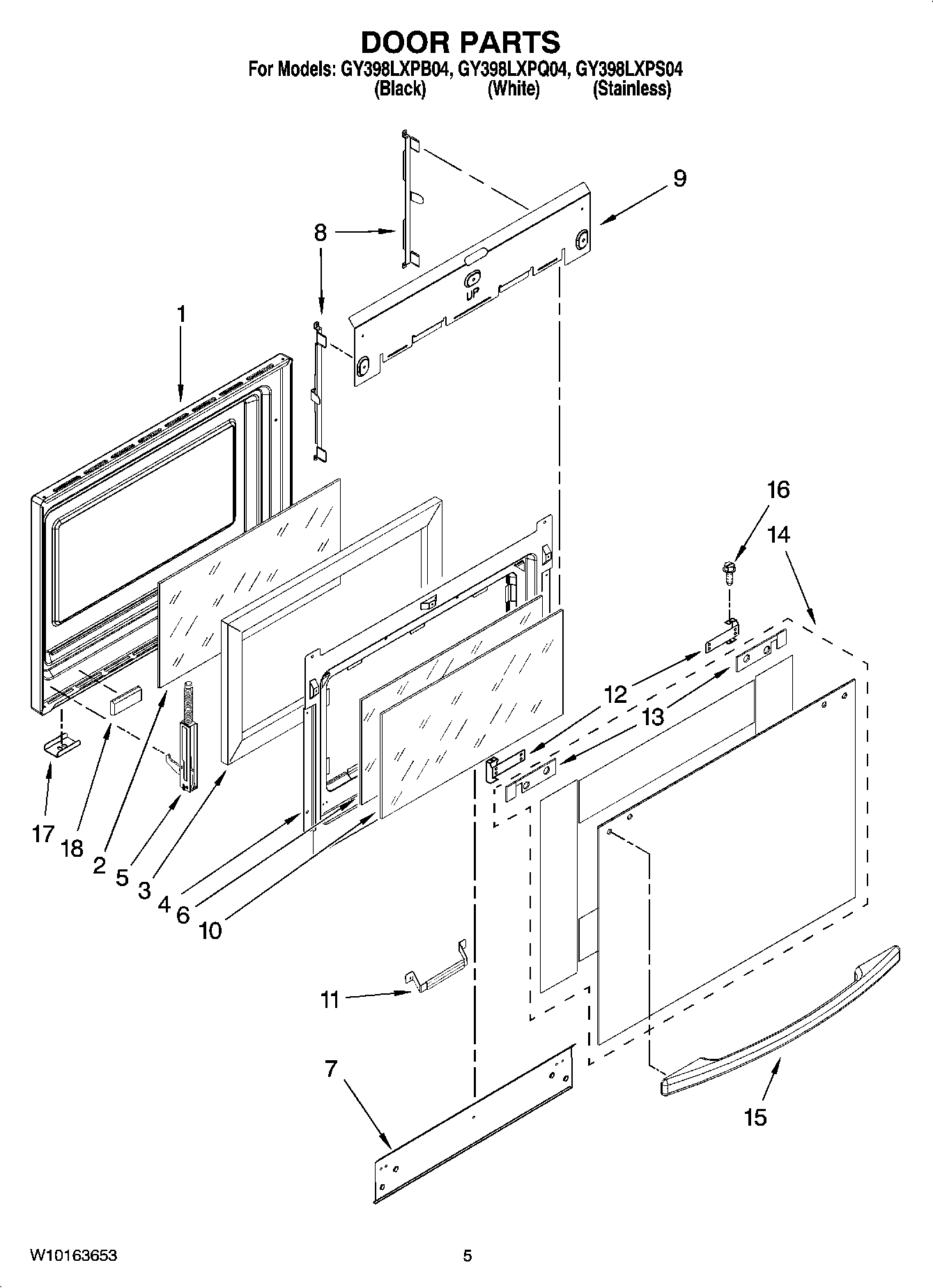

GY398LXPQ04 04 – DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	Hinge, Door (For Stainless Model Only) (Right)
5	WP9760572 Whirlpool Door Hinge
5	WP9760571 Whirlpool Door Hinge
5	HINGE-DOOR LH/SS DOOR SPRING
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	Shield, Heat
10	WP9759225 Whirlpool Inner Door Glass
11	Bracket (3rd Glsss)
12	Bracket, Handle
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Pad, Handle (Left)
13	Pad, Handle (Right)
13	Pad, Handle Stainless (Left)
13	Pad, Handle Stainless (Right)
14	WP9759641 Whirlpool Outer Door Glass
14	WP9759074 Whirlpool Outer Door Glass
14	Assembly, Door Kit (White)
15	Door Handle (White Model)
15	Door Handle (Black Model)
16	Screw
17	Clip, Retainer (Black Model)
17	Retainer, Glass Clip (Stainless)
18	Spacer, Glass
