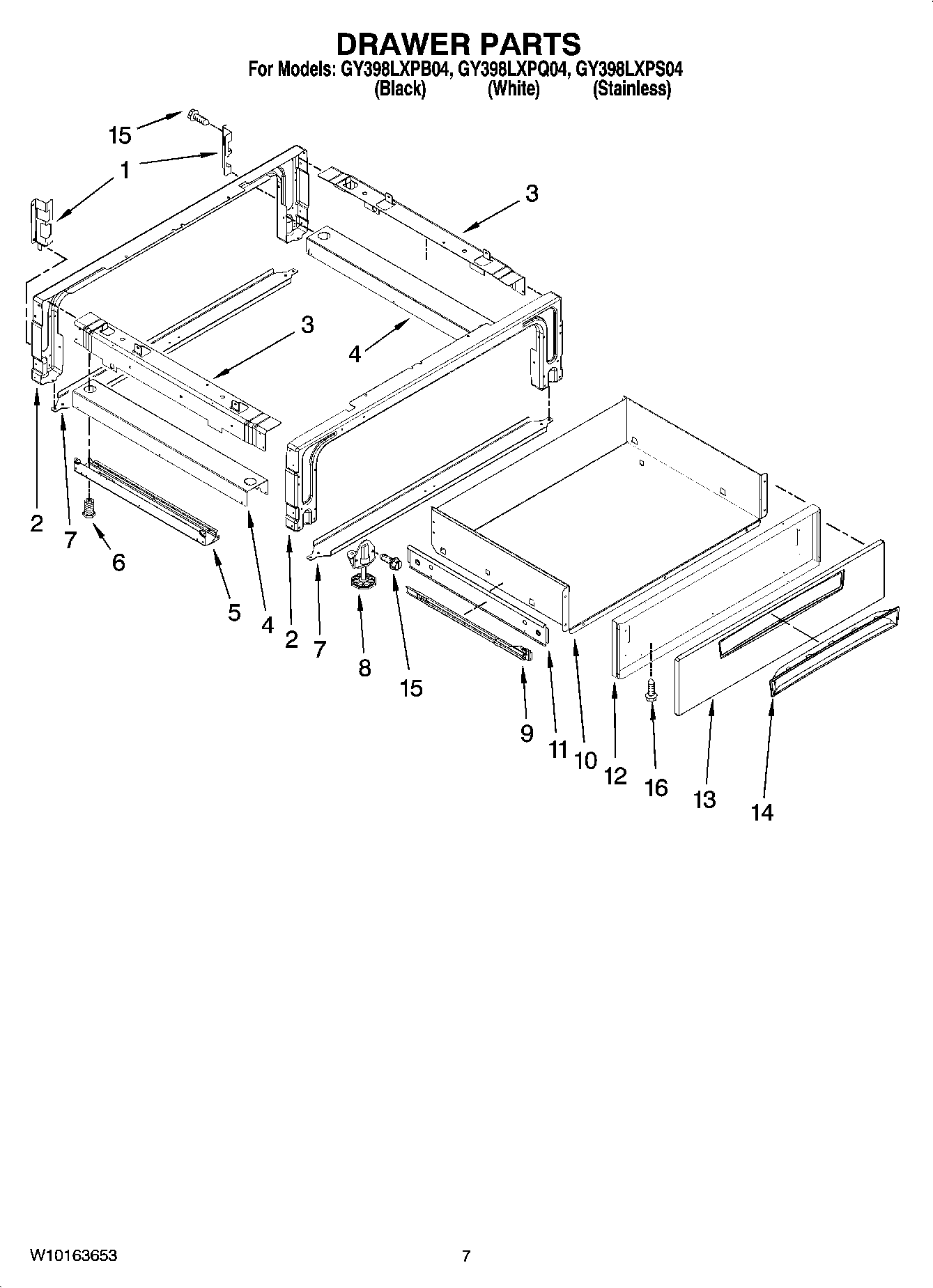

GY398LXPQ04 05 – DRAWER PARTSadmin2025-04-26T11:24:57+00:00GY398LXPQ04 05 – DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | Support (R.Hand) |
| 1 | Support (L.Hand) |
| 2 | Support, Front & Rear |
| 3 | Brace, Drawer (Left) |
| 3 | Brace, Drawer (Right) |
| 4 | Bracket, Base |
| 5 | Side, Base (L.Side) |
| 5 | Side, Base (R.Side) |
| 6 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 7 | Brace, Base Front |
| 8 | WP3196037 Whirlpool Leveling Foot |
| 9 | Drawer Slide (Left) |
| 9 | Drawer Slide (Right) |
| 10 | Drawer |
| 11 | Guide, Roller Includes Roller (Right) |
| 11 | Guide, Roller Includes Roller (Left) |
| 12 | Panel, Drawer |
| 13 | Front, Drawer (Black) |
| 13 | Front, Drawer (White) |
| 13 | Front, Drawer (Stainless) |
| 14 | Handle, Drawer (Black) |
| 14 | Handle, Drawer (White) |
| 15 | WP3196557 Whirlpool Screw |
| 16 | WP3400805 Whirlpool Screw Assembly |
