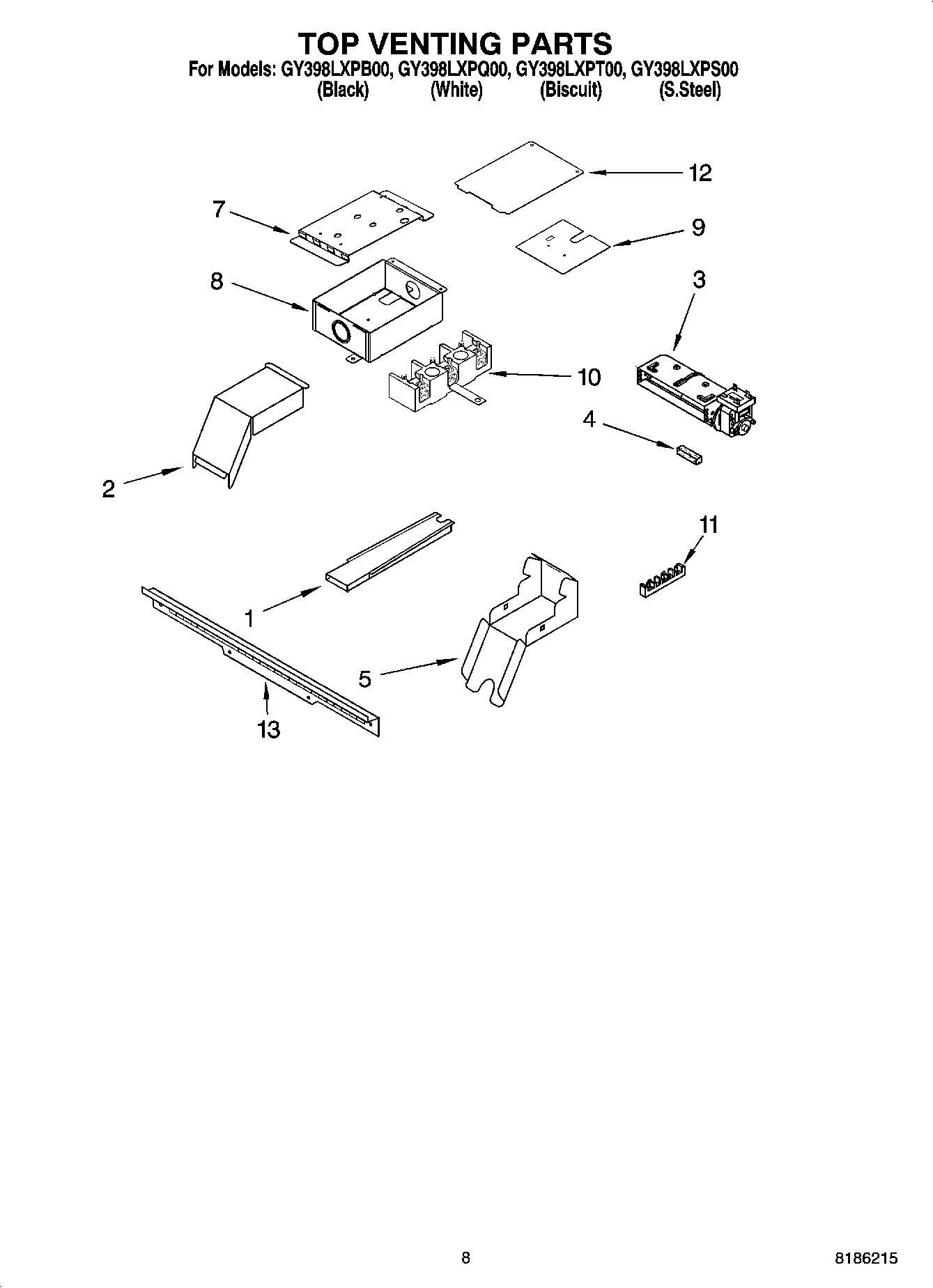

GY398LXPS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

GY398LXPS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GY398LXPS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI74997A6
261900 Whirlpool Microwave Spray
W11244557 Whirlpool Screw
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
W10113901A Whirlpool Fill Kit
W10113902A Whirlpool Fill Kit Assembly
WPL ARI74996A3
WPL ARI74995A1
WPL ARI74994A7
WPL ARI74993A6
WPL 9759840
Filler, Counter Top Biscuit
Harness, Wire (Cooktop Right)
Harness, Wire (Cooktop Power)
Harness, Wire (Cooktop Left)
W10113903A Whirlpool Range Filler Kit
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
WP482338 Whirlpool Refrigerator Adhesive
WP112432 Whirlpool Nut Assembly
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
350930 Whirlpool White Spray Paint
Wire, 25“ Roll (White 14 GA.)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Conduit
Spacer, Harness
Clip, Ground Wire
WP4448950 Whirlpool Screw
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
1Screw
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
7Bracket, Term.Box
8W10115858 Whirlpool Box Terminal
99759721 Whirlpool Oven Insulator
10WP9761958 Whirlpool Range Terminal Block
11Screw
11WP8203546 Whirlpool Terminal Block
12Cover, Term Box
12W10491985 Whirlpool Screw
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
