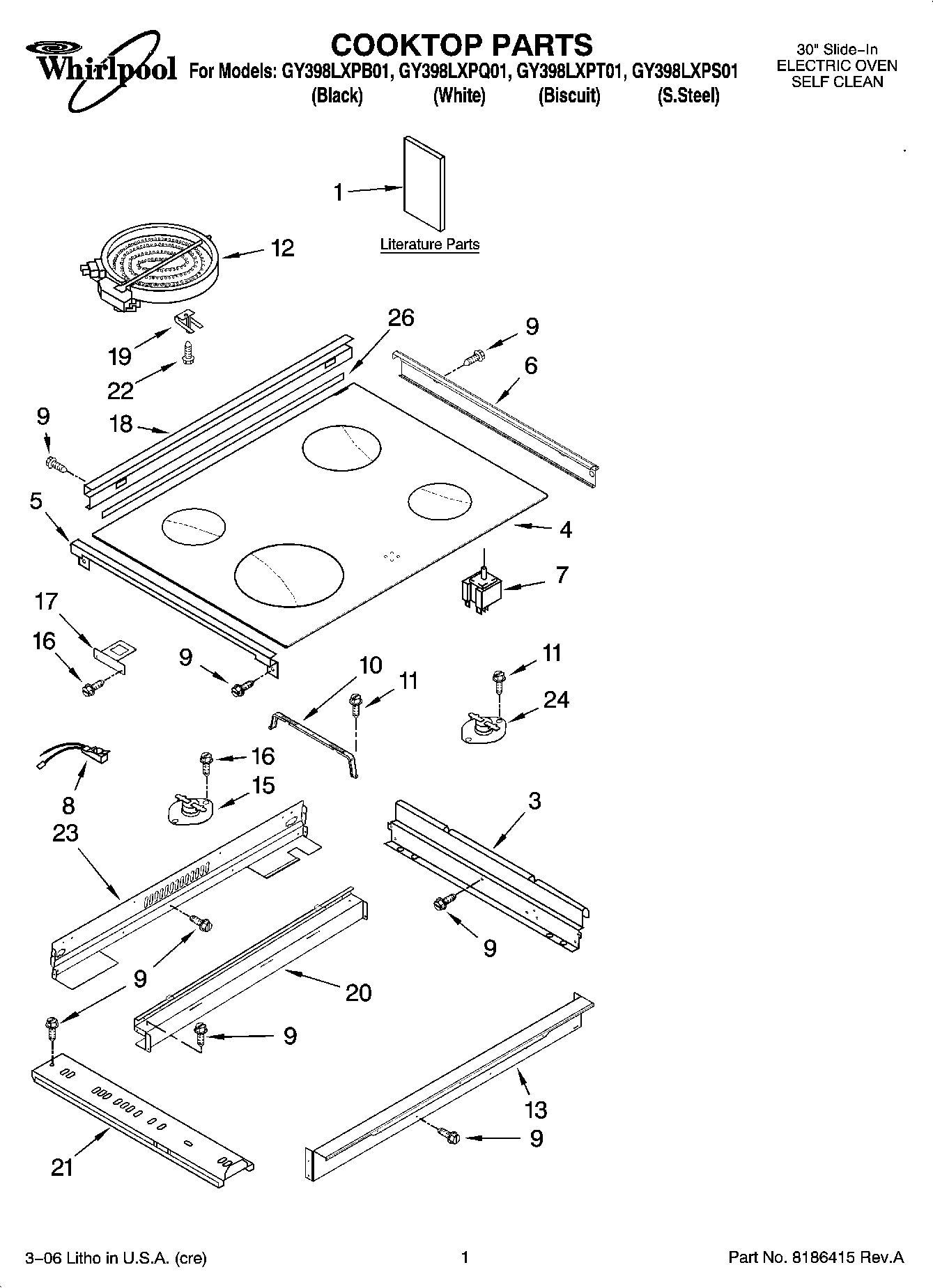

GY398LXPS01 01 – COOKTOP PARTS

GY398LXPS01 01 – COOKTOP PARTS

Written by

in

GY398LXPS01 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Tech Sheet
1Safe Cooking Tips
1Anti-Tip Instruct.
1Use & Care Guide (English)
1Installation Instructions
3Bracket, Mounting
4Cooktop (Biscuit)
4Cooktop (White)
4WPW10539072 Whirlpool Cooktop
5Clip, Ceran (2)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (Biscuit RH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (Black LH)
7WP9750639 Whirlpool Infinite Switch
7WP9750641 Whirlpool Infinite Switch
7WP9750638 Whirlpool Infinite Switch
8Light, Indicator (Hot Surface)
9WP3196557 Whirlpool Screw
10WP9756821 Whirlpool Support
11WP4449809 Whirlpool Screw
12W10823698 Whirlpool Surface Element Right Rear
12W10823696 Whirlpool Radiant Surface Element
12W10823711 Whirlpool Surface Element Left Front and Right Rear
13Bracket, Front Support
15WP9759944 Whirlpool Thermostat
16W10491985 Whirlpool Screw
17Bracket, Ind. Lamp
18Trim, Cooktop Rear (Biscuit)
18Trim, Cooktop Rear (Black)
18Trim, Cooktop Rear (White)
18Trim. Cooktop Rear (S.Steel)
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (2) (Side (3))
22WP486754 Whirlpool Compactor Screw
23Cover, Cooktop Rear
24WP9759243 Whirlpool Thermostat
26Gasket
