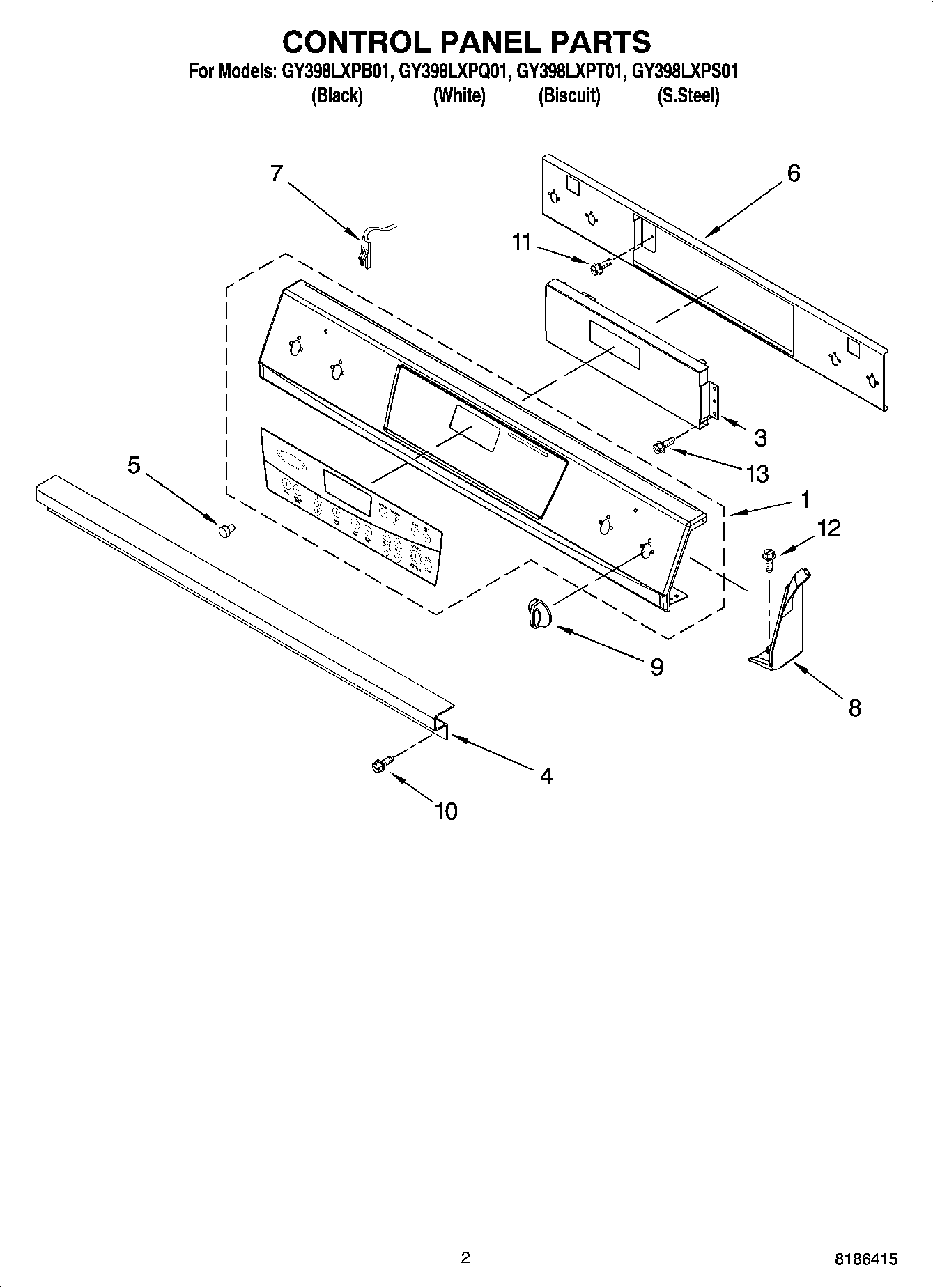

GY398LXPS01 02 – CONTROL PANEL PARTS

GY398LXPS01 02 – CONTROL PANEL PARTS

Written by

in

GY398LXPS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (S.Steel)
1Control Panel (Black)
1Control Panel (White)
1Control Panel (Biscuit)
3Control, Migration
4Bracket, Console
5WP3196068 Whirlpool Light Lens
6WPW10036100 Whirlpool Control Bracket
7WP8523265 Whirlpool Indicator Light
8Endcap (Biscuit LH)
8Endcap (Biscuit RH)
8Endcap Left (White)
8Endcap Left (Black)
8Endcap Right (White)
8Endcap Right (Black)
9Knob (Black)
9Knob (White)
9Knob (Biscuit)
10WP3196557 Whirlpool Screw
11WP486579 Whirlpool Air Conditioner Screw
123196172 Whirlpool Oven Screw
13Screw
