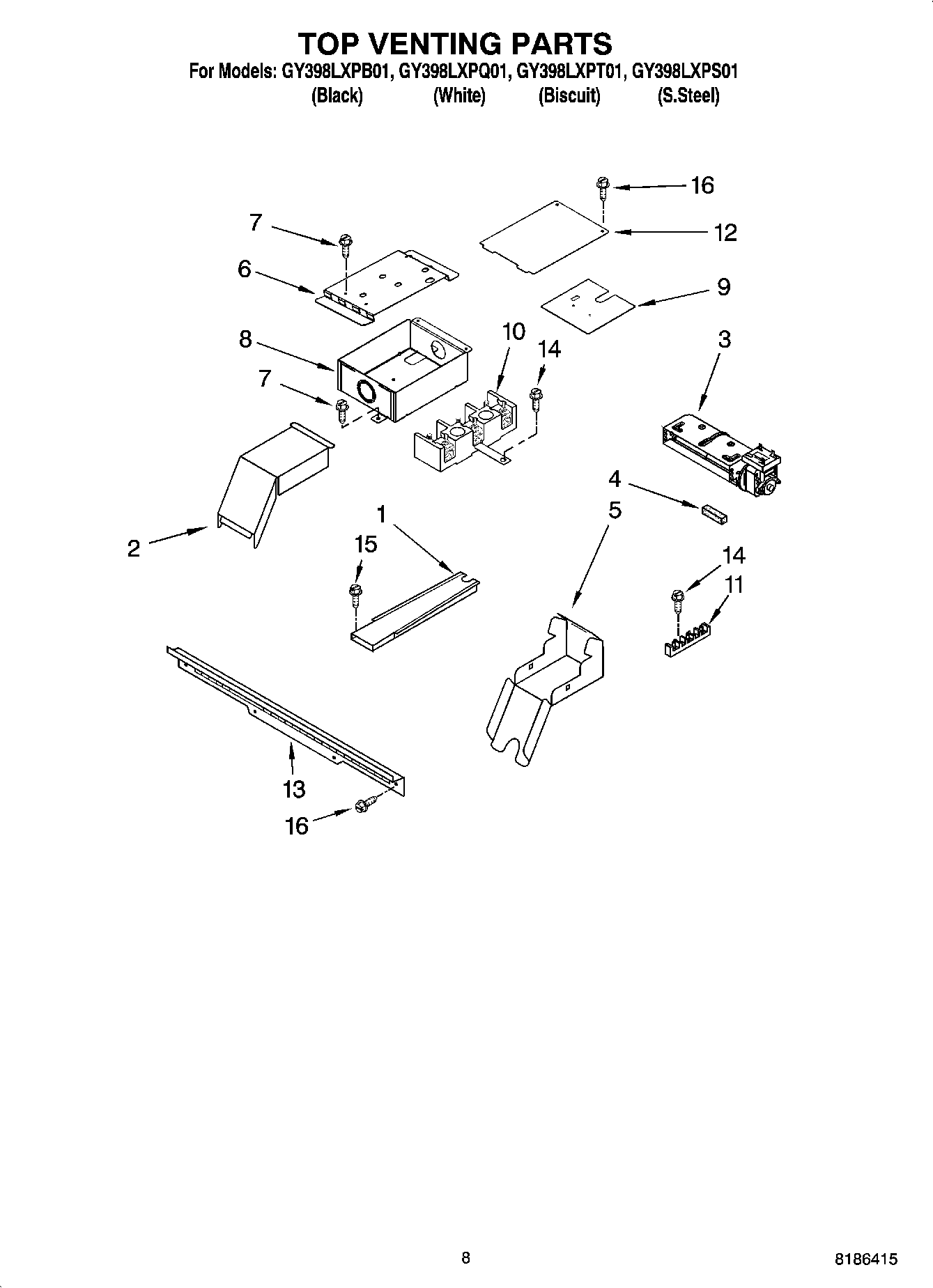

GY398LXPS01 06 – TOP VENTING PARTS, OPTIONAL PARTS

GY398LXPS01 06 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GY398LXPS01 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI75003A9
WPL ARI75004A2
W11244557 Whirlpool Screw
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
261900 Whirlpool Microwave Spray
W10113901A Whirlpool Fill Kit
WPL ARI75002A3
WPL ARI75001A4
WPL ARI75000A2
Harness, Wire (Main)
Filler, Counter Top Biscuit
Harness, Wire (Cooktop Right)
Harness, Wire (Cooktop Power)
Harness, Wire (Cooktop Left)
W10113903A Whirlpool Range Filler Kit
W10113902A Whirlpool Fill Kit Assembly
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
W11447673 Whirlpool Range Tip Anchor
WP4448950 Whirlpool Screw
Spacer, Harness
814381 Whirlpool Pin
Clip, Ground Wire
Conduit
242831 Whirlpool Oven Wire
WP261869 Whirlpool Microwave Paint
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6Bracket, Term.Box
8W10115858 Whirlpool Box Terminal
99759721 Whirlpool Oven Insulator
10WP9761958 Whirlpool Range Terminal Block
11WP8203546 Whirlpool Terminal Block
12Cover, Term Box
13Vent, (Control Panel)
14Screw
15Screw
16W10491985 Whirlpool Screw
