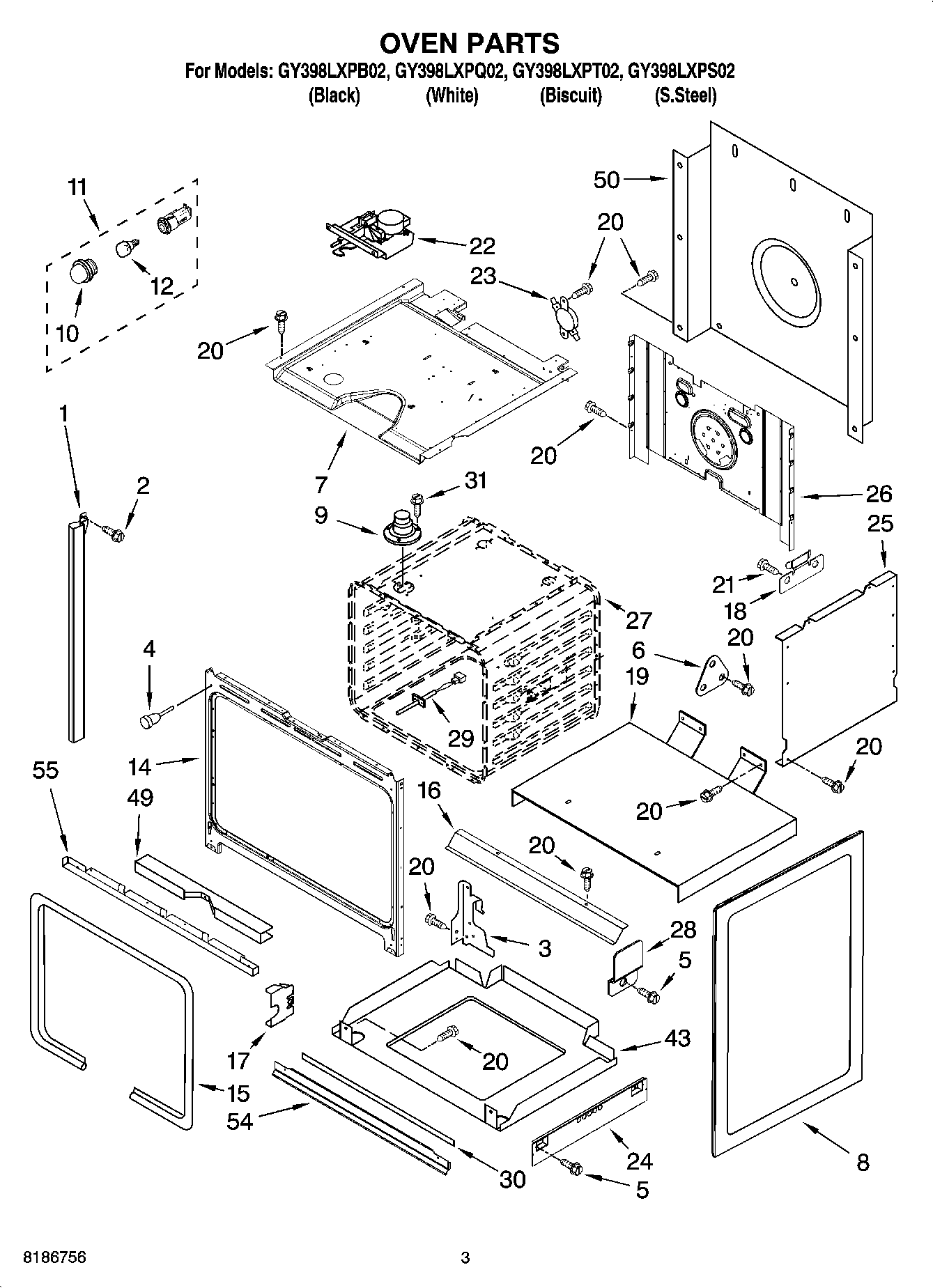

GY398LXPS02 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side Left (Black)
1Trim, Side Left (Stainless)
1Trim, Side Left (White)
1Trim, Side Right (Stainless)
1Trim, Side Right (White)
1Trim, Side Right (Black)
1Trim, Side (Right Hand) (Biscuit)
1Trim, Side (Left Hand) (Biscuit)
2WP3400832 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WP3196557 Whirlpool Screw
6BRACKET,SIDE PANEL
7Top Chassis
8Body, Side (White)
8Body, Side (Biscuit)
8BODY, SIDE BLACK
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20WP4449809 Whirlpool Screw
21W10491985 Whirlpool Screw
22WP9760889 Whirlpool Door Latch
23Thermostat SPST (205)
24Brace, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Clip, Side Panel
29WPW10131825 Whirlpool Oven Temperature Sensor
30Insulation, Bottom Vent
31SCREW
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
54Vent, Bottom Upper (Black)
54Vent, Bottom Upper (Biscuit)
54Ve
54Vent, Bottom Upper (S. Steel)
55WPL 9756470
55WPL 9756485BL
55WPL 9756485BT
55WPL 9756485SS
55WPL 9756485WH
55WPL 9756817
55WPL ARI75006A2
