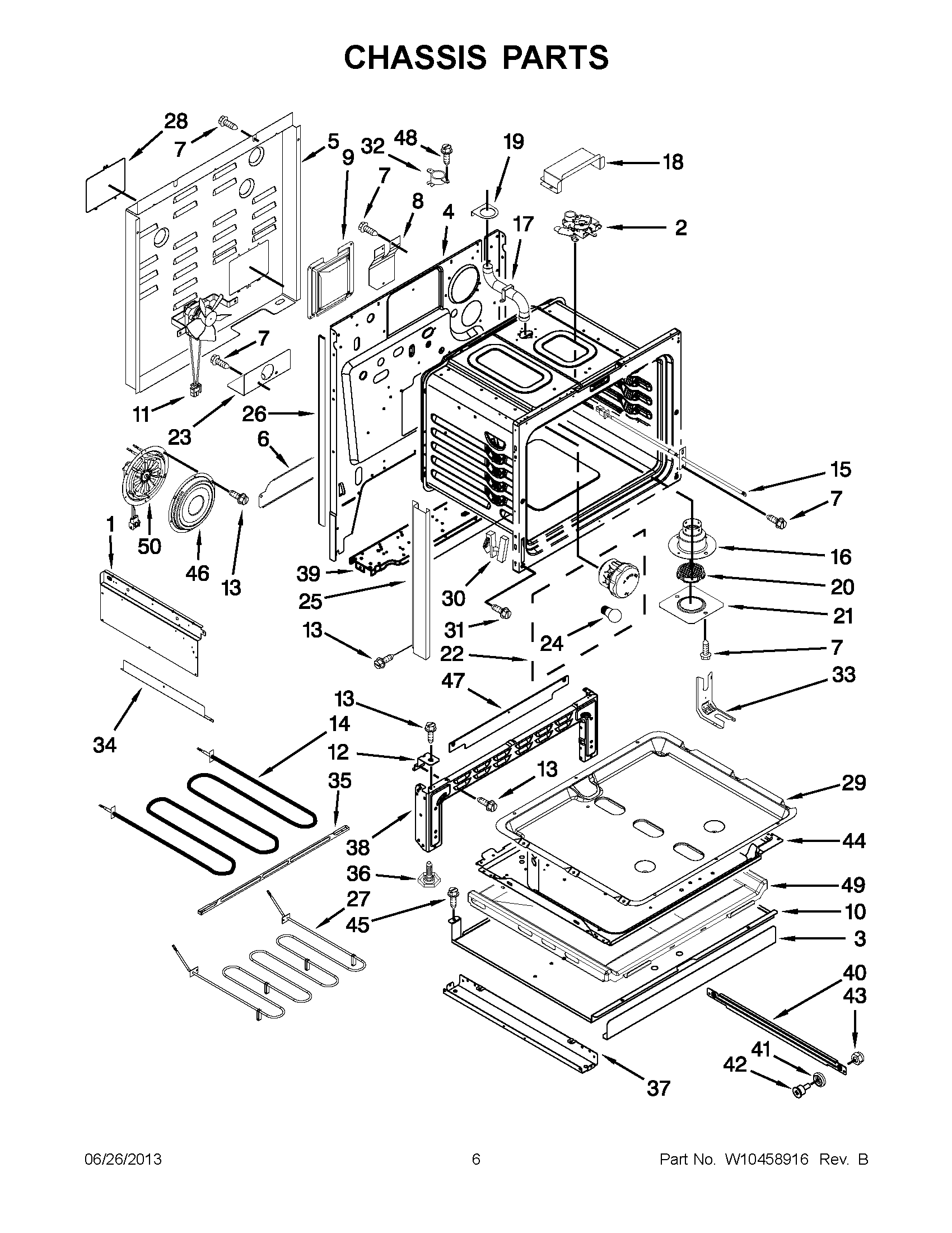

GY399LXUB03 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
NI	INSULATION, OVEN BOTTOM
1	Panel, Shield (Left)
1	Panel, Shield (Right)
2	WPW10274035 Whirlpool Door Latch
3	COVER, FRONT
4	Main Back
5	Cover, Main Wire
6	Extension, Back
7	SCREW
8	Insulator, Cord
9	RETAINER, INSUL.
10	SHIELD, WARMER
11	WPW10586440 Whirlpool Blower Fan
12	SUPPORT,OVEN BTM
13	SCREW
14	WP7406P218-60 Whirlpool Broil Element
15	Sensor, Oven
16	Tube, Vent Lower
17	TUBE, VENT UPPER
18	COVER, DOOR LATCH
19	Holder, Vent Tube
20	SMOKE ELIMINATOR
21	PLATE, SMOKE ELM.
22	Light Assembly
23	W10190166 Whirlpool Service Bracket
24	BULB, LIGHT
25	Trim, Side
26	GUARD, EDGE
27	WP7406P411-60 Whirlpool Bake Element
28	COVER, TERMINAL
29	PAN, HIDDEN BAKE
30	HINGE
31	SCREW, HINGE
32	LIMIT, OVEN
33	BRACKET, ANTI TIP
34	Extention, Shield
35	Support, Element
36	Leg, Leveling
37	Pedestal, Bottom
38	W10271711 Whirlpool Support Bracket
39	Support
40	RUNNER, DRAWER
41	ROLLER, DRAWER
42	Shaft, Roller
43	Nut, Lock
44	Retainer, Bottom
45	Screw, Panel
46	COVER,CONV.FAN
47	TRIM, FRONT
48	SCREW (BLACK)
49	BOTTOM, OVEN
50	FAN, CONVECT
