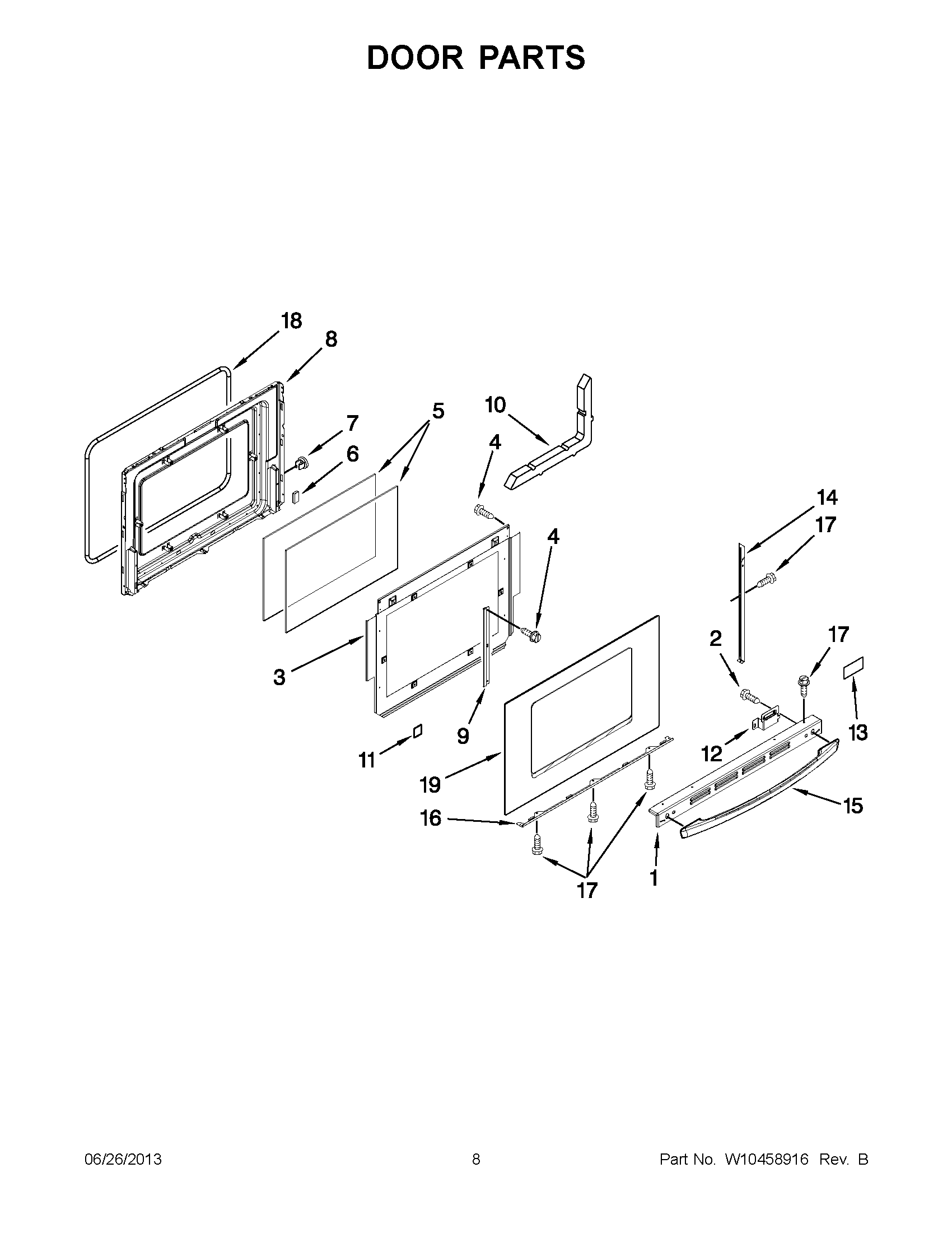

GY399LXUB03 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	SCREW
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	Spacer, Rubber
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	NAMEPLATE
13	W11178521 Whirlpool Dishwasher Nameplate
14	Trim, Door Side (Right)
14	Trim, Door Side (Left)
15	WPW10144883 Whirlpool Door Handle
15	W10118431 Whirlpool Door Handle
16	Trim, Door Bottom
17	SCREW, PANEL (STAINLESS)
17	SCREW (BLACK)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19	PANEL, OUTER DOOR (BLACK)
